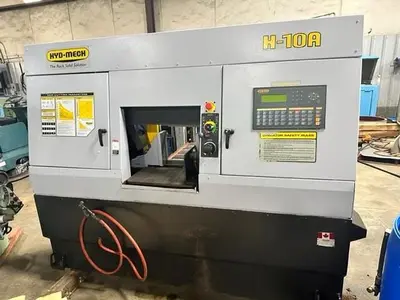

USED 2007 HYDMECH H10A
Overview
Description
10" Automatic Band Saw
Power Down Feed
Chip Conveyor
Saw in a Box Design
Specifications
Capacity Rectangular 90 Degrees: 10" x 10"
Capacity Round 90 Degrees: 10"
Capacity Square 90 Degrees: 10" x 10"
Round Capacity 45 Degrees: NA
Rectangle Capacity 45 Degrees: NA
Round Capacity 60 Degrees: NA
Rectangle Capacity 60 Degrees: NA
Table Height: 31"
Maximum Work Load: 5000 lbs
Blade Size: 1-1/4" x 12'6" x .042
Blade Speed: 50-350 sfm
Blade Guides: Carbide
Blade Wheel Diameter: 16"
Guide Arm: AUto (vise Driven) Mounted on linear bearings
Blade Drive Motor: 5 hp
Hydruaulic Drive Motor: 1 hp
Hydraulic tank capacity: 4 gallon
Coolant Tank Capacity: 15 gallon
System Pressure: 435 psi
Vise Control: Hydraulic full stroke
Shuttle Stroke: 0-24" single stroke, multi-index capability
Discharge Table: 10"
Machine Weight: 3500 lbs
Overall Dimensions: 83" wide x 68" long x 67" high
