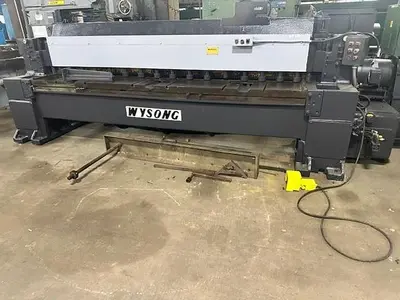

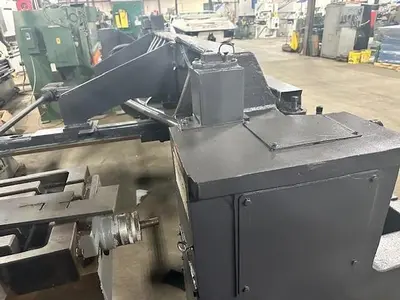

USED WYSONG 1025

1/4" X 10' WYSONG POWER SQUARING SHEAR, MODEL 1025

CAPACITY - MILD STEEL ................. 1/4"
     - STAINLESS STEEL ............ 7 GA.
CUTTING LENGTH ........................ 120"
RAKE OF UPPER BLADE ................... 3/8"
NO. HOLD-DOWN FEET .................... 16
T-SLOTS IN BED ........................ 6
MOTOR ................................. 15 HP, 1800 RPM
STROKES PER MINUTE .................... 55 SPM
FLOOR SPACE/INCHES (WITHOUT GAUGES) ... 60" X 197"
FLOOR SPACE/INCHES (WITH GAUGES) ...... 104" X 197"
OVERALL HEIGHT ........................ 61"
SHIPPING WEIGHT ....................... 19,700#

Capacity: 10' X .250 Mild 7ga Stainless
Blade length: 122"
Strokes per Minute: 55
Table height: 34.5"
Front Support Arm: 24"
Blade Rake: 3/8
Motor HP: 15 HP, 220V 3 Phase 440V/,\ 3 Phase
Shipping weight: 19,850 LBS
Dimensions (w x l x h): 104" x 197" x 65" (with back gauge and squaring arm)
