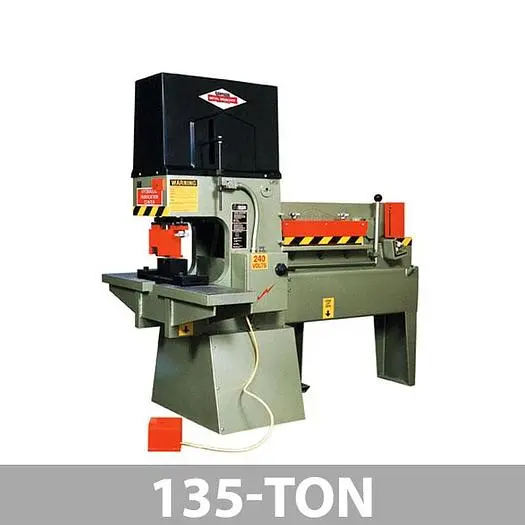

NEW METAL MUNCHER MM135

Series MM135 Complete 5-Station Fabrication Center
Kalamazoo Metal Muncher has earned a spot at the top with over 50 years of excellent performance and durability. While others made claims, Kalamazoo Metal Muncher units were busy proving themselves where it really counts . . . on the workshop floor. The many years of on-the-job experience have resulted in design improvement and operating features that assure maximum productive performance and operator safety. No other ironworker offers the smooth, trouble-free performance that has made Kalamazoo Metal Muncher the hallmark of the industry.

Two-Cylinder / Two Person Operation
The punch and shear end may be operated separately, independently, and simultaneously at full capacity and full speed.
The MM-Series Fabrication Center includes:

Punch Press
Flat Bar/Plate Shear
Coper
Notcher
Angle Shear
Optional Round and Square Shear

Kalamazoo Metal Muncher Features

Adjustable stroke length up to 9″
Up to 3″ ram size . . . Easily adapts to accept over-size / special tooling
Easy to change punch and die holder. Die block easily removed to accept unlimited accessories
Swing-away stripper gives ready access to the ram stem and makes punch changing quick and easy
Standard large table gives the user an ideal work area and accepts up to a 48″ breakset and large special tooling
All workstations are approximately the same height, for ease in material handling
Press cylinder is foot pedal activated (Rear electric foot control for shear end available)
Includes complete electrics . . . 220/440v. standard. Other voltages available at additional cost by request.
Comes complete with hydraulic oil; ready to operate. Lubrication points are marked and easily accessible.

Special Capacity Optional Feature

Hy-performance blade to increase flat bar shearing capacity
Speed-up kit increases ram speed on press and shear end cylinder
Adjustable tonnage control feature available

Features differ on 40-ton models.

Punching capacity: 135 Tons
Depth of Throat: 14"
Punch Travel: 7"
Punch Work Height: 30"
Coping/notching: 3" x 3" x 3/8"
Angle Shear: 4" x 4" x 3/8"
Flat Shear: 1/4" x 24" to 1" x 7"
