Delivery:
Stock, Subject to Prior Sale
Terms:
Net before Shipment
F.O.B.:
Little Rock, Arkansas
Load Meter, Fine Feeds, Spark-out Timer, Power Rapid Traverse, Hand Wheel
For Manual Downfeed, Central Lube System, Coolant System.
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.

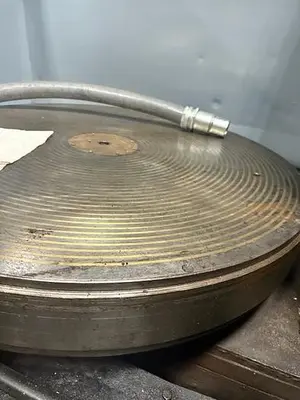

Magnetic chuck diameter: 42"
Swing inside coolant guards: 48"
Vertical capacity: 24"
Chuck rotation variable speed: 6-28 RPM
Grinding wheel size: 24"
Grinding wheel speed: 705 RPM
Feed rate, variable: .005-.165" IPM
Spindle motor: 75 HP volt 480/3/60
Approximate machine dimensions: 168" x 110"x112"h
Approximate machine weight: 22,000 lbs
