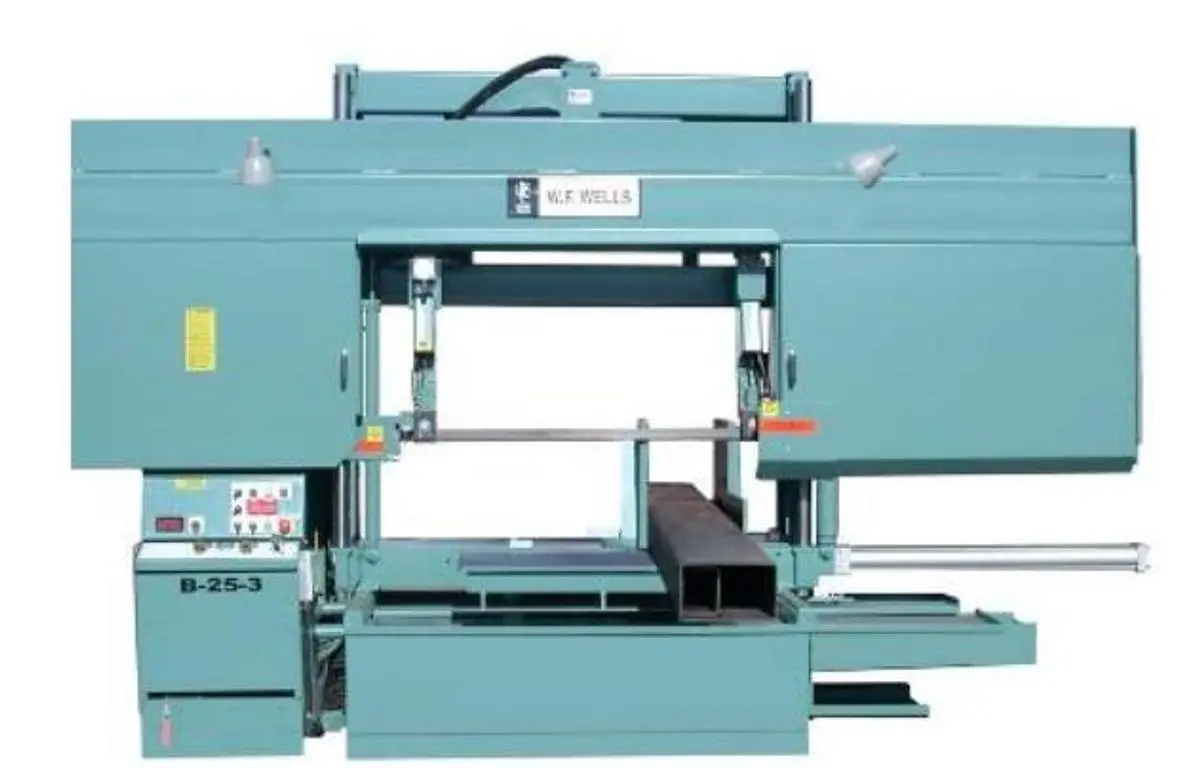

USED W. F. WELLS B-25-3

STANDARD EQUIPMENT
 2” Bi-Metal Blade
 AC Vector Drive
-Spring Loaded Carbide Guides
-Hydraulic Vise Operation
-Hydraulic Blade Tension
-Semi-Automatic Operation
-Built-In Coolant System
-45° Swiveling Vise
-Hydraulic Powered Blade Brush
-TEFC Motors
-Fused Disconnect with Lock-Out
-Blade Break/Stall Switch
-Console Controlled Blade Speed
-Feed Pressure Monitor/Regulator
-Low Voltage/Overload Protection
-Electronic Door Safety Interlocks
-Work Lights
-Hydraulic Positioned Guide Arm
-All Safety Guards
-Operator Manual and Parts List
-Blade Tension Indicator

* Specifications subject to change without notice

Capacity Rectangular at 90: 25" High X 40" Wide
Capacity Rectangular at 45: 25" High X 24" Wide
Capacity Round: 25.5"
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2" X .063" X 26' - 6"
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26''
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 28''
Outfeed Table: 24'' x 40''
Vise Jaw Height: 17''
Shipping Weight: 7,000 lbs
Machine Dimensions: 170” Length x 55" Width x 105" Height
