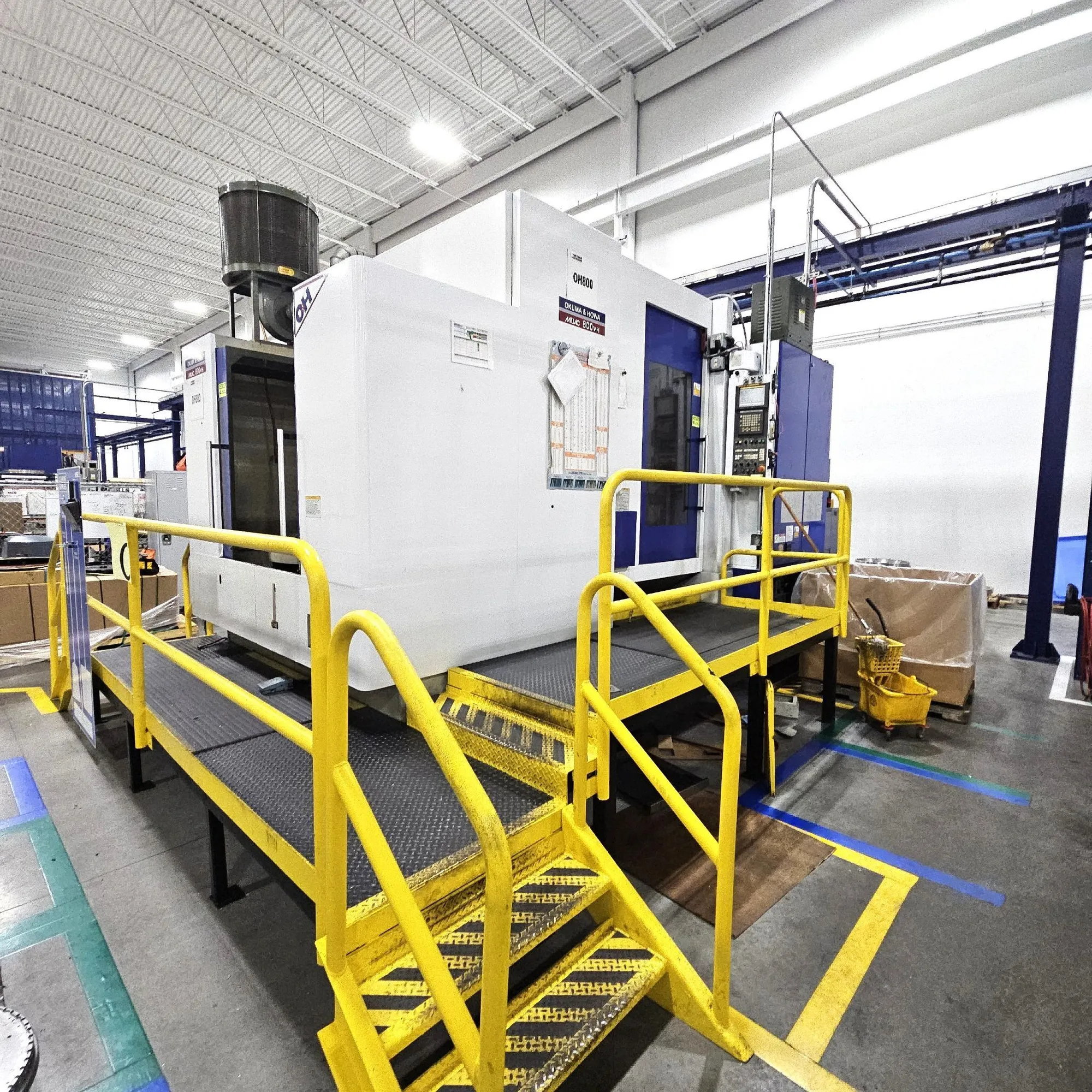

USED 2007 OKUMA & HOWA 800 VH
Overview
Description
2007 Okuma & Howa 800-VH 5-Axis Vertical - Horizontal Tilting Head 5-Axis Machining Center with Fanuc Control & Drives, 10,000 RPM's, Chip Blaster 1000 PSI Thru Spindle Coolant System with All Options
Main Specifications:
Table Dimensions 31.49" x 31.49
Max Table Load 3,300 Lbs.
X-Axis Travels 39.37"
Y-Axis Travels 39.37"
Z-Axis Travels 1.96" - 41.33"
Cat 50 Taper
Spindle RMS's 20-10,000
ATC 30 Tools
Full Factory Jpeg Specifications
Features on 5-Axis Capabilities
* More Photos in Process & Under Power Videos
Sincerely,
Mark Murphy
www.murphymachinery.com
[email protected]
Specifications
| # Axis | 5 | 5 |
|---|---|---|
| Swing | 40.16" | 1,020.1 mm |
| Machining Length | 40.16" | 1,020.1 mm |
| Chuck Size | 31.493" | 799.92 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 10,000 RPM | 10,000 RPM |
| Turning Dia | 40.16" | 1,020.1 mm |
| Tailstock | 'No' | 'No' |
| Control | CNC (FANUC 18iMB) | CNC (FANUC 18iMB) |
| Dimensions | Width 12.22" Ft. x Lenght 16.04 x Height 13.07 Ft. | Width 12.22" Ft. x Lenght 16.04 x Height 13.07 Ft. |
| Weight | 39,600 Lbs. | 39,600 Lbs. |
Okuma & Howa 800-VH 5-Axis Vertical Tilting Head Machining Center with Fanuc Control & Drives
Table Dimensions 31.49" x 31.49
Max Table Load 3,300 Lbs.
X-Axis Travels 39.37"
Y-Axis Travels 39.37"
Z-Axis Travels 1.96" - 41.33"
Cat 50 Taper
Spindle RMS's 20-4000
ATC 30 Tools
1000 PSI High Pressure Coolant System
Renishaw Probe Software w/ Transducer
Note: Probe Not Included.!
More Details in Process and on Request.!
I thank you for your review and consideration.
