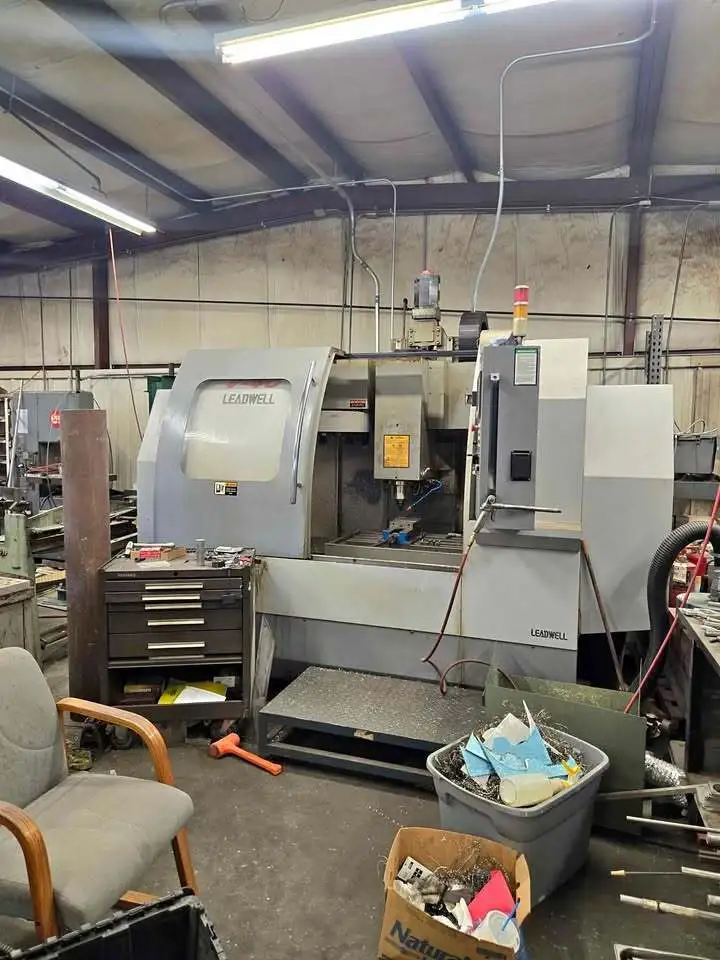

USED 2005 LEADWELL V-40

Leadwell V-40 CNC Vertical Machining Center

TABLE/WORK SUPPORT
Table Size L x W (in.) 35.000 x 19.700
Max. Workpiece Weight (lbs) 1,100
AXES AND TRAVELS
Travel Max Feed Rapid Rate
X1 Std. 31.400 in. 197 ipm 787 ipm
Y1 Std. 20.000 in. 197 ipm 787 ipm
Z1 Std. 20.000 in. 197 ipm 590 ipm
B Std. 360.000 deg
Spindle Nose To Table (Max) 26.400
Spindle Nose To Table (Min) 6.300
Spindle Center To Column 20.200
SPINDLE(S)
Num. Main Spindles 1
Orientation Vertical
Taper # 40
Top RPM 7,000
Horse Power (30 min rating) 24.80
# Speed Ranges 1
Type Fixed
TOOLING
Primary Tool Carrier(s) ATC
Number of Tools 10
Tool Change Time C-to-C (sec) 13.00 7.50 sec tool-to-tool
Max. Tool Length (in.) 9.800
Max. Tool Diameter (in.) 3.700 (with empty adacent pockets)
Max. Tool Weight 15.00
