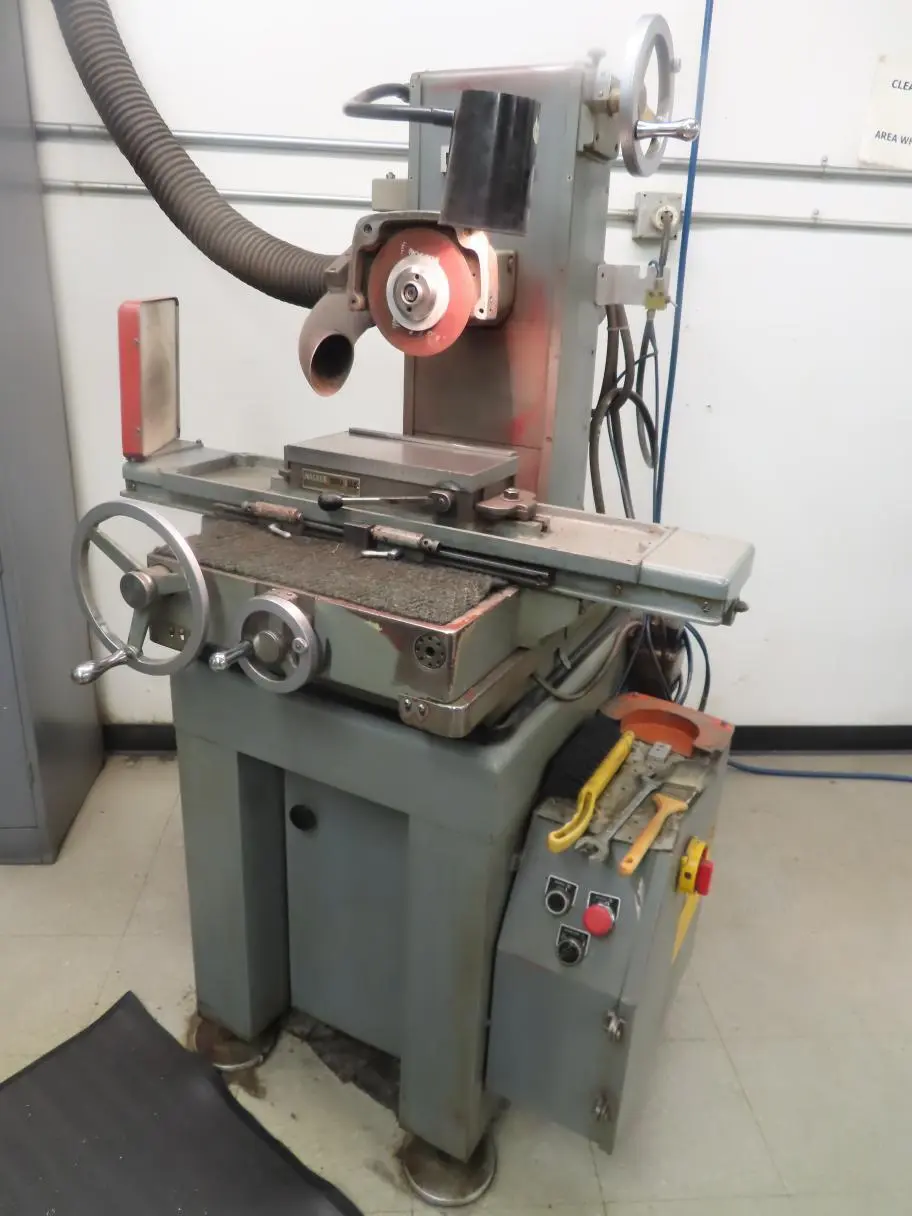

Manual Surface Grinder
Manufacturer: DoAll
Model: G-612M
DOM: 1986
Electrics: 230 Volt, 3 Phase, 60 Cycle, 2.6 Amps
Main Motor: 1 HP
Features and Specifications:
...Capacity: 6" x 12"
...Manual Feed
...Spindle Specs:
......Model: MD-5
......Serial No.: 298
......Max. Speed: 3,450 RPM
...Feed Graduation Values:
......Vertical Feed: 0.0001"
......Cross-Feed: 0.0005"
...Wheel Size: 7” x ½” x 1-1/4”
...Travels:
......Longitudinal: 13"
......Cross-Travel: 7”
......Under Wheel: 12-3/4"
...Way Lube
...Walker Ceramax Magnetic Chuck
...Customized Spray Mist System
...Dust/Fine Collection
...Work Lamp
Equipment Dimensions (approx.): 48” x 40” x 58”
Equipment Weight (approx.): 1,700 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
1st-owner machine to the best of our knowledge. Unit is in good working order; current owner wants to sell due to reduced production requirements in grind room.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Eugene, OR Metro Area
Equipment is under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
