SHARP KMA-1 Vertical Bed Mill from 1990, used. Table: 67"x15-15/16", Travel: 39-3/4"x14-15/16", Spindle: #50 Taper, Speed: 45-1500 RPM. Equipped with 2-Axis Digital Readout, Power Rapid Traverse, and more. Weight: 8,800 lbs. Located in NJ.
| Table-W | 15" | 381 mm |
| Table-L | 67" | 1,701.8 mm |
| Travel-Long | 39.375" | 1,000.1 mm |
| Travel-Cross | 15" | 381 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,500 RPM | 1,500 RPM |

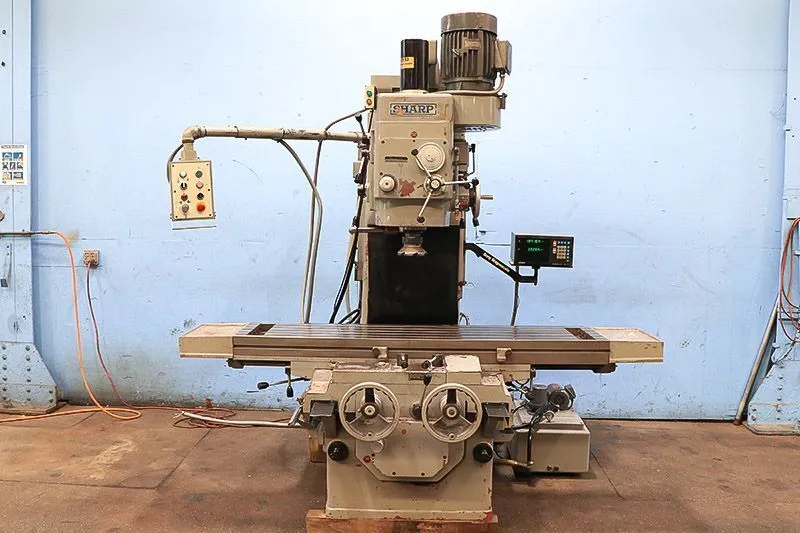

SHARP VERTICAL BED MILL
MODEL: KMA-1 S/N: 11055 MFG: 1990
SPECIFICATIONS:
TABLE SIZE ................................. 67" x 15-15/16"
LONGITUDINAL TABLE TRAVEL .................. 39-3/4"
CROSS TABLE TRAVEL ......................... 14-15/16"
HEAD VERTICAL TRAVEL ....................... 19-11/16"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE ..... 23-5/8"
FEED RANGE LONGITUDINAL & CROSS ............ 1 - 34 IPM
FEED RANGE VERTICAL HEAD ................... .002 - .008 IPM
SPINDLE TAPER .............................. #50 STD
SPINDLE SPEEDS (12) ........................ 45 - 1500 RPM
APPROXIMATE DIMENSIONS ..................... 126" x 79" x 87"H
APPROXIMATE WEIGHT ......................... 8,800 LBS
EQUIPPED WITH:
SONY TWO AXIS DIGITAL READOUT
HARDENED & GROUND BOX GUIDEWAYS
POWER RAPID TRAVERSE
BACKLASH ELIMINATOR
POWER DRAW BAR
AUTOMATIC LUBRICATION SYSTEM
10 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
