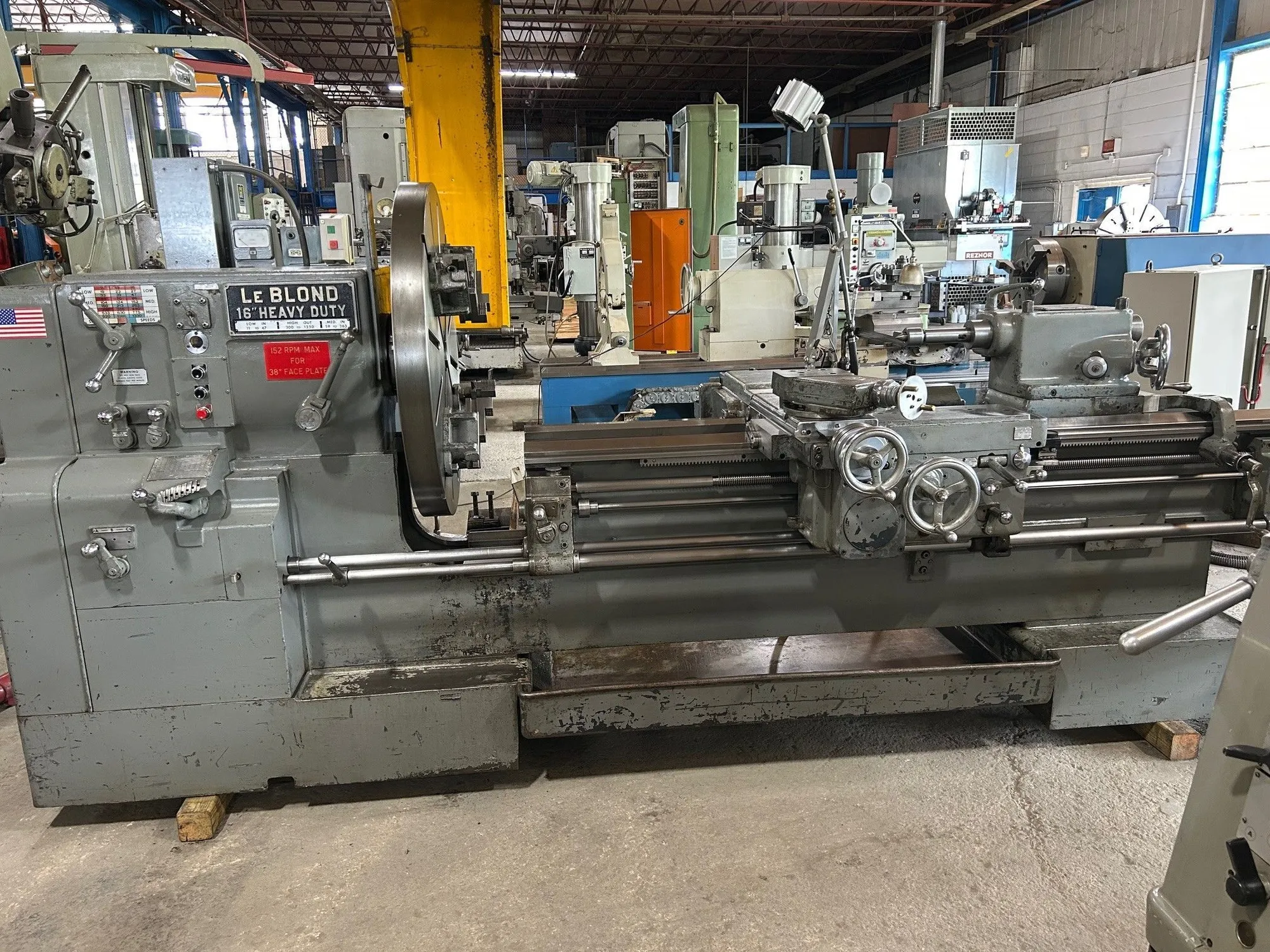

LEBLOND Model 16 used heavy-duty sliding bed gap lathe. Swing over bed 20", gap 46", distance between centers up to 120". Equipped with hardened bed ways, taper attachment, 38" 4-jaw faceplate, threading dial, coolant pump, and more.
| Swing | 20.5" | 520.7 mm |
| Gap Swing | 46" | 1,168.4 mm |
| Centers | 120" | 3,048 mm |
SWING OVER BED AND CARRIAGE WINGS ...... 20-1/2"
SWING OVER CROSS SLIDE ................. 12-7/8"
SWING OVER GAP ......................... 46"
DISTANCE BETWEEN CENTERS, BED CLOSED ... 72"
DISTANCE BETWEEN CENTERS, BED OPENED ... 120"
SPINDLE SPEEDS RANGE ................... 11 TO 1330 R.P.M.
SPINDLE NOSE, TAPER KEY DRIVE, SIZE .... L-2
SPINDLE BORE ........................... 2-1/4"
HEADSTOCK & TAILSTOCK SPINDLE TAPER .... #4 MORSE
FEEDS, LONGITUDINAL (48) ............... .0011 - .250 I.P.R.
THREADING RANGE (48) ................... 2 - 120 T.P.I.
TAILSTOCK SPINDLE TRAVEL ............... 10"
APPROX FLOOR SPACE:
WITH BED CLOSED ................ 12'7" x 87" x 78"
WITH BED OPEN .................. 17' x 87" x 78"
APPROXIMATE WEIGHT ..................... 12,500 LBS
- SLIDING BED FOR INCREASED SWING AND CENTER DISTANCE
- HARDENED AND REPLACEABLE BED WAYS
- TAPER ATTACHMENT
- 38" DIAMETER FACEPLATE w/4-JAWS
- THREADING DIAL
- SELF-CONTAINED COOLANT PUMP
- (1) LIVE CENTER FOR THE TAILSTOCK
- 15 HORSE POWER SPINDLE DRIVE MOTOR
