USED 2013 SIOUX DAKOTA II H8* 2750
Overview
Description

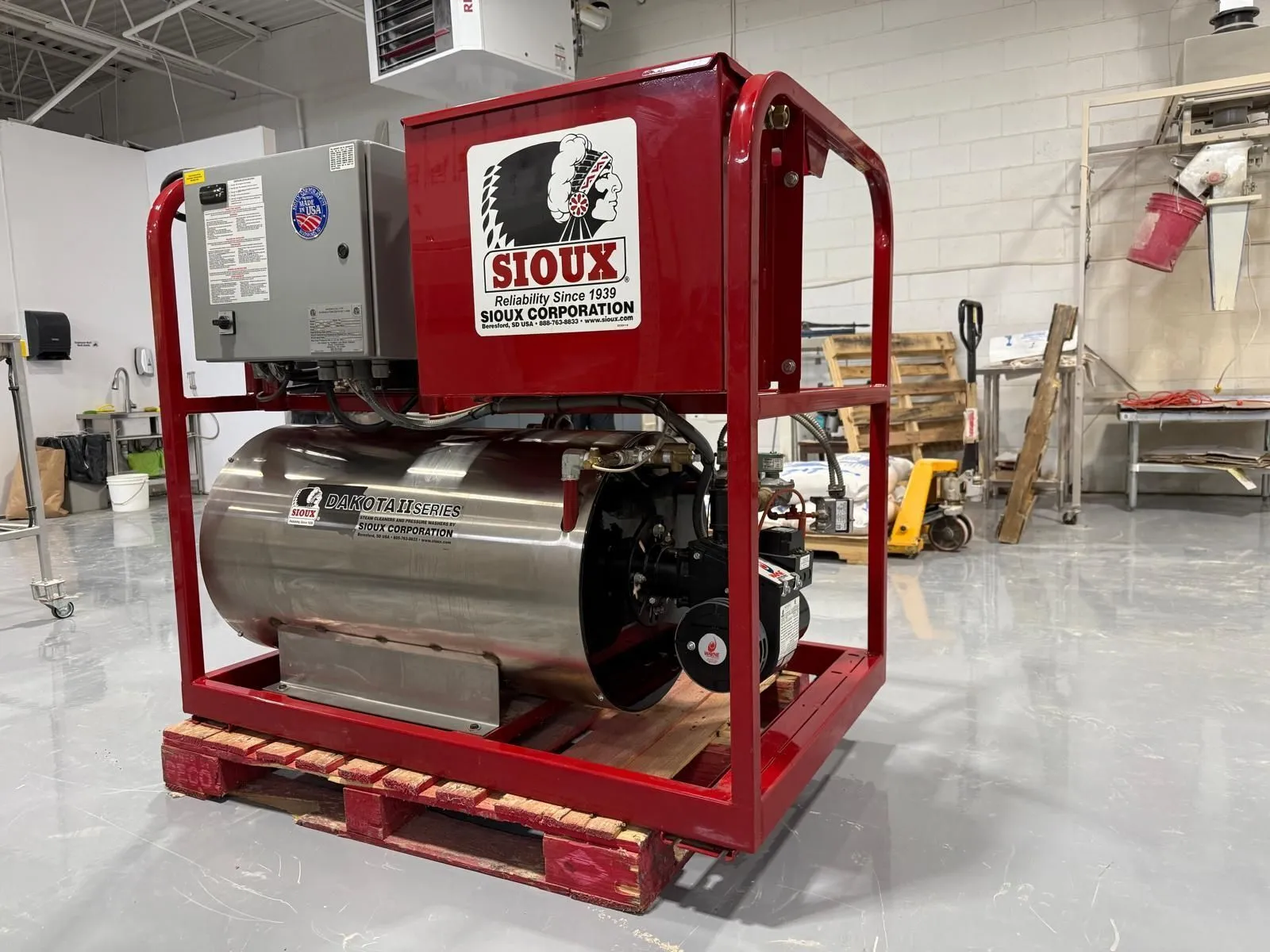

2013 SIOUX DAKOTA II HOT WATER PRESSURE WASHER/STEAMER
Manufacturer: Sioux
Model: Dakota Series II H8N2750
Mfg Date: 2013
POWER 575v, 60hz, 3ph
Pump Horsepower: 15 HP
MAWP: 2750
Max Temp: 320°F
Fuel: NG (Natural Gas)
Operating Pressure at burner (In. WC): 3.5
BTU/H Input Rate: 680,000
Max gas pressure: Natural Gas (In. WC): 13.8
Wayne Burner Model EHG
Max. hourly BTU (kw) Input: 700,000
Min. hourly BTU (kw) Input: 425,000
Gas manifold pressure: 3.8 W.C
Rated hourly BTU (kw) Input: 425,000
Max. gas supply pressure: 14 W.C
Min. gas supply pressure: 6 W.C
Controls: Honeywell S89F 2 rod direct ignition system. Flamerod sensor with 4 second trial for ignition.
Ignition: Direct spark ignition 10,000 volt
Motor: 3450RPM
Pipetrain: UL795 & CGA3.4 compliant
Drill: 23/32'' / 0.7188'' (18.26mm)
Air Shutter: 2-1/8'' (54mm)
WEIGHT: 5000 LBS
DIMENSIONS: 56'' X 37'' X 58''
Specifications
| Max Pressure | 2,750 PSI | 18,960,548.3 Pa |
|---|---|---|
| Motor | 15 hp | 11.2 kW |
| Dimensions | 56'' X 37'' X 58'' | 56'' X 37'' X 58'' |
| Weight | 5000 lbs | 5000 lbs |
