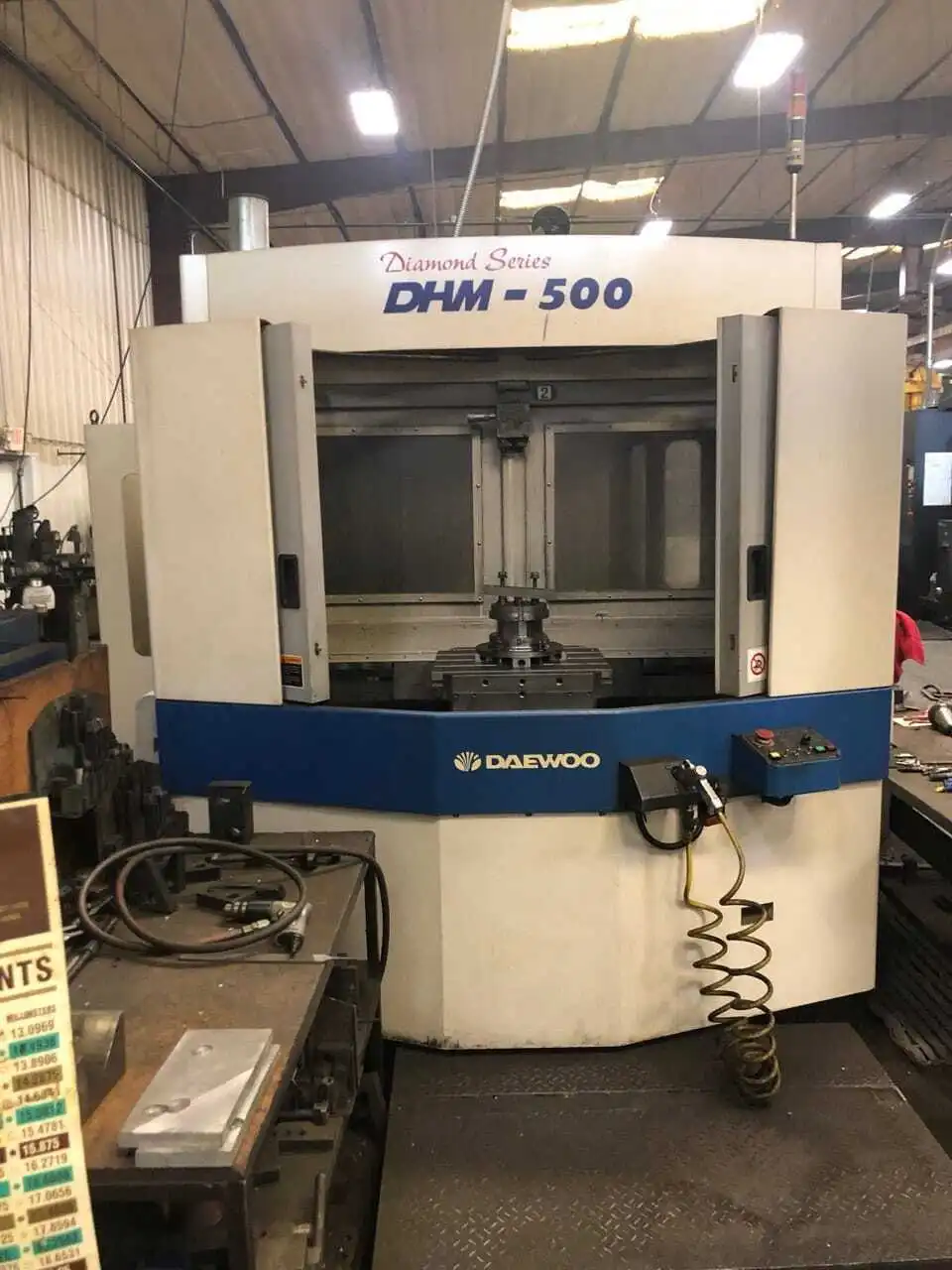

2002 Daewoo DHM-500 Horizontal Machining Center with Fanuc 16i-M Control, 6,000 RPM, CAT-50 Spindle, 1 Degree 4th Axis, 60 ATC.
| X | 31.5" | 800.1 mm |
| Y | 25.6" | 650.24 mm |
| Z | 25.6" | 650.24 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | 50 | 50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (FANUC 16i-M) | CNC (FANUC 16i-M) |
| Weight | 29,700 LBS | 29,700 LBS |
Pallet Size...........................19.7" x 19.7"
Number Of Pallets.....................2
Table Load Capacity...................1,764 LBS
Spindle Nose To Table Center..........5.9" - 31.5"
Spindle Center To Table Top...........2" - 27.6"
Table Indexing........................1 Degree
X-Axis Travel.........................31.56"
Y-Axis Travel.........................25.6"
Z-Axis Travel.........................25.6"
Spindle Motor.........................15 HP
Spindle Taper.........................CAT-50
Speed Ranges..........................3
Spindle Speeds........................6,000 RPM
Spindle Torque........................738 FT-LBS.
Rapid Traverse Rates..................945 IPM
Number Of Tool Positions..............60 ATC
Maximum Tool Weight...................55 LBS
Max Tool Diameter.....................5.3"/9.8"
Max Tool Length.......................15.7"
Machine Weight........................29,700 LBS
Fanuc 16i-M CNC Control
6,000 RPM, CAT-50 Spindle
1 Degree 4th Axis
60 Position Automatic Tool Changer
Coolant Through the Spindle
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
