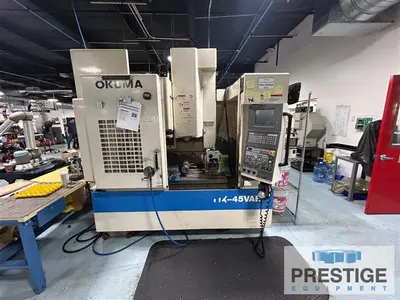

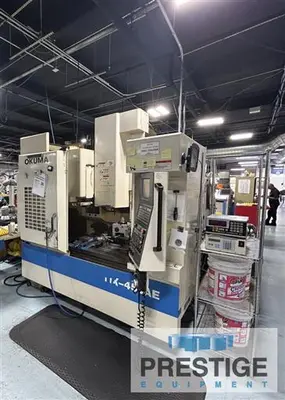

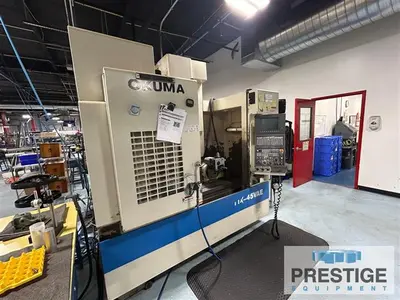

USED 1999 OKUMA MX-45VAE

SPECIFICATIONS:
X-Axis Travel: 30.00"
Y-Axis Travel: 18.11"
Z-Axis Travel: 17.72"
Table Size: 39.37" x 20.1"
Table Load Capacity: 1100 lbs
Table Surface to Floor Level: 29.5"
Spindle End to Table Surface: 6.3"-24.02"
Spindle Speeds: 50-7000 RPM
Spindle Taper: CAT 40
Spindle Drive Motor (AC Drive): 10 HP / 7.3 HP
Rapid Traverse (X/Y Axes): 1,181.1 IPM
Rapid Traverse (Z Axis): 944.9 IPM
Tool Changer: 20 ATC
Tool-To-Tool: 1.5 sec
Max. Tool Dia. w/ Adjacent Tools: 3.54"
Max. Tool Dia. w/o Adjacent Tools: 4.92"
Max. Tool Length: 15.7"
Max. Tool Weight: 17.6 Lbs.
Dimensions: 87"x 94"x 104"
Approx. Weight: 14,000 Lbs.
Electrics: 220/3/60

Equipped With:

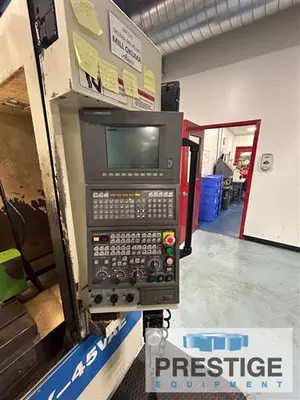

OSP-700M CNC Control
20-Position Automatic Tool Changer

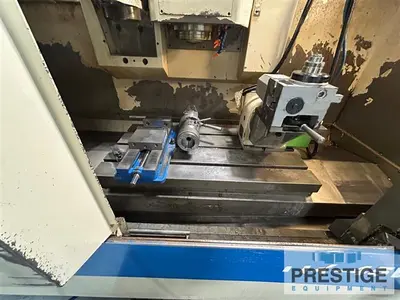

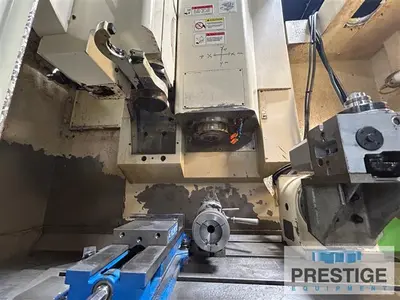

4/5 Axis Table
Hand-Held Pendant
Fully Enclosed

Features:
OSP-700M CNC Control
20-Position Automatic Tool Changer
4/5 Axis Table
Hand-Held Pendant
Fully Enclosed
