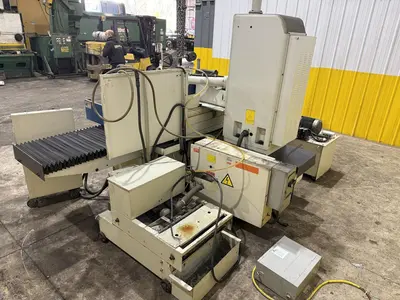

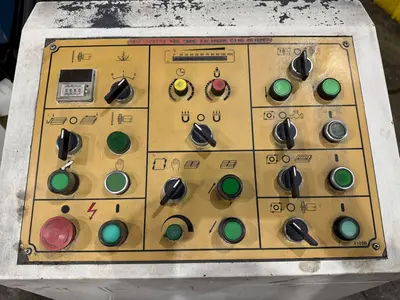

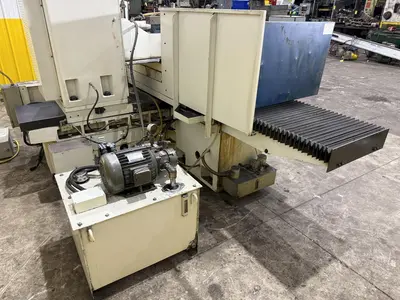

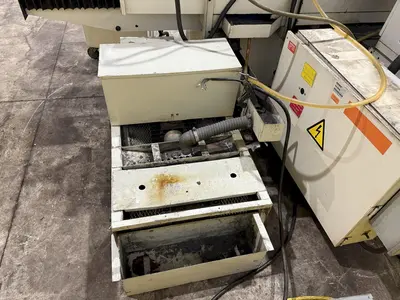

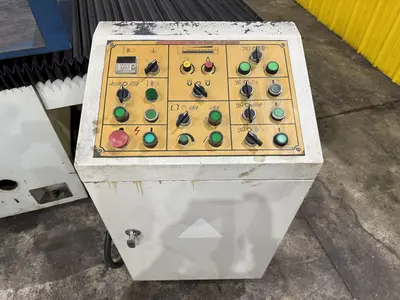

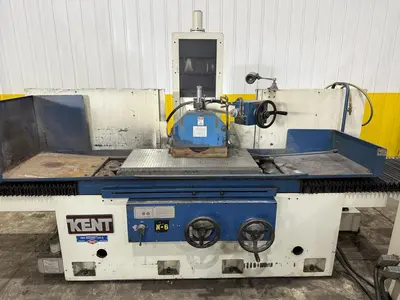

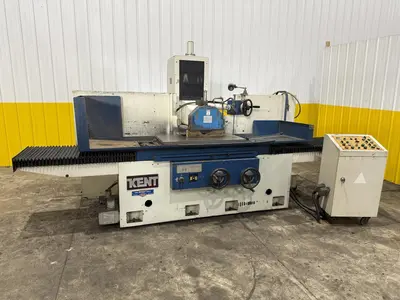

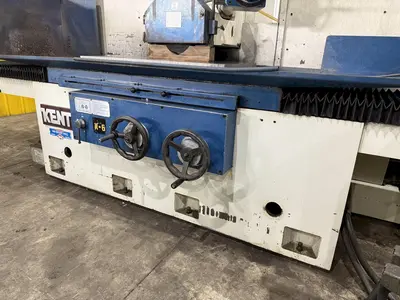

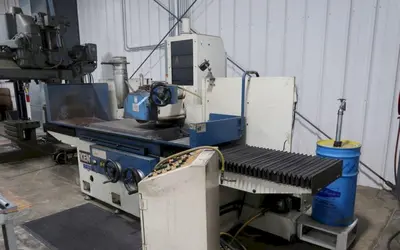

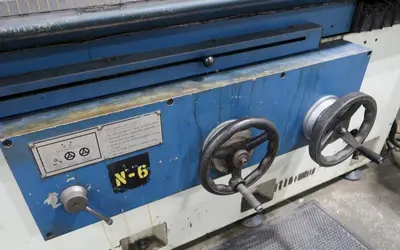

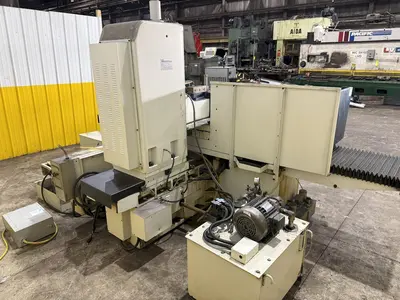

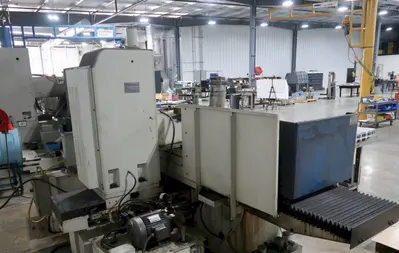

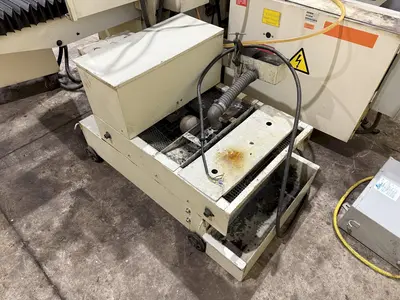

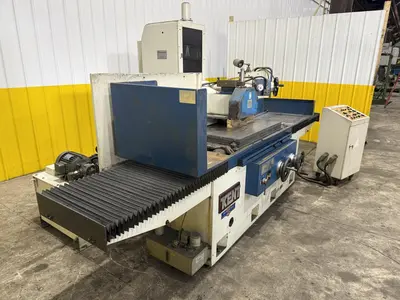

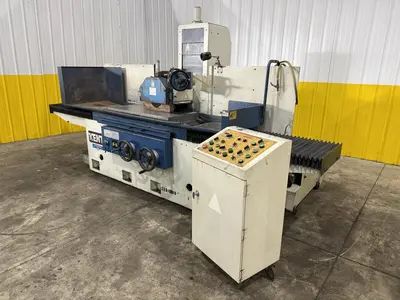

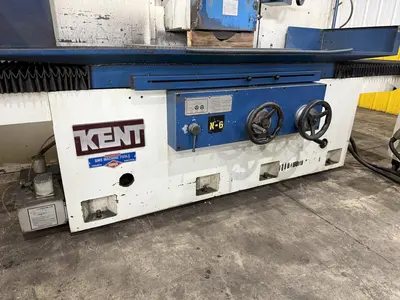

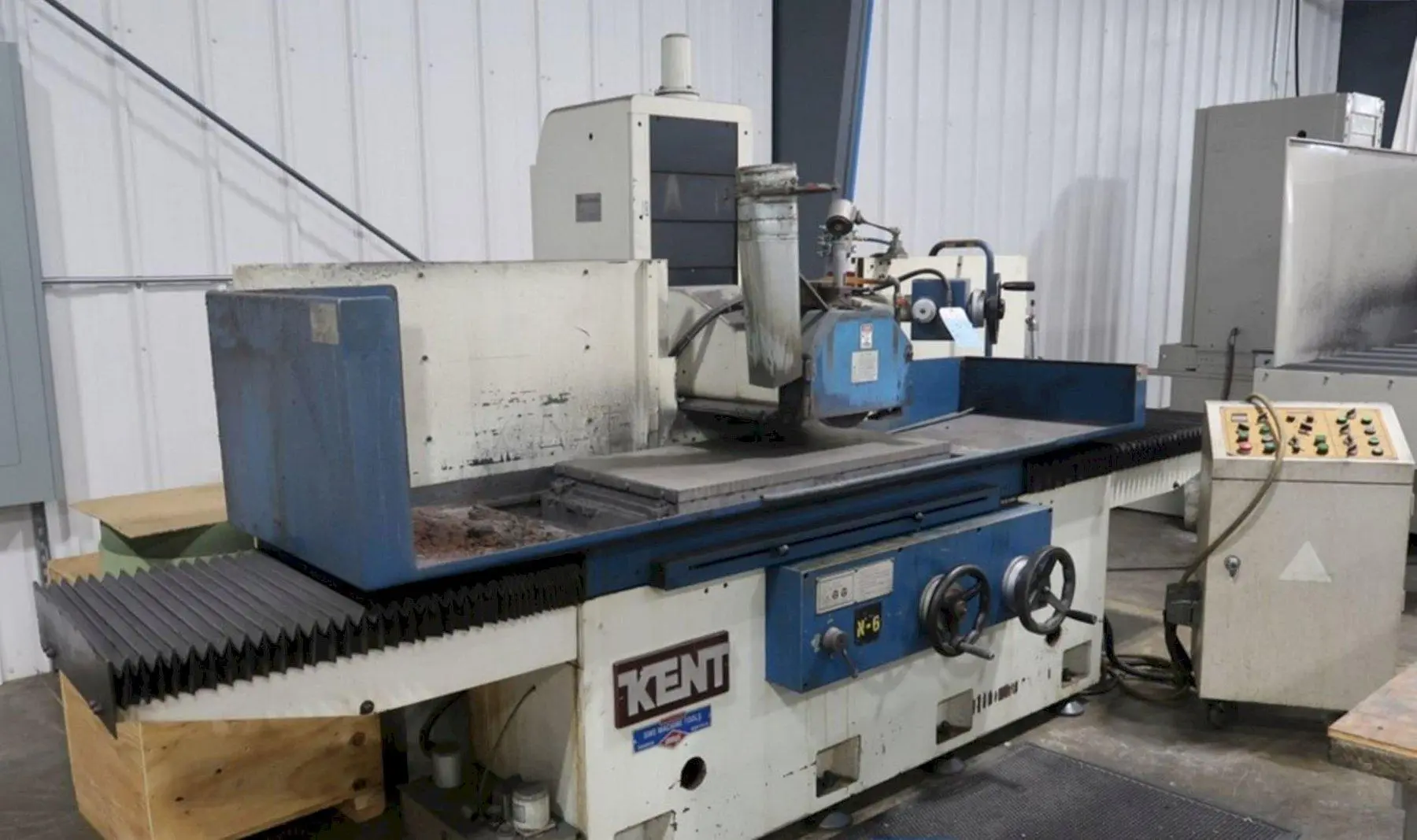

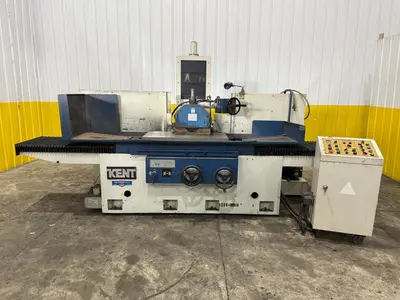

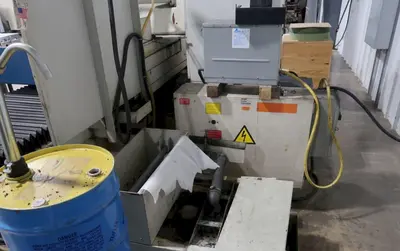

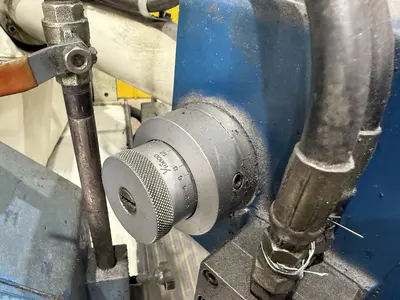

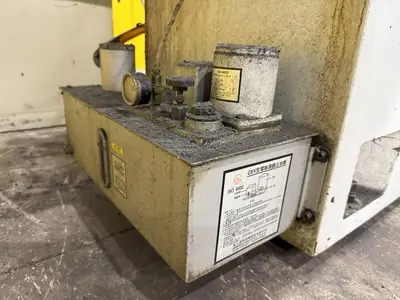

USED KENT KGS-510AHD

SERIAL ............................ 98107306
MODEL ............................. KGS-510AHD
NEW ............................... 1998
CAPACITY .......................... 20" X 40"

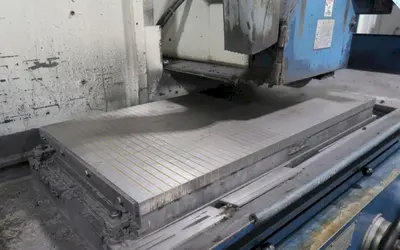

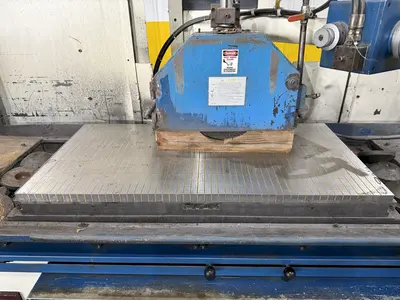

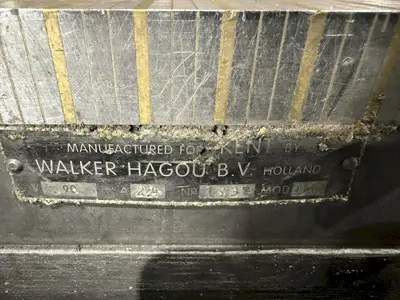

CHUCK SIZE ........................ 20"W x 40"L
MAX SPINDLE CENTER TO TABLE TOP ... 23"
MAX LONGITUDINAL TRAVEL ........... 44-1/2"
MAX CROSS TRAVEL .................. 21-5/8"
HYDRAULIC FEED .................... 22.9-82FPM
HANDFEED PER REVOLUTION ........... 0.02
CONTINUOUS TRAVERSE FEED .......... 0-59 IPM

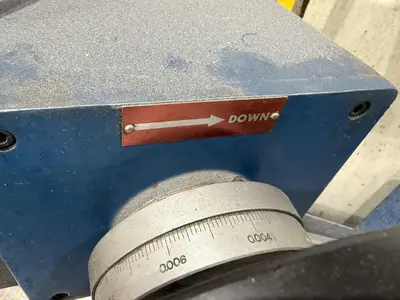

HANDWHEEL RADIUS .................. 0.00008
RAPID FEED ........................ 11 IPM
SPINDLE DRIVE MOTOR ............... 7.5 HP

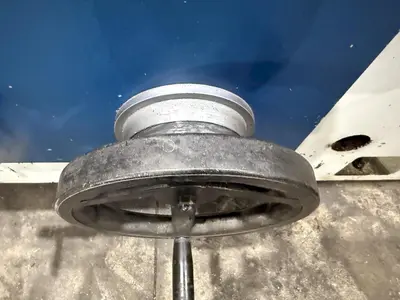

WHEEL DIAMETER .................... 14"
WHEEL WIDTH ....................... 1-1/2″
WHEEL BORE ........................ 5"

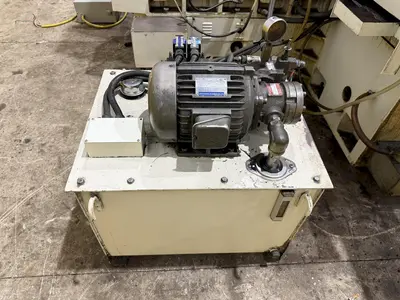

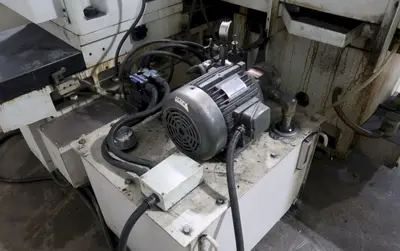

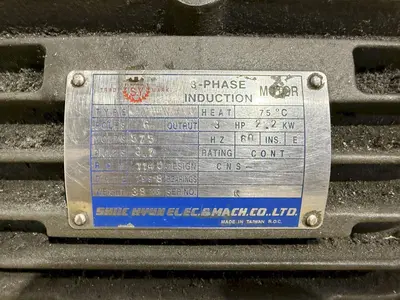

HYDRAULIC MOTOR ................... 3 HP
CROSS FEED MOTOR .................. 4/5 HP

Brand
KENT
Type
Grinders, Surface
Stock No.
24189
