Bostomatic 405 5-Axis Machining Center Vertical; New 1996.
20"x9"x16", +/-190 Deg, 48"x14" Table, EJ-16 Taper, 50K RPM, 18 Station ATC, Tooling, Coolant, Probe
| X-Axis | 20" | 508 mm |
| Y-Axis | 9" | 228.6 mm |
| Z-Axis | 16" | 406.4 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 50,000 RPM | 50,000 RPM |
| # ATC | 18 | 18 |
| Taper | EJ-16 | EJ-16 |
| Table-W | 48" | 1,219.2 mm |
| Table-L | 14" | 355.6 mm |
| # Axis | 5 | 5 |
| Dimensions | 135" x 119" x 100" | 135" x 119" x 100" |
| Weight | 10000 | 10000 |

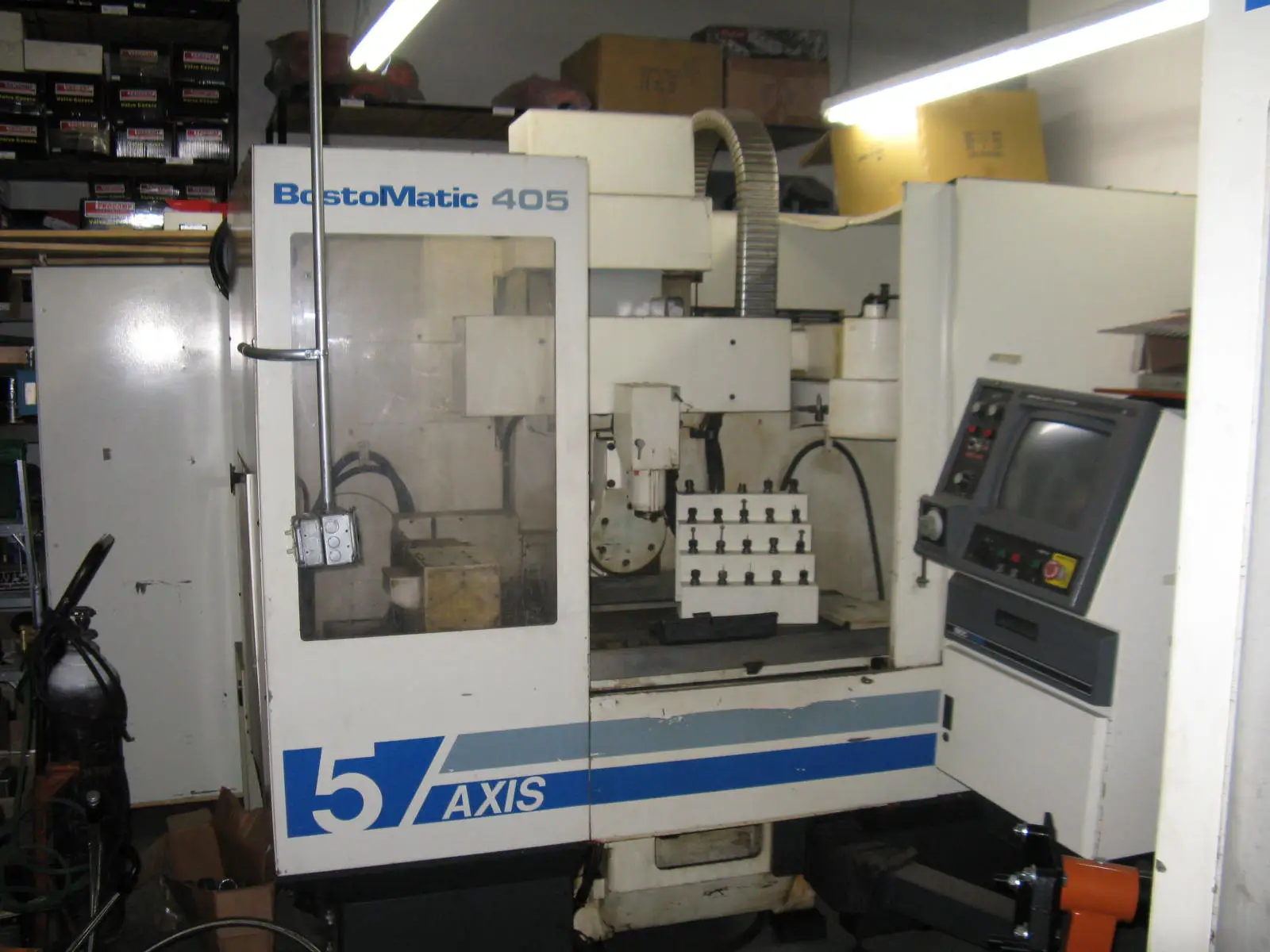

Bostomatic 405-20TC 5-Axis Vertical Machining Center
New: 1996
Specifications:
Travels:
X-Axis: 20"
Y-Axis: 9"
Z-Axis: 16"
B-Travels: Spindle Head 190/-190 actual
A-Axis: 360 Deg Rotary Table
Table Size: 48" x 14"
Max Table Load: 750 Lbs
Spindle Taper: EJ-16
Spindle Speed: 50,000 RPM
Spindle Motor: 5 HP
Tool Changer: 18 Station
Rapid Traverse Rate: 400 IPM
Cutting Feed Rate: 200 IPM
Electrics:
440-460v, 60 hz, 25 Amp - 3 Phase
Machine Dimensions: 135" x 119" x 100"
Machine Weight: 10,000 lbs
Equipped With:
BDC 3200 Upgraded Touch Screen Control
Refrigerated Flood Coolant
Full Enclosures
Renishaw Touch Probe
20 Tool Holders and Fixture
All available manuals
Very low hours!
