USED 2023 GANNOMAT CONCEPT 70 ECO PLUS INTERLOCKING LAMELLAR

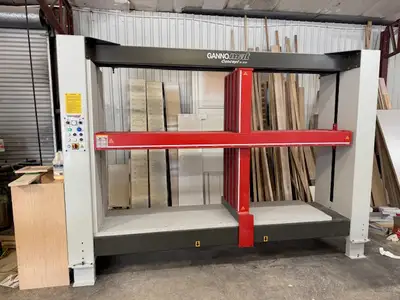

2023 Gannomat Concept 70 ECO Plus interlocking lamellar case clamp located in Tennessee. Seller describes this machine as being in excellent used condition. Call iBiD Machinery at (678) 925-3556 for current availability, inspection and loading details.
Machine overviewThe Concept 70 ECO Plus is designed for controlled assembly and pressing of dowel-constructed case goods and drawers. Its adjustable pressure and multiple motion speeds allow the operator to clamp different cabinet sizes while compensating for workpiece tolerances.
Manufacturer model-reference specifications
Standard work length (X): approximately 150-2,500 mm
Standard work height (Z): approximately 150-1,300 mm
Work depth (Y): approximately 150-700 mm
Adjustable pressing force with published maximum approximately 2,200 kg
Published minimum pressing-force settings approximately 300/500 kg
Four pressing / adjustment speeds: approximately 5 / 10 / 25 / 50 mm/sec
Fine-positioning / creep-feed capability
Adjustable clamping cycle with automatic opening
Workpiece tolerance compensation (Ganner system)
Longer X-axis versions were available as options

What to confirm on this machineConfirm the exact working dimensions, voltage, control configuration, lamellar/interlocking equipment, pressing beams and any optional extensions or accessories installed on this 2023 machine.*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
