Used

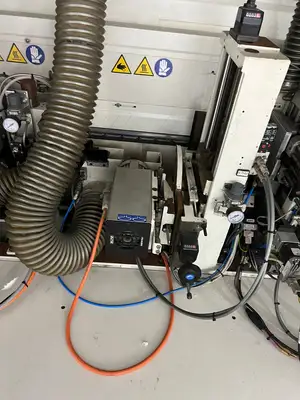

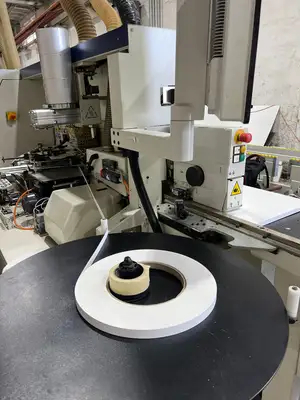

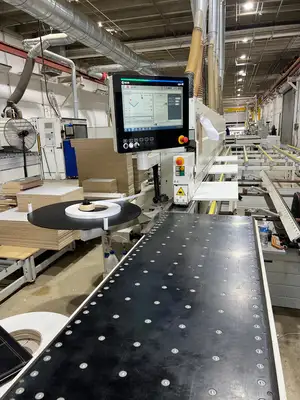

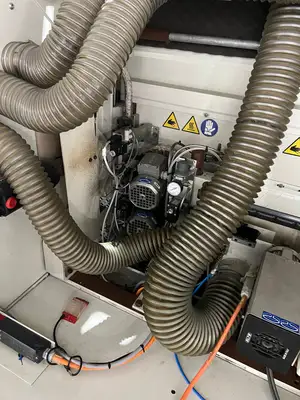

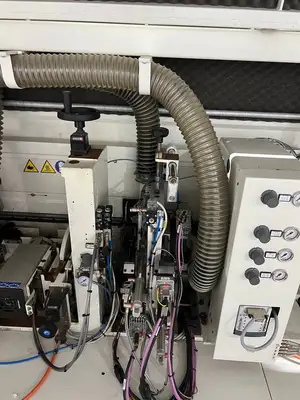

USED 2022 SCM STEFANI MDR

Georgia, United States
Asking Price
USD $112,000.00
1 available
42Listings|19Followers
Overview
CNC Edgebanding Machining Centers

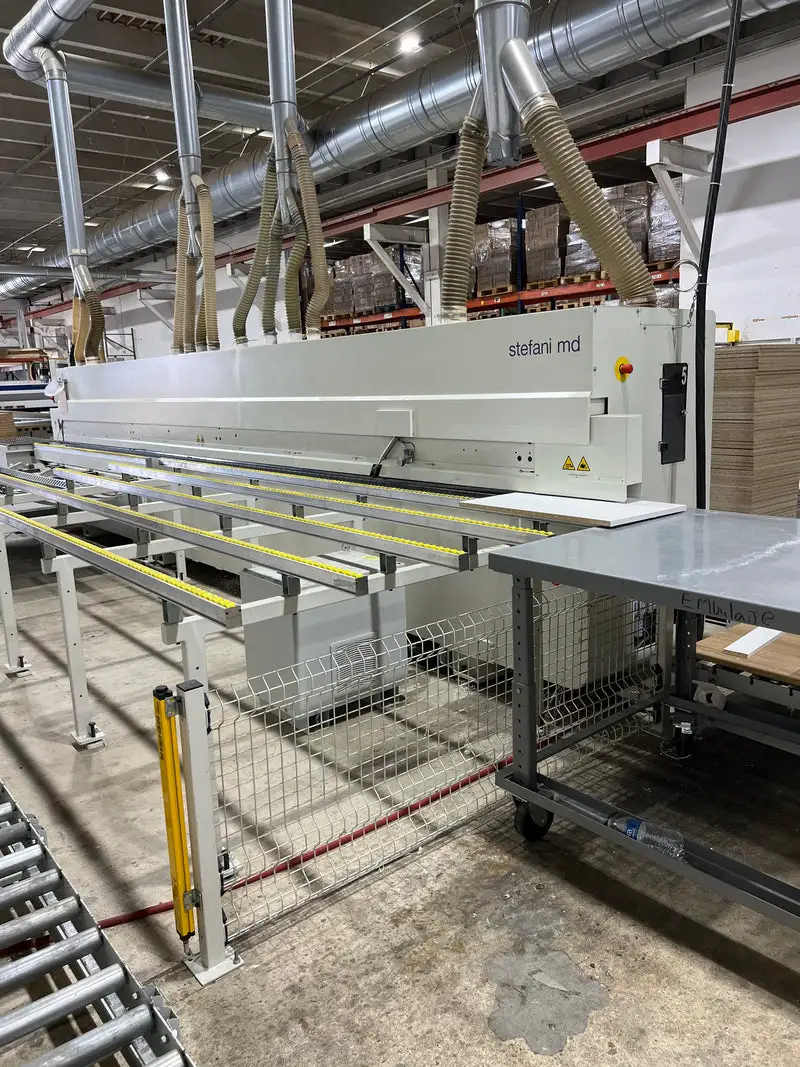

2022 SCM Stefani MDR automatic single-sided edgebander in Florida. Serial number: AH00004541. The listing reports excellent, like-new condition and no known issues. The machine is also currently in production. For inspection and availability, call iBiD Machinery at (678) 925-3556.
Listed machine specifications

Edge thickness: about 0.4–15 mm; guillotine capacity: about 3 mm.
Feed speed: about 40–72 FPM.
Panel height: about 3/8–2-3/8 in.; minimum length: about 5-1/2 in.; minimum width: about 2 in.
Pre-milling: twin 5.25 hp motors at about 12,000 rpm.
End trim: twin 0.75 hp motors at about 12,000 rpm, with 0–15° tilt.
Top/bottom trimming: about 1.5 hp per motor.
Corner rounding: about 0.8 hp per motor at about 12,000 rpm.
Profile scraping: 1 mm and 3 mm inserts; buffing: about 0.25 hp at 3,000 rpm.
Air pressure: about 90 PSI; dust extraction reference: about 3,500 CFM.
Electrical: 230V, 3-phase. However, source documents differ on full-load current, listing about 130–155A.
Shipping size: about 262 x 65 x 62 in.; shipping weight: about 9,000–9,105 lb.

Inspecting this SCM Stefani MDR edgebander
First, confirm serial number AH00004541 on the nameplate. Then check the glue-pot setup, installed units and tooling. Also, verify the exact full-load current and edge material capacity.
Before buying, ask for a test with your panel and edge materials. Next, inspect the glue line, trimmed ends and rounded corners. Then check the scraped and buffed surfaces. Finally, confirm the power, air and dust extraction needs for this machine.
*To the best of our knowledge, these specs reflect seller details, maker information and other credible technical sources. However, the actual setup, options, size and capacity may vary by year, serial number and installed equipment. Therefore, confirm all specs and inspect the machine before purchase.

Specs
Dimensions
262” x 65” x 62”
Weight
9000

Product Description: Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 15mm.

Machine Base

The machine base is a rigid, ribbed steel structure and is designed to provide maximum support for the working units. The ribs provide stability and, at the same time, provide openings in the base to facilitate removal of the chips/dust.

Top pressure beam is fitted with a twin-profile V-belt for even pressure & precise holding of even small work pieces.

Capacities and Speed

 Edgebanding thickness: .4mm - 15mm (.016-5/8”)

 Guillotine capacity: 3mm

 Feed speed: 40-72 ft/min.

 Panel height: 3/8” min – 2 3/8” max

 Minimum panel length: 5 1/2”

 Minimum panel width: 2”

 Minimum distance between panels: 20”
Machine Location State: Florida
Machine Location City: Miami
Year: 2022
Make: SCM
Model: MDR
Serial No: AH00004541
Phase/Voltage: 3 phase 230 v 155 Amps full load 60hz
Condition: Excellent- Like New
Any Known Issues: No
In Production: Yes
Software transfers with machine: Edgebander
Access to Forklift for Loading: Yes
Loading Fee: Included
Shipping Dimensions: 262” x 65” x 62”
Shipping Weight: 9000
Shipping Brackets Available:
