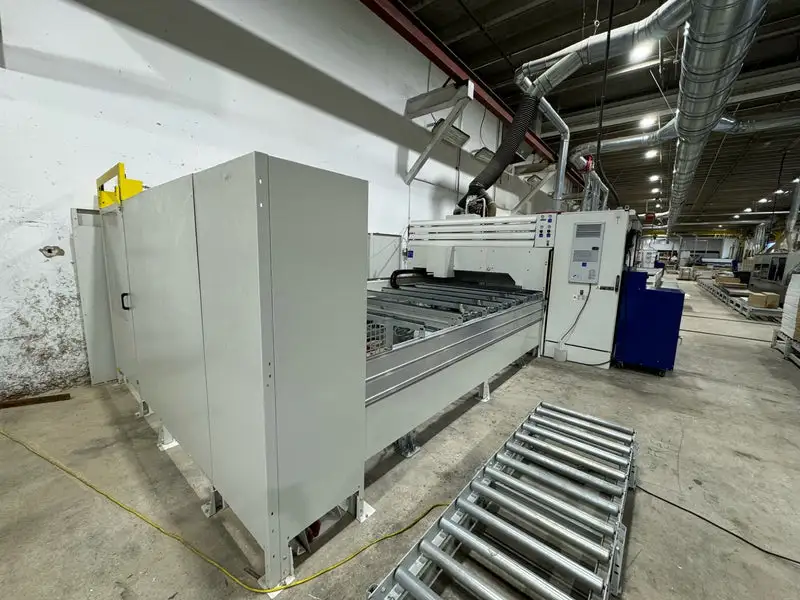

USED 2022 SCM MORBIDELLI

This 2022 SCM Morbidelli UX200 CNC drilling and machining center is in Florida. The seller describes it as like new. For availability, inspection and removal details, call iBiD Machinery at (678) 925-3556.
Panel processing
The UX200 handles CNC drilling and machining for panel production. SCM's published platform combines upper and lower drilling with high-speed axis travel. In addition, optional routing supports cabinet, casework and furniture parts. However, buyers should confirm which options this machine has.
SCM Morbidelli UX200 CNC machining center reference data

Maximum panel size: about 3,200 mm long (126 in.) by 1,300 mm wide (51.2 in.).
Maximum panel thickness and weight: about 80 mm (3.15 in.) and 100 kg (220 lb.).
Maximum axis speeds: about 120 / 35 / 30 m/min for X / Y / Z.
Standard drilling-head reference: 48 + 48 vertical spindles, up to 6,000 rpm.
Horizontal drilling reference: 16 spindles in X plus 4 in Y, up to 6,000 rpm.
Integrated X-axis blade reference: 125 mm diameter, up to 7,500 rpm.
Optional routing reference: 9.5 kW (13 hp) electrospindle, up to 24,000 rpm; up to 6 + 6 tools.

Inspection and setup
First, use the Morbidelli UX200 serial number to confirm the installed drilling heads and routing spindles. Then, check the tool changers, tooling and software/control version. Also, verify the vacuum, extraction and electrical needs before purchase.
For a useful test, bring drawings and sample parts that match your planned work. Next, ask to see the UX200 drill those parts and check hole positions. If routing is part of your work, confirm the installed routing option and ask for a test cut.
Before arranging transport for the Morbidelli UX200, agree on the equipment and tools included in the sale. In addition, confirm removal access and loading plans. Finally, check service and setup support for your location.
*To the best of our knowledge, these model-reference specifications reflect available maker information. However, the actual setup, options, size and capabilities may vary by year, serial number and installed equipment. Therefore, buyers should confirm all specifications and inspect the Morbidelli UX200 before purchase.
