Used

USED 2001 PANHANS 436

Georgia, United States
Asking Price
USD $6,000.00
1 available
42Listings|19Followers
Overview
Woodworking Planers

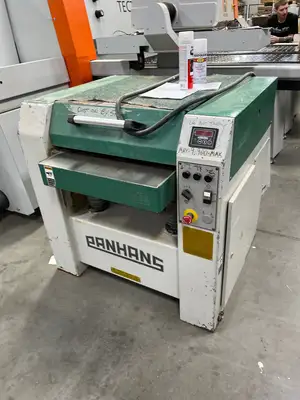

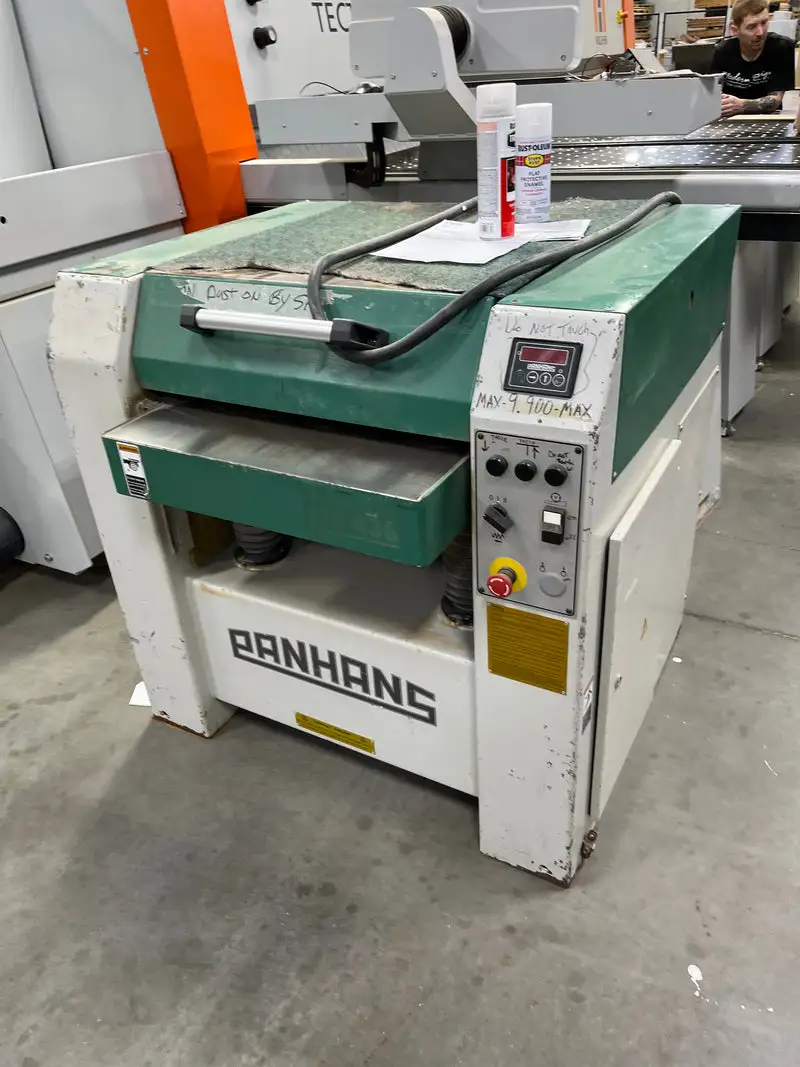

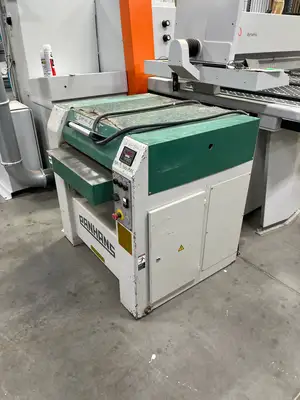

2001 Panhans 436 DH 400 planer in Minnesota. This industrial thickness planer has a 630 mm working width. For current condition, inspection and loading details, call iBiD Machinery at (678) 925-3556.
Machine details and model-reference specs

Working width: about 630 mm / 24.8 in.; thickness opening: about 1/8–10 in.
Main motor: 10 hp; cutterhead speed: about 5,000 rpm.
Four-knife cutterhead: about 4-3/4 in. diameter; maximum cut depth: about 5/16 in.
Two feed speeds: about 22 and 44 FPM.

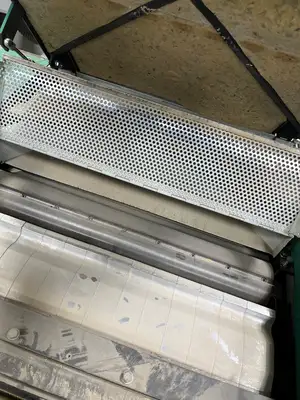

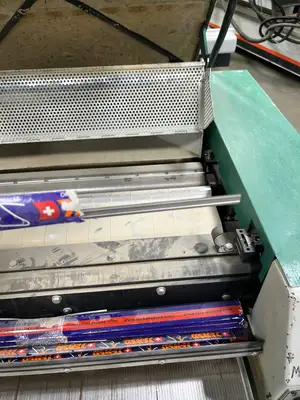

Segmented rubber-covered infeed and outfeed rollers, plus a sectional chip breaker.
Motorized table lift with LED readout; table size: about 43 x 21 in.
Dust hood: about 5-1/2 in. diameter.
Emergency stop and magnetic starter with overload protection.

Inspecting this Panhans 436 DH 400 planer
First, confirm the voltage, phase and feed-motor rating. Then check that your shop can supply the required power. Next, check the knives and cutterhead for wear. Also, ask which knife-setting tools come with the machine.
Before a test cut, ask the seller to show the bed lift and readout. Then inspect the table and feed rollers. During the test, check the board thickness at both ends. Finally, confirm the dust extraction needs and plan room for long boards.
*To the best of our knowledge, these specs reflect seller details, maker information and other credible technical sources. However, the actual setup, options, size and capacity may vary by year, serial number and installed equipment. Therefore, confirm all specs and inspect the machine before purchase.

Specs

Product Description: 2001 PANHANS 436 DH 400 Single Surface Planer - Minnesota
Machine Location State: Minnesota
Machine Location City: Cologne
Year: 2001
Make: Panhans
Model: 436

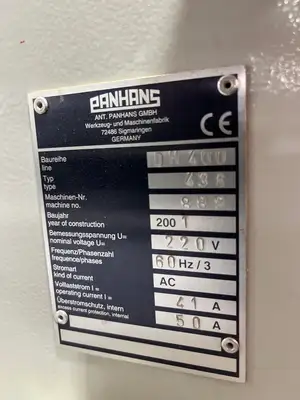

Serial No: 888- see plate in photos
Phase/Voltage: 220/3ph see plate in photos
Condition: Good
Any Known Issues: No
In Production: Yes
Software transfers with machine: Planer
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
