LINLEY MK. 1A Vertical Jig Borer for sale. Features a 18 x 7 inch table, 10-inch longitudinal and 6-inch transverse travel, with 3-inch quill travel. Eight spindle speeds range from 275 to 4250 rpm. Motor: 0.5 HP, three-phase. Approx. 950 lbs.
| Table-W | 7" | 177.8 mm |
| Table-L | 18" | 457.2 mm |
| Travel-Long | 10" | 254 mm |
| Travel-Cross | 6" | 152.4 mm |
| Power | 0.5 hp | 0.4 kW |
| RPM | 4,250 RPM | 4,250 RPM |
| Dimensions | 30 inches long by 23 inches wide and 65 inches high | 30 inches long by 23 inches wide and 65 inches high |
| Weight | 950 lbs crated | 950 lbs crated |

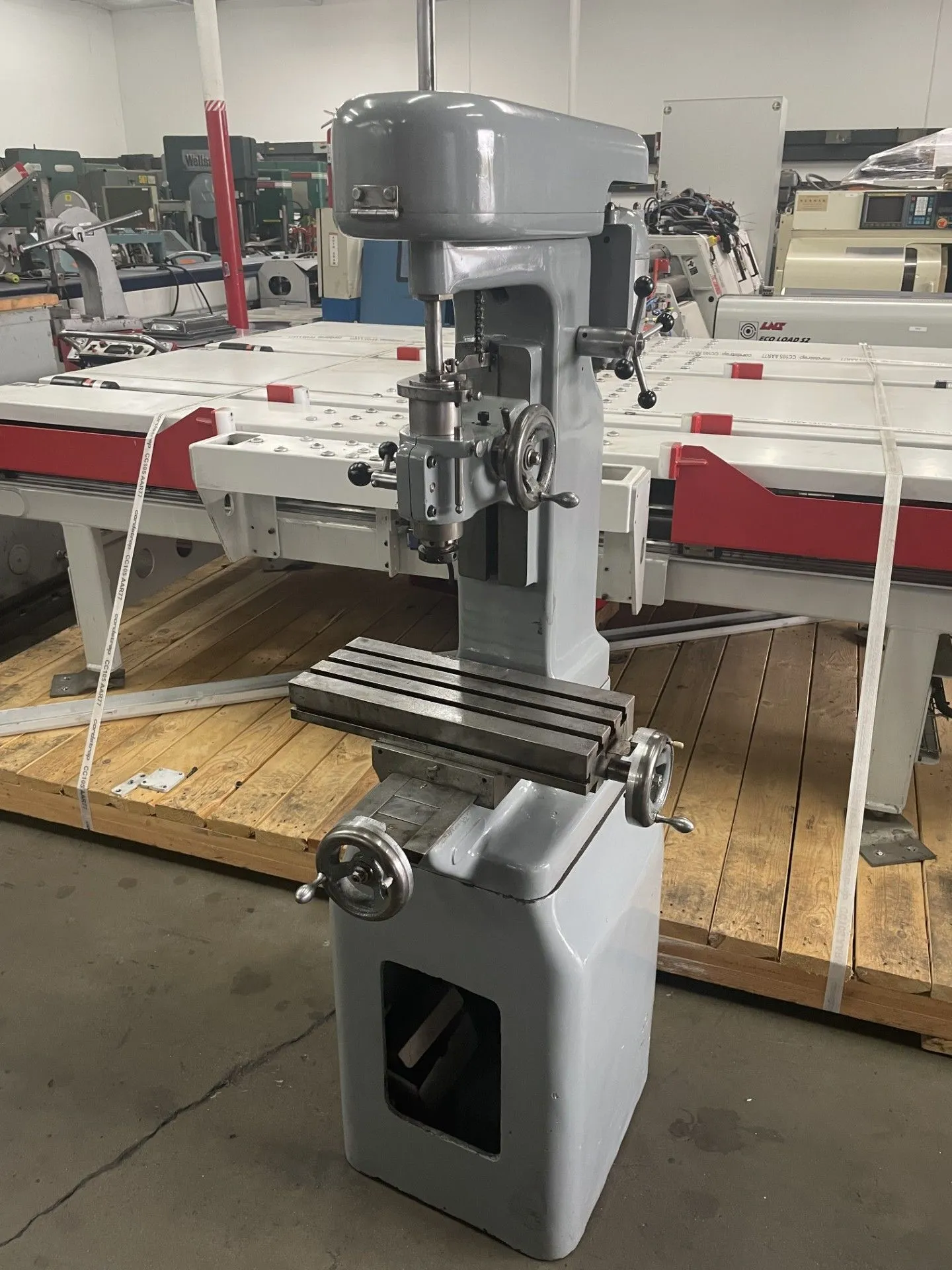

LINLEY MK. 1A Vertical Jig Borer #7972 #1
SPECIFICATIONS:
Table size: 18 x 7 inches with three 1/2-inch T-slots.
Table travel: Approximately 10 inches longitudinal and 6 inches transverse
Quill travel: 3 inches, with an optional power down feed
Spindle speeds: Eight speeds via a belt-driven pulley system: 275, 430, 550, 860, 1250, 2125, 2500, and 4250 rpm.
Collet capacity: 1/8 to 1/2 inch in 1/32-inch increments, using ordinary split-from-one-end type collets.
Motor: 0.5 horsepower, three-phase.
Footprint: A Mk. 1 on a box stand measures approximately 30 inches long by 23 inches wide and 65 inches high.
Weight: Approximately 950 lbs crated.
