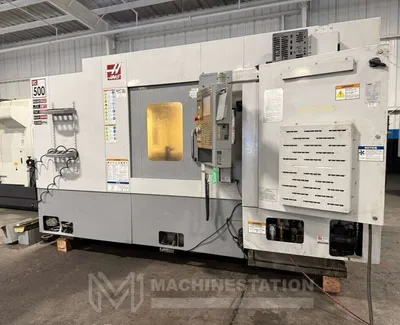

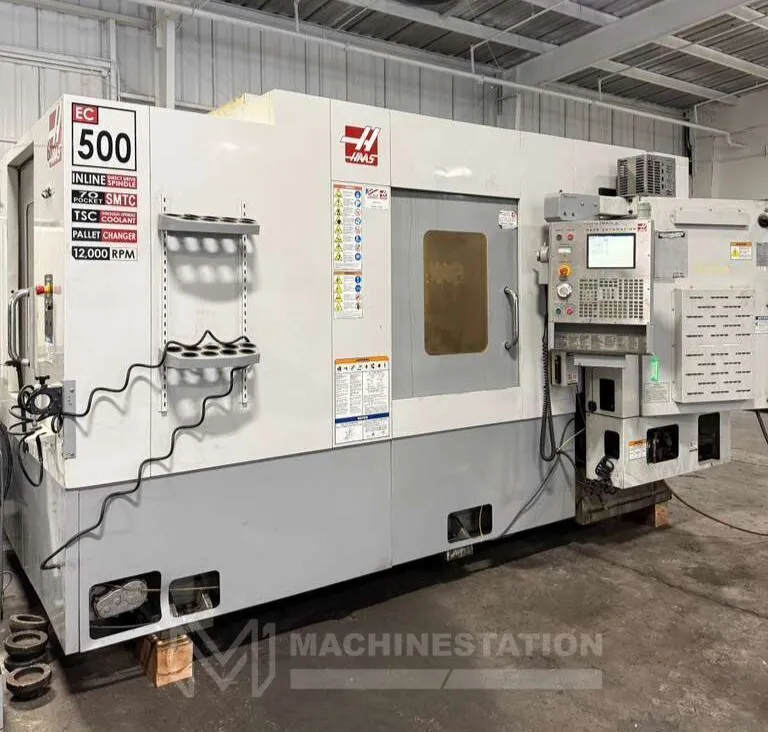

USED 2006 HAAS EC-500-4AX

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

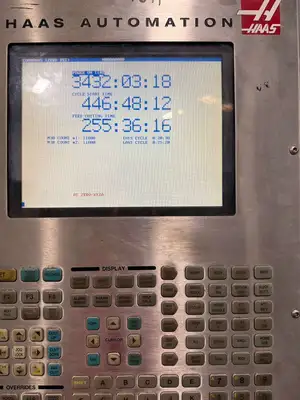

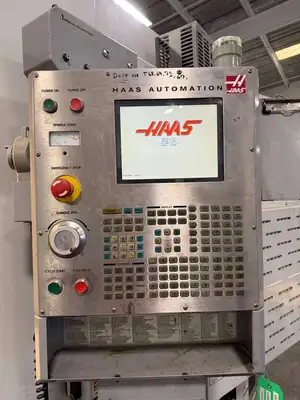

Haas CNC Control
Linear Ways Construction
Dual Pallet Changer
Full 4th Axis
Rigid Tapping
Coolant system

Travels:
X Axis: 32″
Y Axis: 25″
Z Axis: 28″
B Axis: 0.001° Indexing ( Full 4th )

Pallet:
Dual Pallet Changer
Pallet Size: 19.69″ X 19.69″
Max Weight on Pallet: 880 lbs
Max Part Diameter: 29.5"
Max Part Height: 36.5"
Pallet Change Time: 15 Seconds

Spindle:
Taper Size: 40
Spindle Speed: 12000 RPM
Spindle Power: 30 HP

Feed rates:
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute

Automatic Tool changer:
Capacity: 70 Station Side Mounted
Max Tool Diameter: 2.5" - 5.0″
Max Tool Length: 12″
Max Tool Weight: 12 lbs.
Tool Change Time (Tool to Tool): 2.8 Second

General:
Air Required: 100 psi 9 scfm

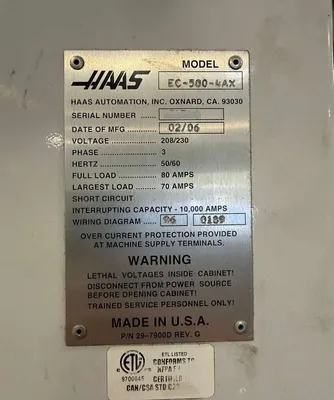

Power: 220v / 66FLA / 3-Phase
Overall Shipping Dimensions: 202″ x 100″ x 111″ High Approx.
Weight: 20120 lbs. Approx.

12000 RPM Inline Direct Drive Spindle
Through Spindle Coolant
70 Tools Side Mount Tool Changer
Renishaw Probing System (Probe Needed)
Tool Presetter
MPG Handwheel Control
Chip Auger
Levelling Pads
