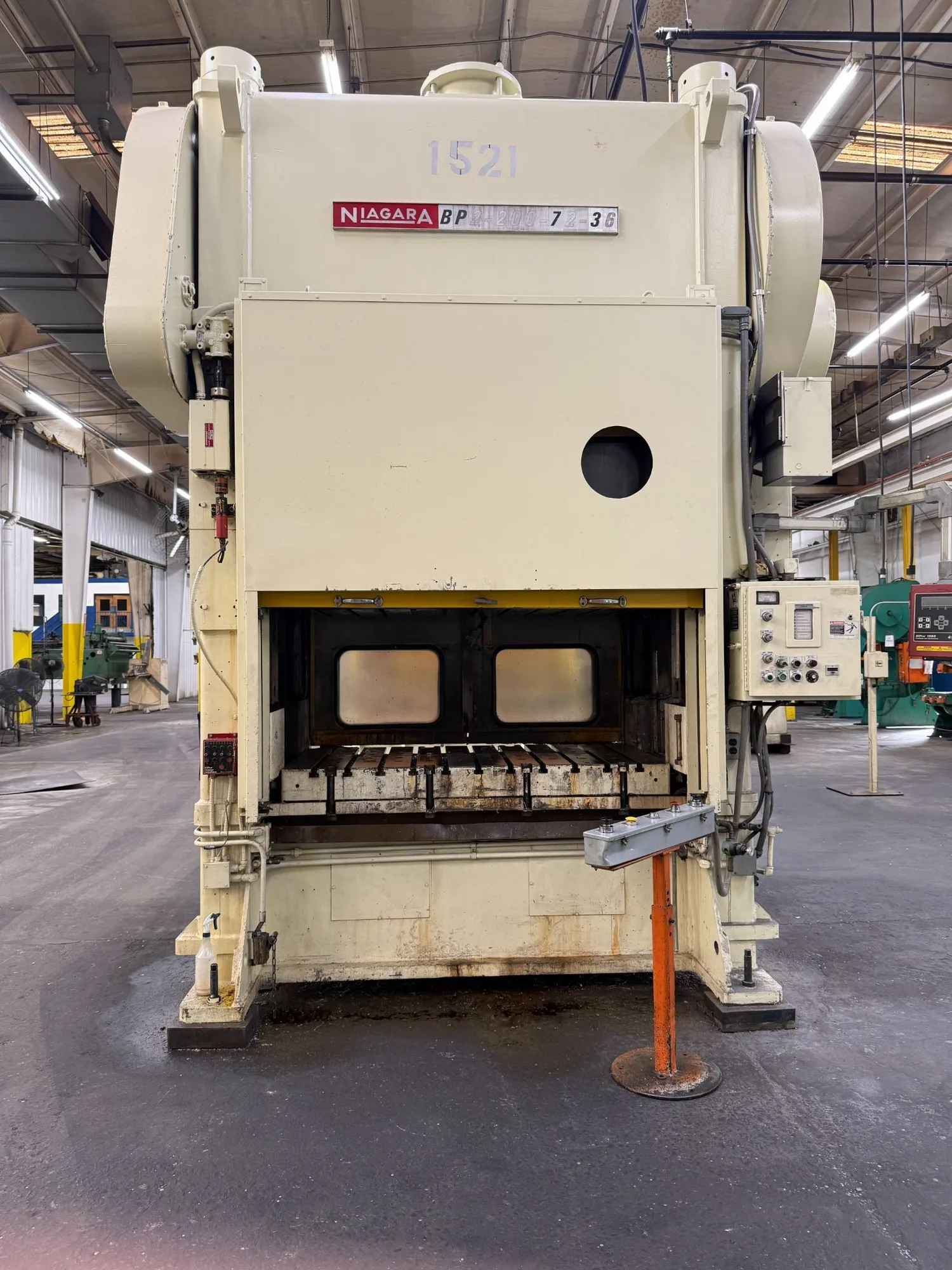

NIAGARA BP2-200-72-36 Straight Side Mechanical Stamping Press available. 200-ton capacity with a 10" stroke and 28" shut height. 40-80 SPM with a spacious bed area of 72" x 36".
| Tonnage | 200 T | 181.437 t |
| Stroke | 10" | 254 mm |
| Shut Height | 28" | 711.2 mm |
| Bed area (Left to right) | 72" | 1,828.8 mm |
| Bed area (Front to back) | 36" | 914.4 mm |
| SPM min. | 40 strokes/min. | 40 strokes/min. |
| SPM max. | 80 strokes/min. | 80 strokes/min. |
| Adjustment | 10" | 254 mm |
Model Number: BP2-200-72-36
Serial Number: 49875
Bed Area: 72” x 36”
Slide Area: 72” x 36”
Stroke: 10”
Strokes per Minute: 40-80
Shut Height: 28” over bed
Shut Height Over Bolster: 22” SDAU
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 10”
Windows: To Be Confirmed
Overall Weight: Approx. 75,000#
Floor Standing
Air Clutch and Brake Assembly
Electro-Pneumatic Air Friction Clutch
Air Releasing Disc Brake
Air Counterbalances
Recirculating Lube System
DC Variable Speed Drive
T-Slotted Ram and Bolster
Dual Ross Air Valve
Motors and Control
Wintriss Die Protection (8 Input)
Wintriss Programmable Outputs
Wintriss Resolver
Trabon Recirculating Oil Lubrication System
8 Point Gibbing
Vibration Isolation Levelers
Motors and Controls
Motorized Ram Adjustment
