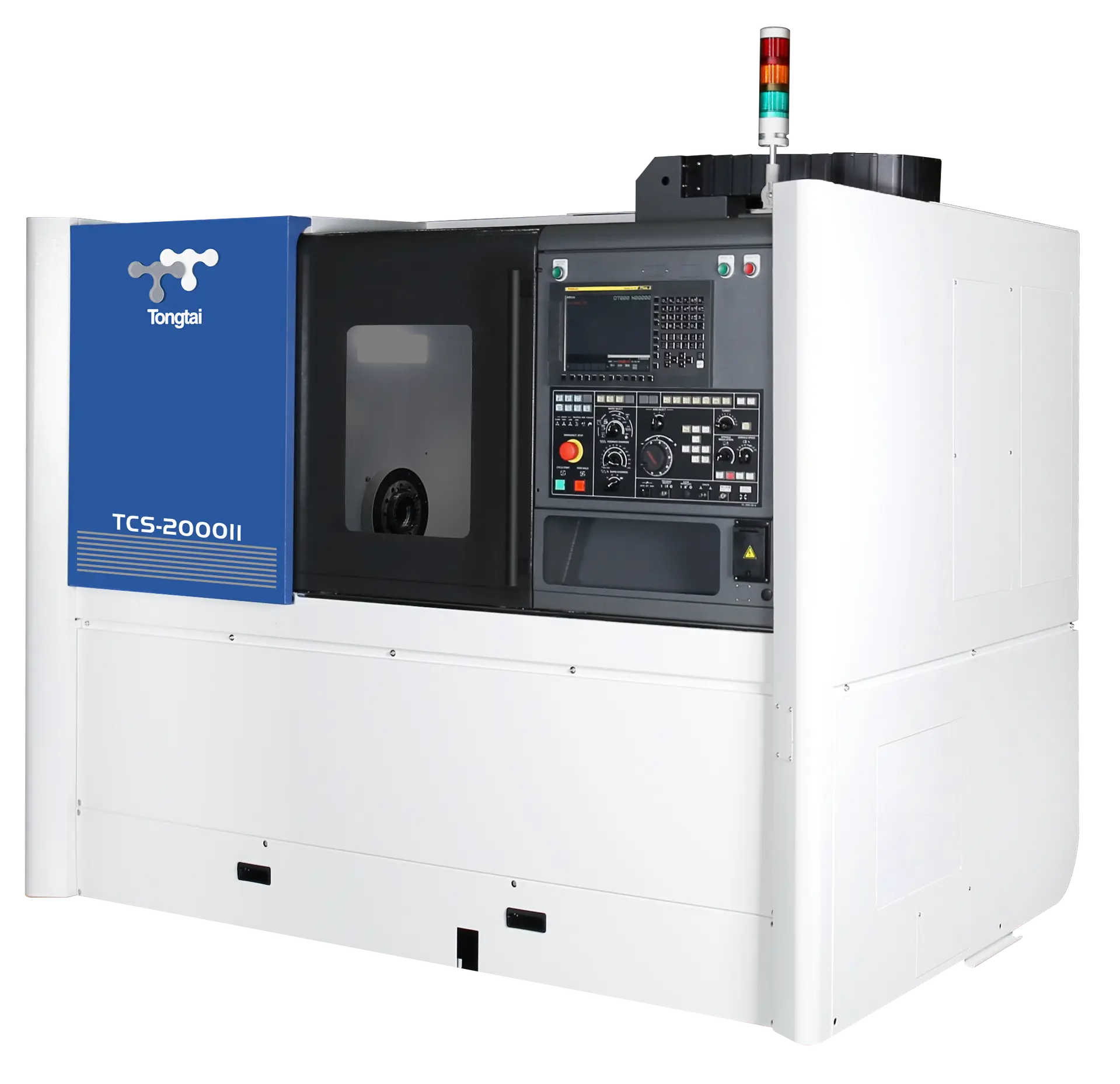

NEW TONGTAI TCS2000(L)-II
Overview
Description
Introducing the new TONGTAI TCS2000-II CNC Turning Center, featuring a max turning diameter of 300 mm and spindle speed of 4,500 RPM. Equipped with FANUC 0i-TF Plus control, an 8" standard chuck, and a 15 kW motor, this single turret 2-axis machine is built for precision and power.
Structure is designed with finite element analysis, enhancing dynamic rigidity and stability. Highly efficient cutting capability. Servo driven turret allows for quick tool changing, reducing non-cutting time. Excellent cost performance value
Specifications
| Max Turning Diameter | 300 mm | 11.811" |
|---|---|---|
| Max Turning Length | 352 mm | 13.858" |
| Standard Chuck Size | 8" | 203.2 mm |
| Standard Bar Capacity | 51 mm | 2.0079" |
| Spindle Nose | A2-6 | A2-6 |
| X/Z Axis Rapid | 30/30 m/min | 30/30 m/min |
| Spindle Speed | 4,500 RPM | 4,500 RPM |
| Motor Output | 15 kW | 20.1 hp |
| X/Z Axis Stroke | 170/400 mm | 170/400 mm |
| CN Control | FANUC 0i-TF Plus | FANUC 0i-TF Plus |
