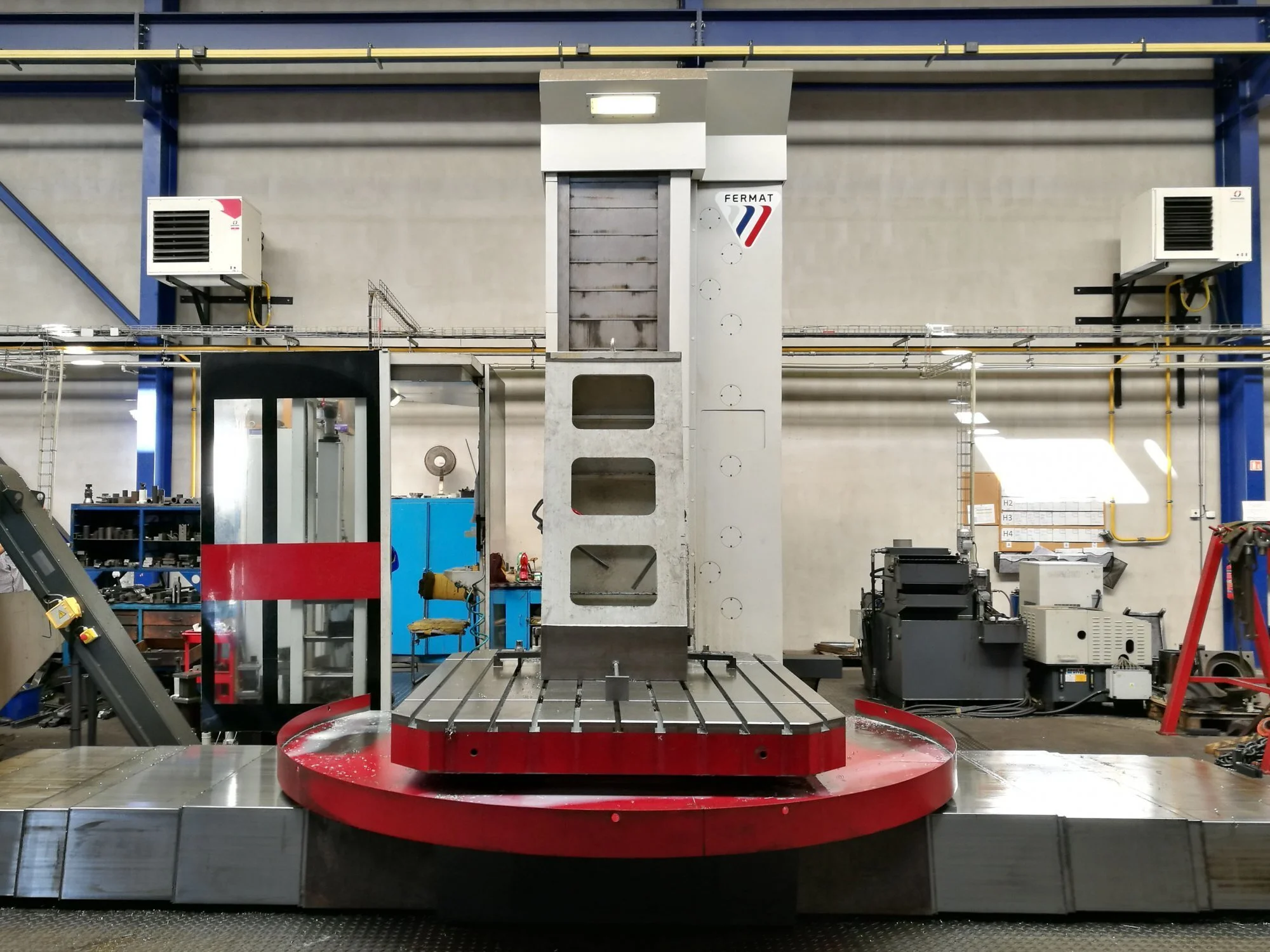

NEW FERMAT WFT-13

Ontario, Canada
496Listings|8Followers
Overview
Horizontal Table Type Boring Mills

Explore precision with a new FERMAT WFT-13 Horizontal Boring Mill. Features 78.7" XY-axis travel, 3000 RPM spindle speed, and 49.6 hp for robust performance. Optional ATC and table upgrades available.

Specs
X--Axis travel
78.74"
2,000 mm
Y--Axis travel
78.74"
2,000 mm
Z-Axis travel
59.055"
1,500 mm
W-Axis travel
31.496"
800 mm
Spindle Diameter
5.1181"
130 mm
B-axis index
360°
360°
Table Size
2000x2000 mm
2000x2000 mm
Table Load Capacity
55,115.5 lb
25,000 kg
Spindle Speed
3,400 RPM
3,400 RPM
Spindle Taper
CAT 50
CAT 50
Tool Magazine Capacity
40
40

Spindle Type: RAM or QUILL TYPE
Optional Table Load: 50,000 kg
Optional Table Size: 3500x3500mm
Optional ATC: up to 120
