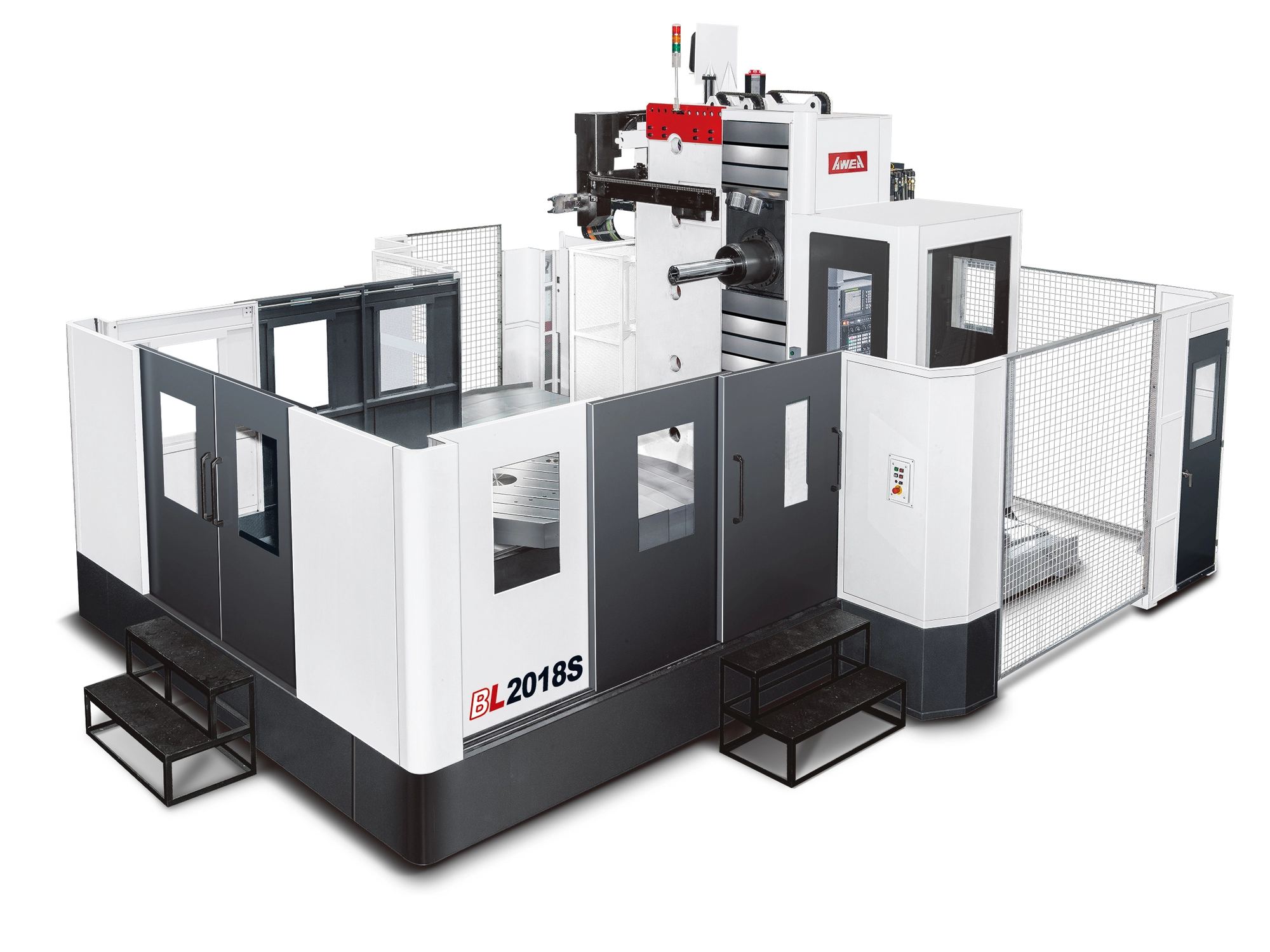

High Rigidity Horizontal Boring Mills
Introducing AWEA with mature manufacturing abilities and advanced technology skills. The BL series combines a high rigidity structure, heavy-duty load capacity rotary table, and a high torque spindle (BL-FM) along with our professional assembly and hand scraping skills. BL series can easily overcome the most stringent requirements of not only deep hole boring but high precision mold milling which meet your various needs for today and the future.
Key Highlights:
✔ Modular spindle design, BL-S quill type 2-step gearbox spindle continuous torque can be 1,308 N-m; BL-FM ram type built-in spindle speed up to 8,000 rpm
✔ High damping, low friction oil floating design working table provides maximum table load capacity at 15,000 kg ( Opt. )
✔ Balanced arrangement of tool magazine and headstock on the column to ensure excellent positioning accuracy
✔ Horizontal boring mills provide better chip removal ability
| X--Axis travel | 3,000 mm | 118.11" |
| Y--Axis travel | 2,400 mm | 94.488" |
| Z-Axis travel | 1,300 mm | 51.181" |
| W-Axis travel | 600 mm | 23.622" |
| Spindle Diameter | 130 mm | 5.1181" |
| B-axis index | 360° | 360° |
| Table Size | 1600x1800 mm | 1600x1800 mm |
| Table Load Capacity | 15,000 kg | 33,069.3 lb |
| Spindle Speed | 2,400 RPM | 2,400 RPM |
| Power | 35 hp | 26.1 kW |
| Spindle Taper | CAT50 | CAT50 |
| Tool Magazine Capacity | 40 | 40 |
| Weight | 66,000 Lbs. | 66,000 Lbs. |
Optional Table Load: 15,000 kg
Optional Table Size: 2400x2400 mm
Optional ATC: 60
