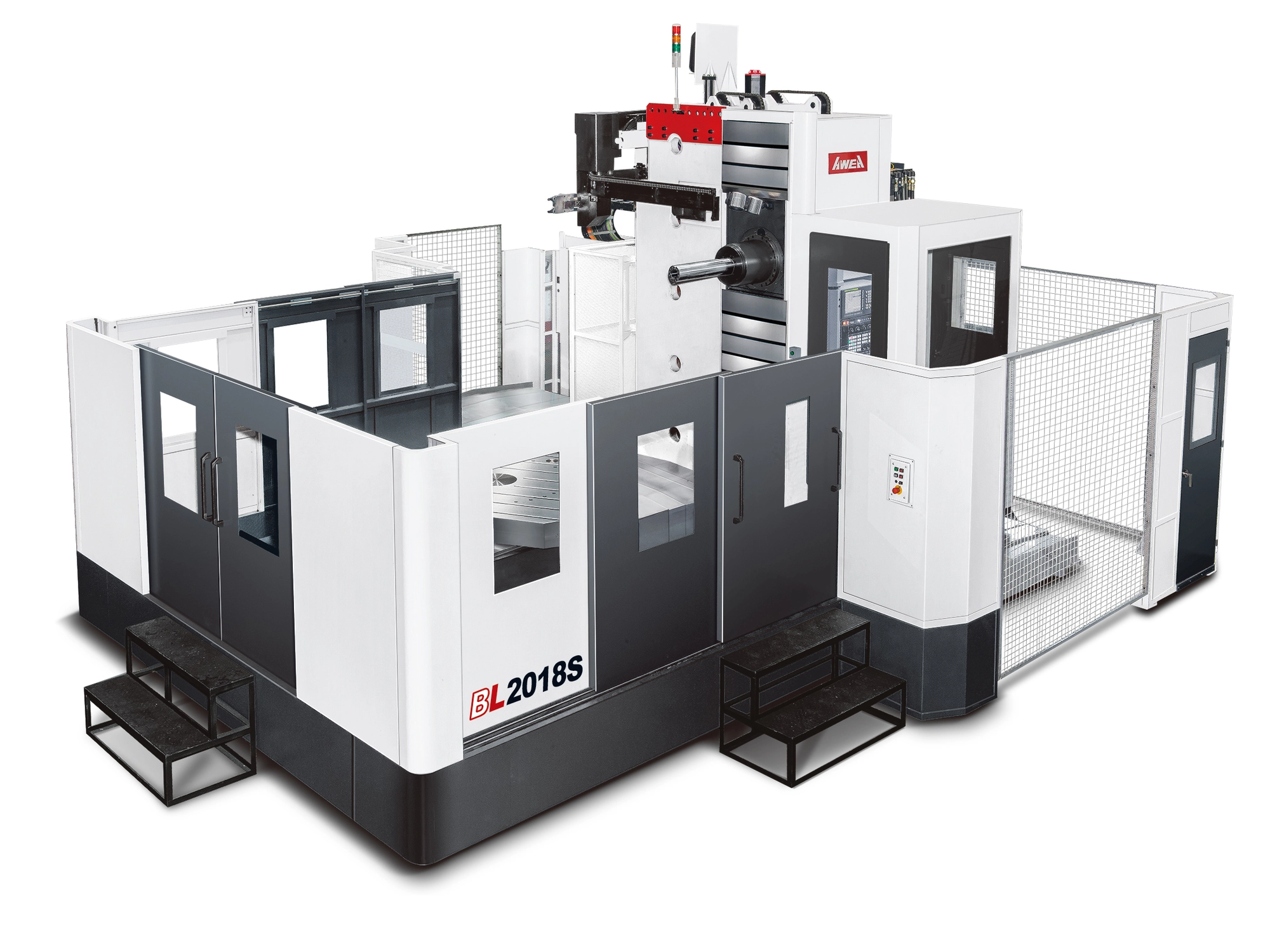

NEW AWEA BL2024-FM/RAM TYPE
Overview
Introducing AWEA with mature manufacturing abilities and advanced technology skills. The BL series combines a high rigidity structure, heavy-duty load capacity rotary table, and a high torque spindle (BL-FM) along with our professional assembly and hand scraping skills. BL series can easily overcome the most stringent requirements of not only deep hole boring but high precision mold milling which meet your various needs for today and the future.
Key Highlights:
• Modular spindle design, BL-S quill type 2-step gearbox spindle continuous torque can be 1,308 N-m; BL-FM ram type built-in spindle speed up to 8,000 rpm
• High damping, low friction oil floating design working table provides maximum table load capacity at 15,000 kg ( Opt. )
• Balanced arrangement of tool magazine and headstock on the column to ensure excellent positioning accuracy
• Horizontal boring mills provide better chip removal ability
Specs
Equipped With
STANDARD ACCESSORIES:
FANUC 0i- MF CONTROL
SPINDLE TEMPERATURE CONTROL SYSTEM
SPINDEL SPEED 8000 RPM BUILT-IN, CERAMIC BEARINGS
TWIN HYDRAULIC COUNTERWEIGHT CYLINDERS
DUAL ARM TYPE AUTO TOOL CHANGE SYSTEM
40 TOOLS CAPACITY MAGAZINE
MOVING STAND ON X AXIS
0,001° INDEXING ROTARY TABLE
LINEAR SCALE FEEDBACK SYSTEM FOR X, Y, Z AXES
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
COOLANT SYSTEM WITH PUMP & TANK
CATERPILLAR TYPE CHIP CONVEYOR AND CHIP BUCKET
RECYCLING LUBRICATING OIL COLLECTOR
AIR GUN AND WATER GUN
FINISH AND ALARM LAMP
WORK LIGHT
RS-232 INTERFACE
MPG REMOTE HANDLE WHEEL
FOUNDATION AND LEVELING KITS
HAND TOOLBOX
OPERATION AND MAINTENANCE MANUAL
ELECTRONIC CABINET &HEAT EXCHANGER
FULL SPLASH GUARD
TRANSFORMER
RIGID TAPPING
COOLANT THROUGH SPINDLE 20 BAR + AIR TROUGH SPINDLE
OPTIONS INCLUDED:
90-DEGREE MANUAL ANGULAR HEAD
RENISHAW RMP-60 PART PROB AND AUTOMATIC TOOL LENGTH MEASURING SYSTEM.
MANUTENTION: DÉCHARGEMENT ET MISE EN PLACE (VALEUR 10,000.00 ~ 11,000.00 $US).
CALIBRATION DE LA MACHINE APRÈS UN AN (ESTIMATION UNE SEMAINE DE TRAVAIL) SANS FRAIS.
