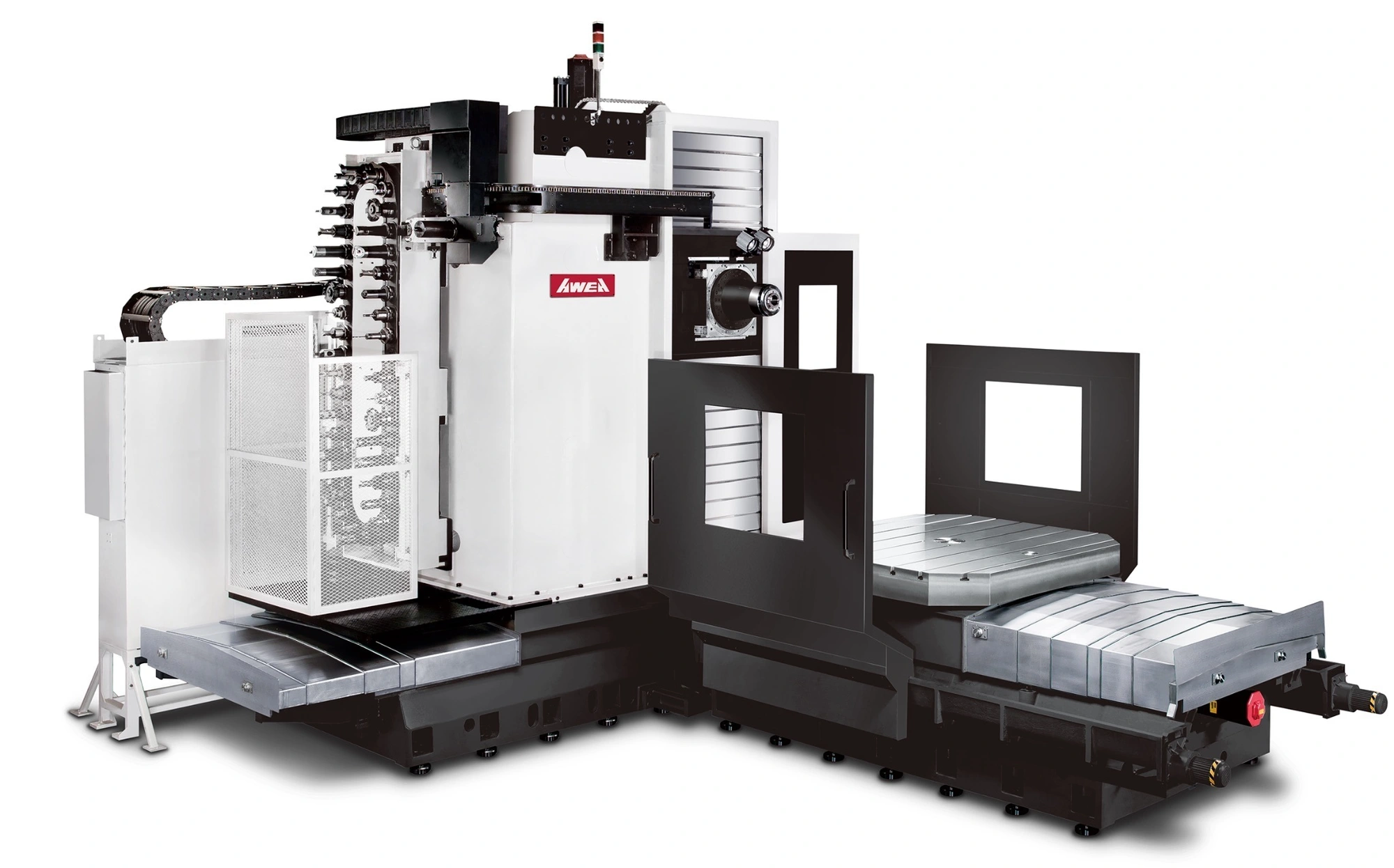

AWEA BL-2018FM Horizontal Boring & Milling Machine
The AWEA BL-2018FM is engineered for power, precision, and productivity. With its super-rigid frame, heavy-duty load capacity, and advanced spindle technology, this horizontal boring and milling machine is built to handle the toughest materials and the largest parts with accuracy and efficiency. Designed for industries like aerospace, energy, transportation, and mold manufacturing, the BL-2018FM combines robust performance with intelligent features to maximize uptime and machining capability.
Key Features:
• X/Y/Z Travel: 2,000 × 1,800 × 1,300 mm with 600 mm W-axis travel
• Ø480 mm boring spindle, CAT50 Big Plus taper, 2-step gear design
• 6,000 RPM spindle speed with 22/26 kW power output
• 1,600 × 1,800 mm rotary table with 15,000 kg load capacity
• FANUC 0i-MF PLUS control with 10.4” LCD and AICCII (200-block lookahead + 2GB data server)
• 40-tool ATC magazine (25 kg max tool weight, 400 mm max tool length)
• 0.0001° indexing rotary table with closed-loop feedback for ultra-precise positioning
• 70 bar coolant-through-spindle with filtration system
• X/Y/Z linear scales for high-accuracy machining
• Operator-friendly design with moving cabin, full guarding, and chip management system
| X--Axis travel | 2,000 mm | 78.74" |
| Y--Axis travel | 1,800 mm | 70.866" |
| Z-Axis travel | 1,300 mm | 51.181" |
| Spindle nose to table center | 885 mm | 34.843" |
| W-Axis travel | 600 mm | 23.622" |
| X/Y/Z Rapid Feedrate | 12,000 mm/min. | 7.9 in/sec. |
| W-Axis Rapid Feedrate | 5,000 mm/min. | 196.9 in/min. |
| Table Size | 1600x1800 mm | 1600x1800 mm |
| Table Load Capacity | 15,000 kg | 33,069.3 lb |
| Boring Spindle Size (RAM) | 480 x 470 | 480 x 470 |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | CAT50 | CAT50 |
| Tool Magazine Capacity | 40 | 40 |
| Max. Tool Length | 400 mm | 15.748" |
| Max. Tool Weight | 25 kg | 55.1 lb |
| CN Control | FANUC 0i-MF PLUS | FANUC 0i-MF PLUS |
| Weight | 31,000 kg | 31,000 kg |
FANUC 0i-MF PLUS WITH 15” LCD DISPLAY
AICCII (200 BLOCKS) + 2GB DATA SERVER
6,000 RPM 2-STEP GEAR SPINDLE, 22/26KW, CAT50 BIG PLUS
40 TOOLS ATC MAGAZINE
70 BAR COOLANT THROUGH SPINDLE, FILTER AND CTS TANK INCLUDED
AIR THROUGH SPINDLE
OIL LUBRICANT SEPERATOR
FULL SPLASH GUARD WITHOUT ROOF
DOOR INTERLOCK
SPINDLE COOLING SYSTEM
CATERPILLAR TYPE CHIP CONVEYOR AND CHIP BUCKET
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
LUBRICANT RECYCLING COLLECTOR
MOVABLE OPERATION CABINET AND STAIRS
0.0001° INDEXING ROTARY TABLE
X/Y/Z LINEAR SCALE
ELECTRICAL CABINET HEAT EXCHANGER
WATER AND AIR GUN
ALARM LIGHT
