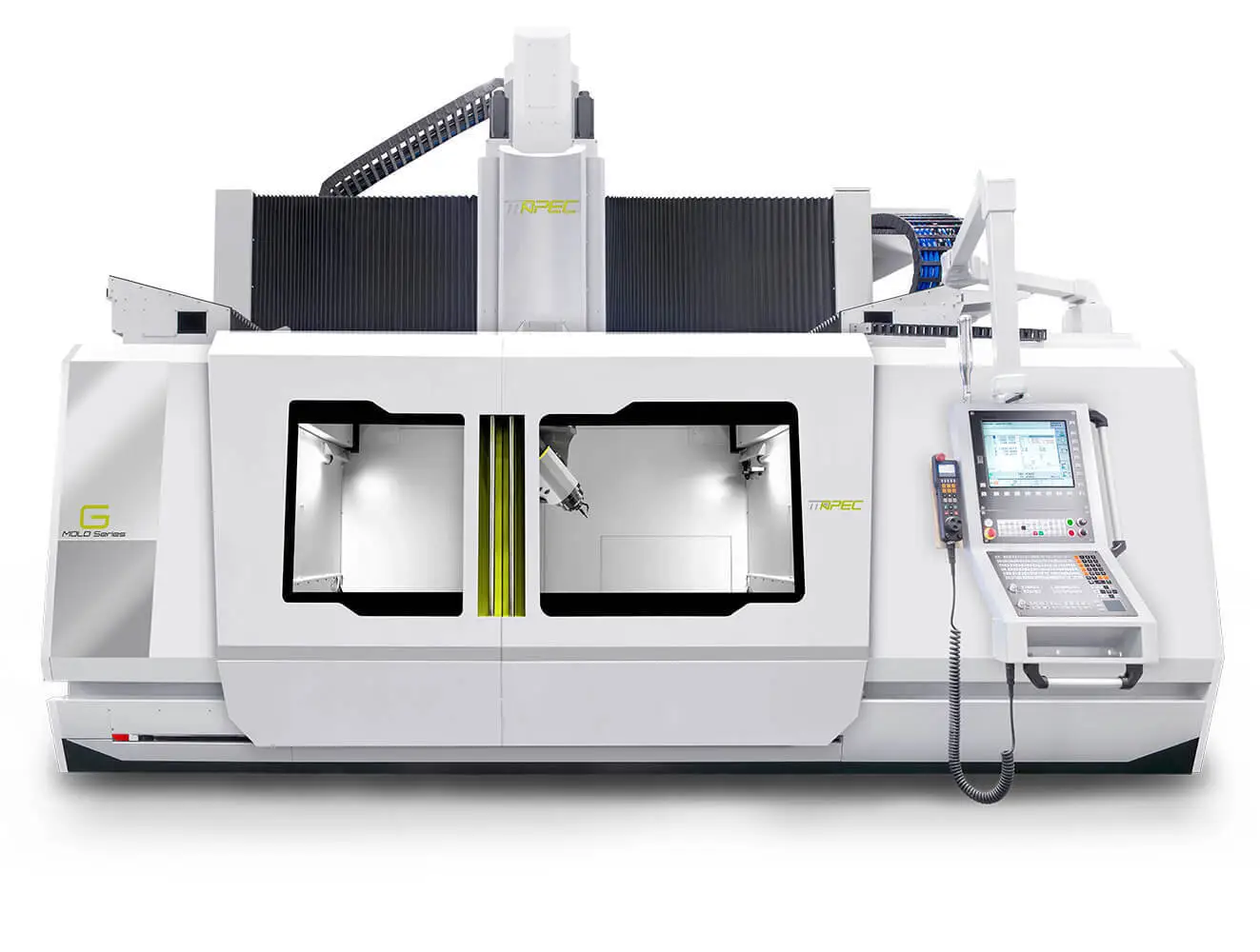

NEW APEC GM3240
Overview
Description
Explore precision with the new APEC GM3240, a 5-axis vertical gantry milling center. Engineered for accuracy and performance in complex machining.
Specifications
| X-Axis Travel | 4,000 mm | 157.48" |
|---|---|---|
| Optional X-Axis Travel | 5,000 | 6,000 | 8,000 mm | 5,000 | 6,000 | 8,000 mm |
| Y-Axis Travel | 3,200 mm | 125.98" |
| Z-Axis Travel | 1,200 mm | 47.244" |
| Optional Z-Axis Travel | 1,500 | 2,000 mm | 1,500 | 2,000 mm |
| Table Size-X | 4,000 mm | 157.48" |
| Optional Table Size-X | 5,000 | 6,000 | 8,000 mm | 5,000 | 6,000 | 8,000 mm |
| Table Size-Y | 3,200 mm | 125.98" |
| Dist. Spindle Nose to Table | 1,500 mm | 59.055" |
| Table Load Capacity per sqm | 8 T | 7,257.5 kg |
| Spindle Speed | 24,000 RPM | 24,000 RPM |
| Spindle Taper | HSK A63 or HSK A100 | HSK A63 or HSK A100 |
| Milling Head Type | Mono Head (Fork Head or Universal Head) | Mono Head (Fork Head or Universal Head) |
| Optional ATC | 40 | 60 | 40 | 60 |
| A-axis Swivel Angle (±) | 120° | 120° |
| C-axis Rotation | 360° | 360° |
| ATC | 30 | 30 |
| CN Control | Heidenhain TNC640 | Heidenhain TNC640 |
