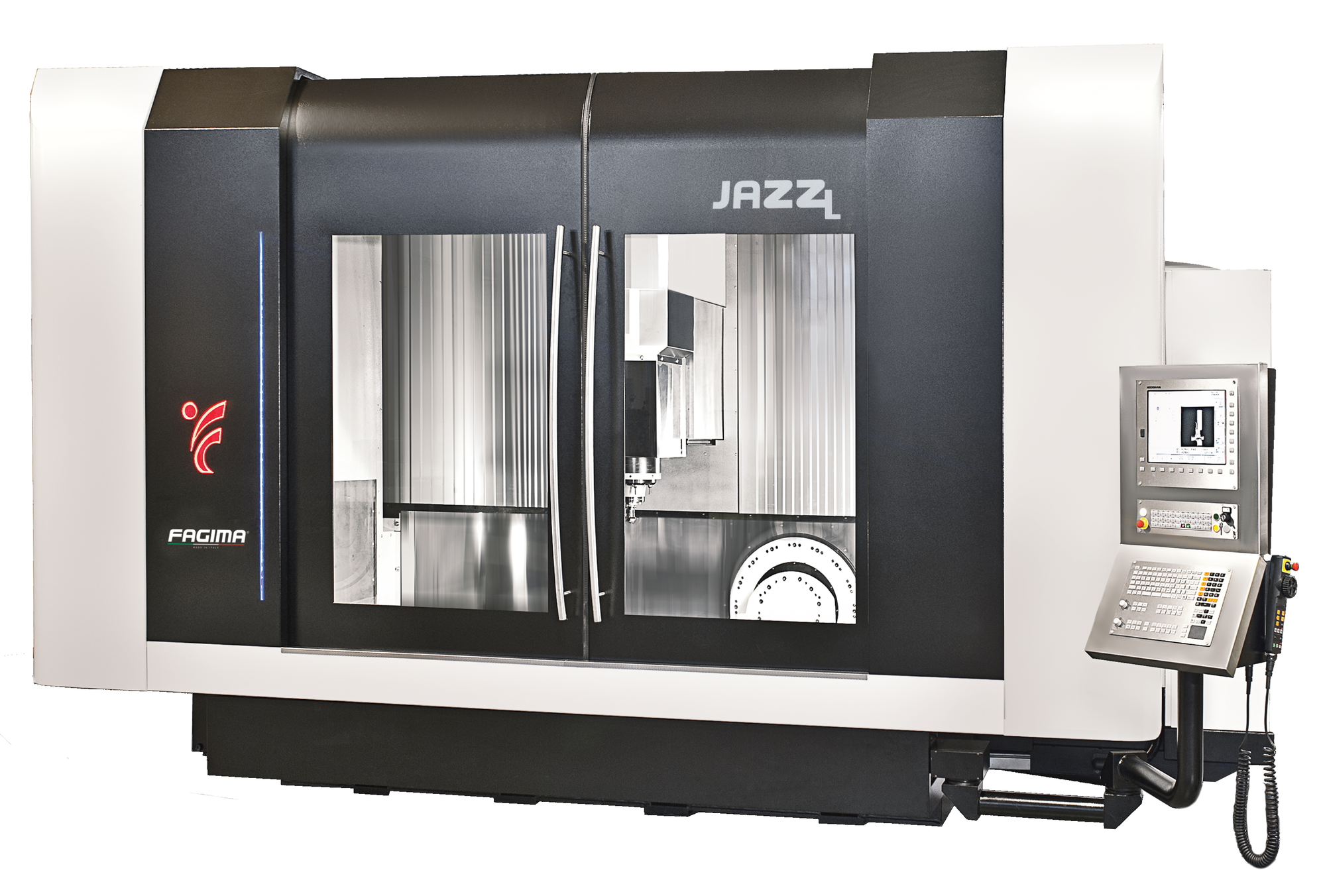

JAZZ L 5 AX enhances the versatility of the JAZZ series, offering benefits for users with its fixed table and swivel rotary table configuration. The machine features innovative guarding design for a high-quality finish, including sliding front doors for easy access to the spacious working area. Users can configure two machining areas with options like a central wall and an additional tool magazine. The main structures are crafted using the DMP technique, ensuring high dynamical stability, non-deformability over time, minimal vibration, and reduced thermal generation, optimizing performance and longevity.
Key specifications:
✔ Versatile combination of fixed and swivel rotary tables
✔ Frontal and lateral doors for enhanced accessibility
✔ Compatible with automatic pallet change systems
Key Highlights:
✔ Robust base frame made with DMP technique
✔ Balances workspace dimensions with varied working solutions
✔ Maintains dynamical stability, non-deformability, and minimal vibration for optimal machining performance
| X-Axis Travel | 2,000 mm | 78.74" |
| Y-Axis Travel | 650 mm | 25.591" |
| Z-Axis Travel | 550 mm | 21.654" |
| Table Size-X | 600 mm | 23.622" |
| Table Size-Y | 600 mm | 23.622" |
| Table Load Capacity | 500 kg | 1,102.3 lb |
| Standard Spindle Taper | CAT40 | CAT40 |
| Optional Spindle Taper | HSK A63 | HSK A63 |
| Standard Spindle Speed | 12,000 RPM | 12,000 RPM |
| A-axis swivel | 110° | 110° |
| C-axis rotation | 360° | 360° |
| Tool Magazine Capacity | 40 | 40 |
| # Axis | 5 | 5 |
| CN Control | Heidenhain | Siemes | Fanuc | Heidenhain | Siemes | Fanuc |
ATC Option: 60 | 120 Tools
Spindle Speed Options: 15,000 | 16,000 | 24,000 RPM
Trunnion Rotary Table Diameter - 600 mm
