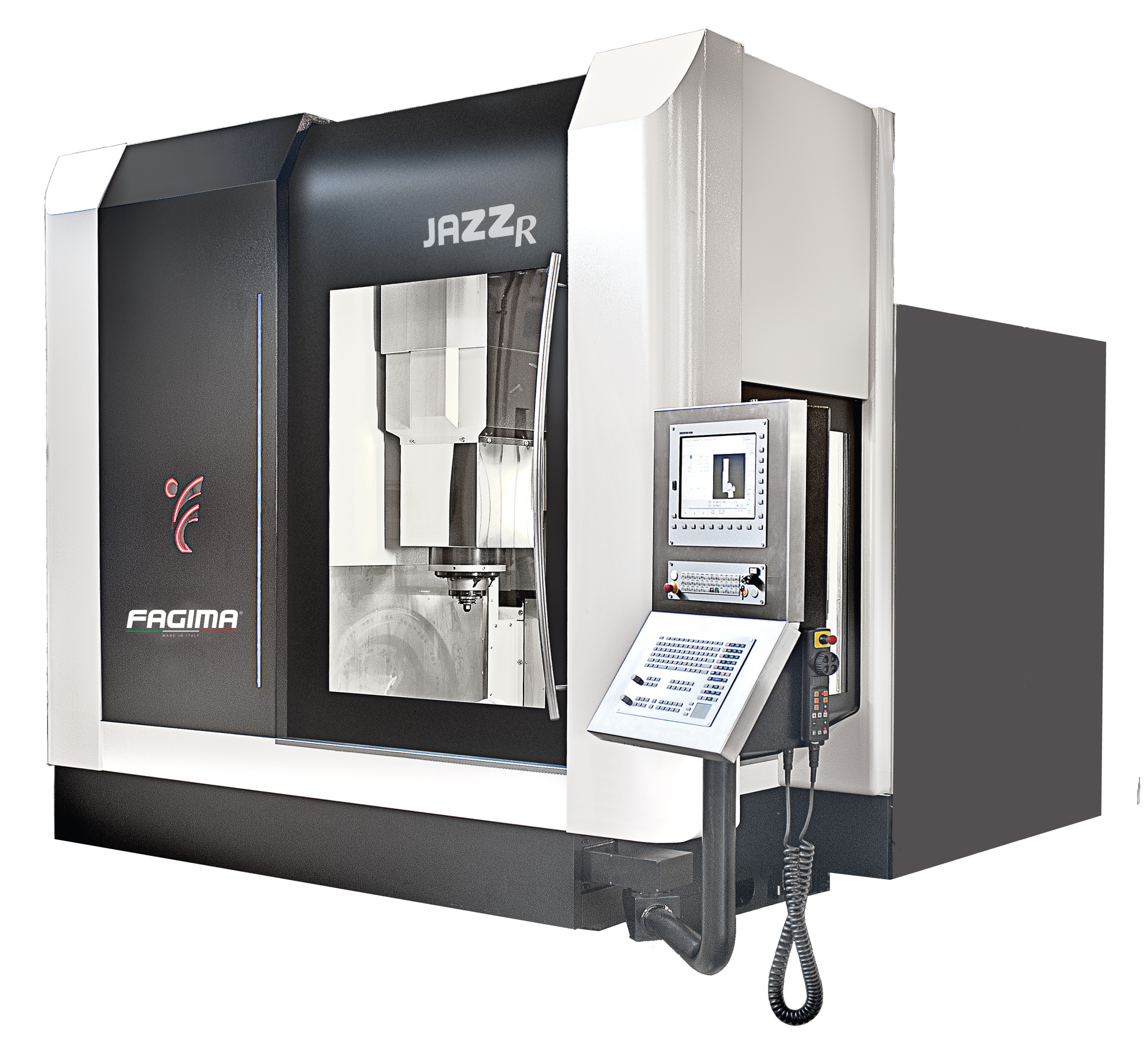

The JAZZ R 5 AX, Fagima's compact 5-axis machine, features a single swivel rotary table and fully guarded CNC technology. It offers enhanced accessibility with sliding front access and an additional door on the right side for component loading onto the rotary table, ideal for automation structures utilizing a pallet change system. Fagima provides various solutions for specific applications, including special tool magazines to supplement the standard 40-position one.
Key Features:
✔ Single swivel rotary table
✔ Fully guarded CNC machine
✔ Handling multiple workpieces simultaneously
✔ Combines turning and milling operations for cylindrical workpieces, with a tailstock for better support and accuracy.
✔ Compatible with automation structures and pallet change systems
✔ Options for special tool magazines
Key Highlights:
✔ Compact design suitable for limited spaces
✔ Enhanced accessibility for efficient component loading
✔ Flexible configurations for specific applications
✔ Main structures made with DMP technique for optimized mechanical characteristics
| X-Axis Travel | 650 mm | 25.591" |
| Y-Axis Travel | 650 mm | 25.591" |
| Z-Axis Travel | 550 mm | 21.654" |
| Table Size-X | 600 mm | 23.622" |
| Table Size-Y | 600 mm | 23.622" |
| Table Load Capacity | 500 kg | 1,102.3 lb |
| Distance from spindle nose to table top | 720 mm | 28.347" |
| Standard Spindle Taper | CAT40 | CAT40 |
| Optional Spindle Taper | HSK A63 | HSK A63 |
| Standard Spindle Speed | 12,000 RPM | 12,000 RPM |
| A-axis swivel | 110° | 110° |
| C-axis rotation | 360° | 360° |
| Tool Magazine Capacity | 40 | 40 |
| # Axis | 5 | 5 |
| CN Control | Heidenhain | Siemes | Fanuc | Heidenhain | Siemes | Fanuc |
ATC Option: 60 | 120 Tools
Spindle Speed Options: 15,000 | 16,000 | 24,000 RPM
Trunnion Rotary Table Diameter - 600 mm
