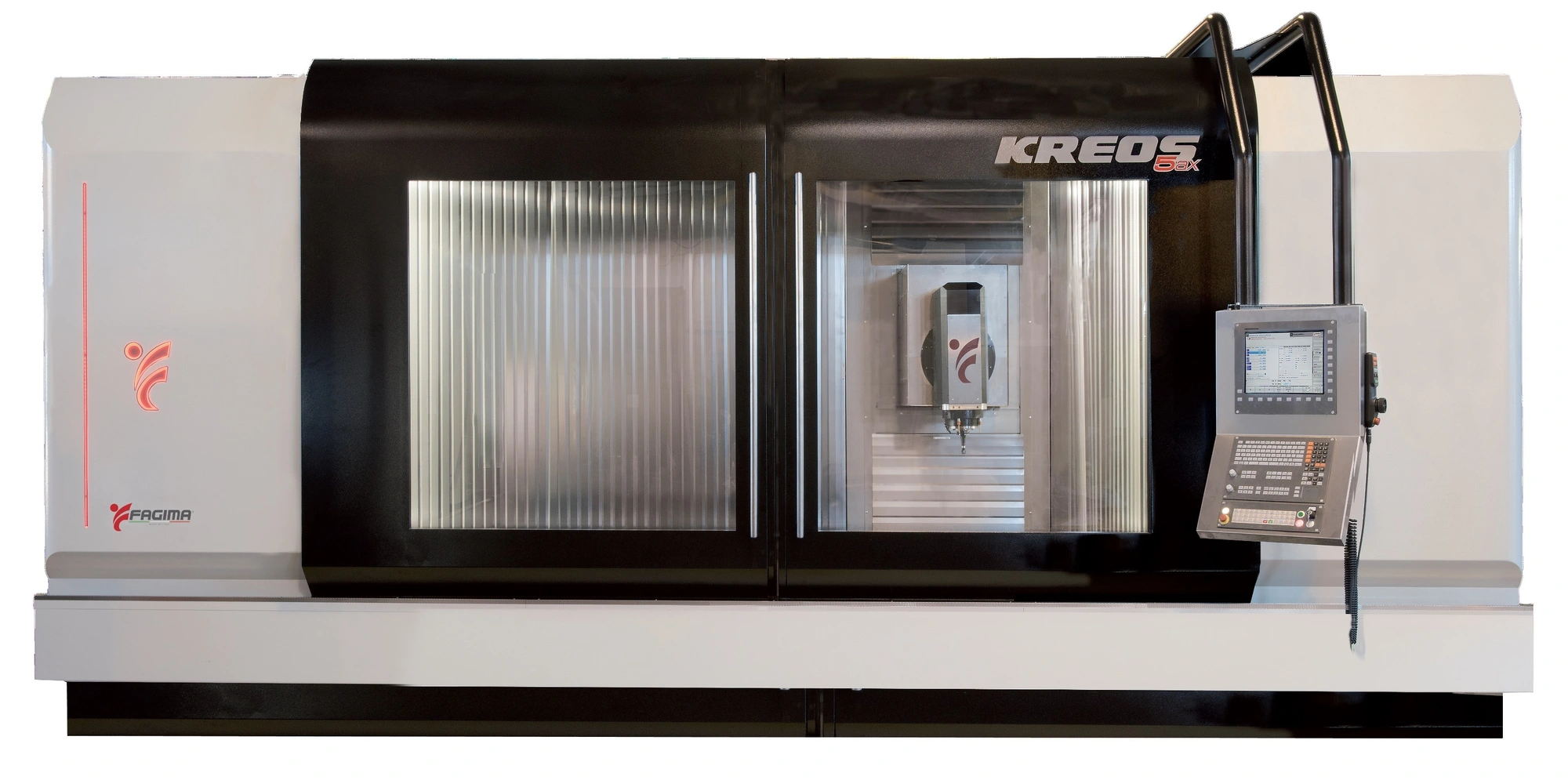

NEW FAGIMA KREOS 5-axis
Overview
Description
KREOS, a machining center by FAGIMA, draws on extensive expertise to meet diverse customer needs. With its compact size, it boasts high stiffness and strength, coupled with agility and speed in machining.
Designed for the market segment with demand for 5-axis moving column machines, it offers two standard X axis options (2700 and 4000 mm), with Y and Z axes strokes of 830 mm and 850 mm respectively. Its elegant design incorporates innovative components while minimizing overall dimensions. The monolithic base ensures high loading capacity without complex foundations, with the column holder-carriage sliding on roller guideways across all axes. Inside the column, the tool changer and exchange arm optimize efficiency.
With predominantly Italian components and customizable configurations, KREOS stands out for its adaptability to individual customer needs, including optional extra-strokes on the X axis.
Key Features:
✔ Multi-function CNC machine with both Milling and Turning capabilities
✔ Handling multiple workpieces simultaneously
✔ Two Embedded Rotary Table Available
✔ High dynamical stability of the machine
✔ Non-deformability over time
✔ Minor vibration in the tool contact area
✔ Minor thermal generation in the tool/piece area
Specifications
| X-Axis Travel | 4,000 mm | 157.48" |
|---|---|---|
| Y-Axis Travel | 830 mm | 32.677" |
| Z-Axis Travel | 850 mm | 33.465" |
| Table Size-X | 4,100 mm | 161.42" |
| Table Load Capacity per sqm | 1,500 kg | 3,306.9 lb |
| Distance from spindle nose to table top | 1,130 mm | 44.488" |
| Standard Spindle Taper | CAT40 | CAT40 |
| Optional Spindle Taper | HSK A63 | HSK A63 |
| Standard Spindle Speed | 12,000 RPM | 12,000 RPM |
| A-axis swivel | 120° | 120° |
| C-axis rotation | 360° | 360° |
| Tool Magazine Capacity | 42 | 42 |
| # Axis | 5 | 5 |
| CN Control | Heidenhain | Siemes | Fanuc | Heidenhain | Siemes | Fanuc |
X-axis Travel Options - 2,700 mm
ATC Option: 60 | 120 Tools
Spindle Speed Options: 16,000 | 24,000 RPM
Embedded Rotary Table Diameter Option - 650 mm
Secondary Embedded Rotary Table Diameter Option - 650 mm
