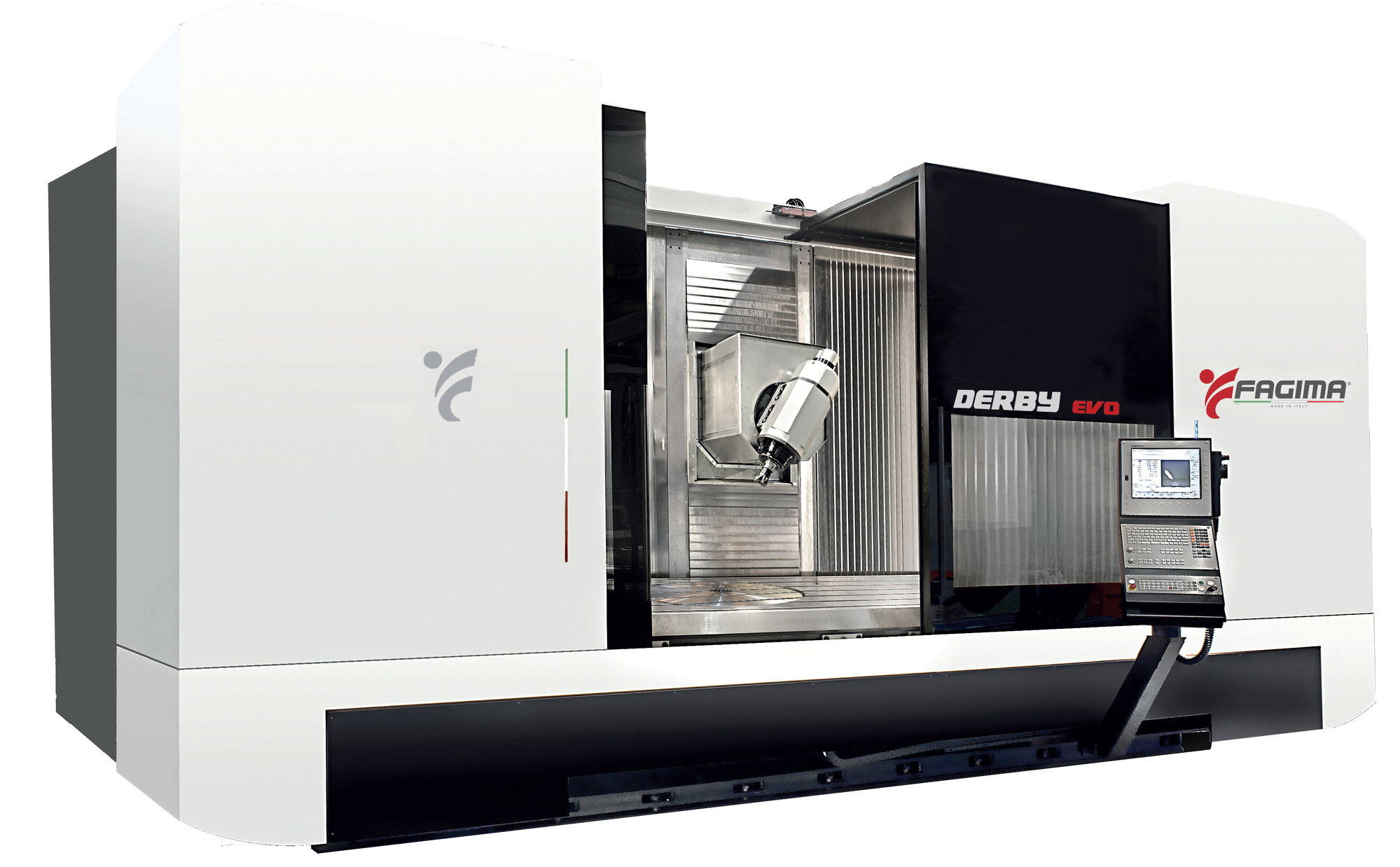

NEW FAGIMA DERBY EVO 5-axis
Overview
Description
DERBY EVO, born from Fagima's extensive experience in machining center construction, stands out as a top choice in today's market. Its design, meticulously crafted with modern systems, ensures high rigidity and eliminates fall on the Y axis. Rapid accelerations enable reduced cycle times, especially for larger pieces. Available in 3 versions with different X axis strokes, the 300 version offers optimal balance.
The structure features a monolithic base made of enriched mineral casting, providing high loading capacity without complex foundations. The column-holder carriage slides on roller guideways, ensuring smooth operation across all axes. Inside the column, a tool changer and exchange arm are housed, with a standard tool magazine offering 42 positions (expandable to 60). The column is engineered for maximum spindle-holder head rigidity.
Elegantly styled with front sliding doors, DERBY EVO maintains a clear separation between dry and wet working areas. Its standard configuration allows for extensive expansion and customization, such as the turning/milling kit, positioning it at the forefront of innovation and distinguishing it from competitors.
Key Features:
✔ Multi-function CNC machine with both Milling and Turning capabilities
✔ High dynamical stability of the machine
✔ Non-deformability over time
✔ Minor vibration in the tool contact area
✔ Minor thermal generation in the tool/piece area
Specifications
| X-Axis Travel | 4,000 mm | 157.48" |
|---|---|---|
| Y-Axis Travel | 1,000 mm | 39.37" |
| Z-Axis Travel | 1,000 mm | 39.37" |
| Table Size-X | 4,200 mm | 165.35" |
| Table Size-Y | 1,000" | 25,400 mm |
| Table Load Capacity per sqm | 2,500 kg | 5,511.6 lb |
| Distance from spindle nose to table top | 1,025 mm | 40.354" |
| Standard Spindle Taper | CAT40 | CAT40 |
| Optional Spindle Taper | CAT50 | HSK A63 | HSK A100 | CAT50 | HSK A63 | HSK A100 |
| Standard Spindle Speed | 12,000 RPM | 12,000 RPM |
| A-axis swivel | 120° | 120° |
| C-axis rotation | 360° | 360° |
| Tool Magazine Capacity | 42 | 42 |
| # Axis | 5 | 5 |
| CN Control | Heidenhain | Siemes | Fanuc | Heidenhain | Siemes | Fanuc |
X-axis Travel Options - 3,000 mm | 2,000 mm
ATC Option: 60 Tools
Spindle Speed Options: 8,000 | 10,000 | 15,000 | 18,000 | 24,000 RPM
Embedded Rotary Table Diameter Option - 800 mm
