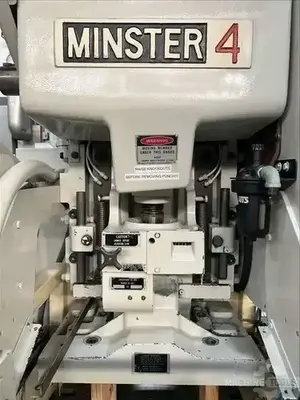

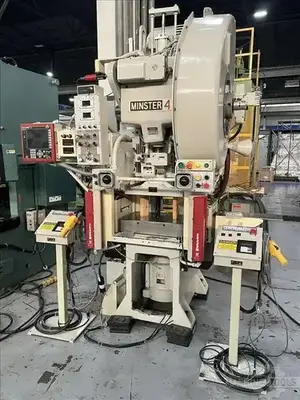

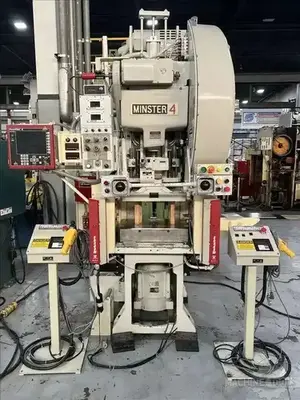

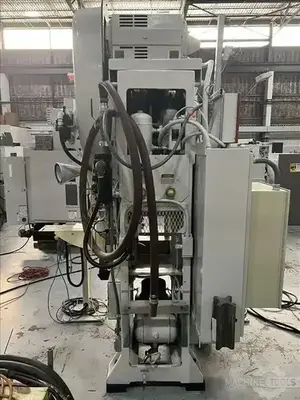

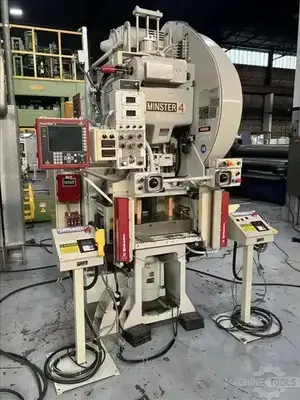

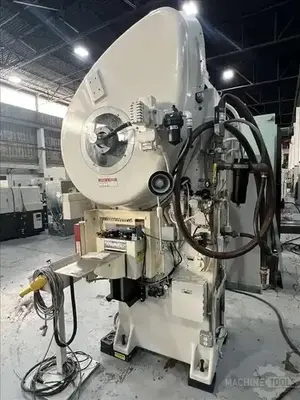

Minster 4SS Fixed Base Single-Point Gap Frame Press
| Tonnage | 32 T | 29.03 t |
| Stroke | 3" | 76.2 mm |
| Air Clutch (Yes/No) | Yes | Yes |
Tonnage Capacity: 32 Ton

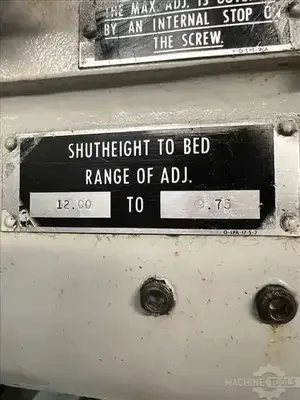

Shut Height on Bed (SDAU): 12"
Stroke Length: 3"
Max. Stroke Speed: 180 SPM
Throat: 9.5"
Slide Adjustment: 2.25"

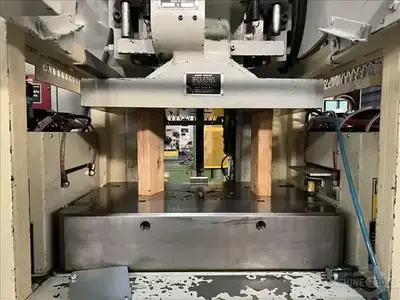

Bolster Area (L-R x F-B): 16" x 24"
Bolster Thickness: 5"
Bed Opening: 12" x 16"
Back Opening Width: 13.5"
Flanged Side Area: 12" x 20"
Air Cushion Diameter: 12"
Max. Air Cushion Draw: 3.5"
Main Motor: 3 HP

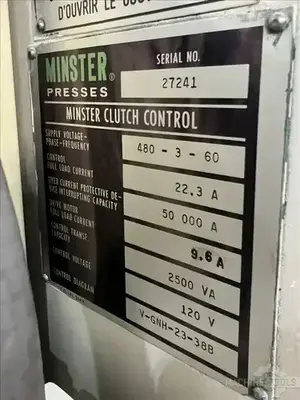

Electrical: 480V/3Ph/60Hz
Servo Feed Capacity: 6"W x 0.125"

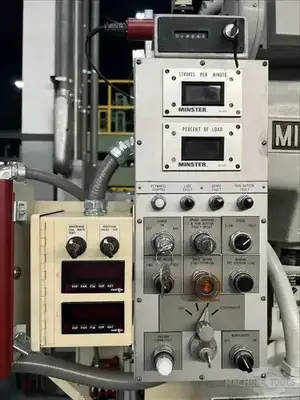

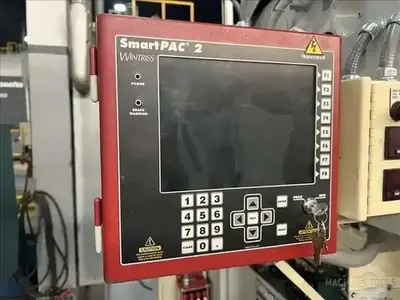

Wintress Smart Pac 2 Control
Wintress Autoset 1500 Load Analyzer
Air Clutch & Brake

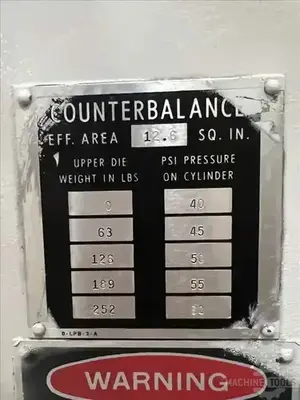

Air Counterbalance

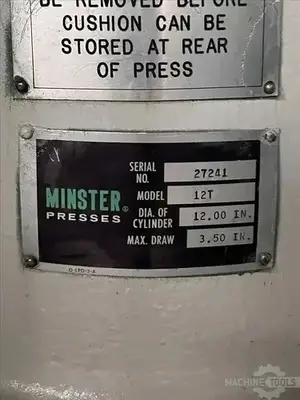

Air Cushion Model 12T

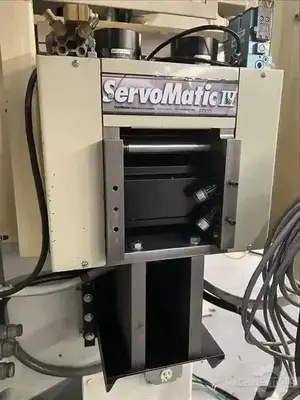

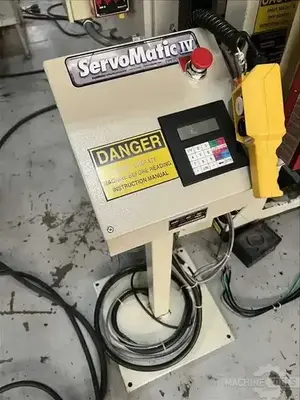

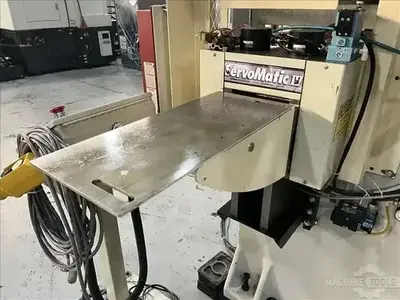

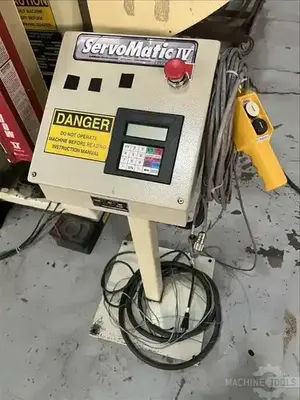

COE Servomatic IV Push Pull Servo Feeds
Press Mounted Dual-Palm Buttons
(8) Programmable CAM Outputs
Keyed Selector Switch (Inch/Single/Cont.)
Variable Speed Motor
Knockout in Slide
Unisorb Level-Rite Mounts
