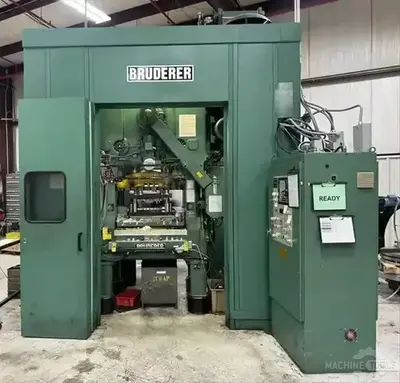

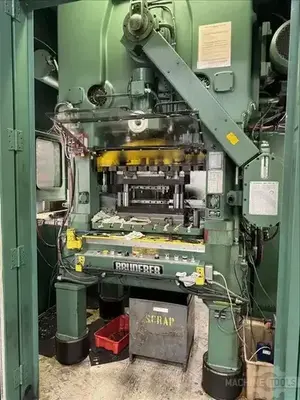

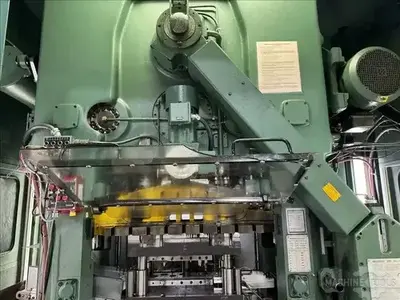

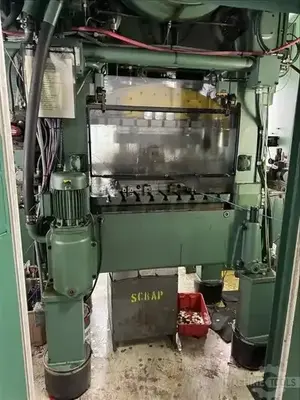

Bruderer BSTA 60IIHL High Speed Stamping Press
| Tonnage | 60 T | 54.431 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 9.31" | 236.47 mm |
| SPM | 100 - 1120 | 100 - 1120 |
| Bed W | 25.5" | 647.7 mm |
| Bed L | 36.63" | 930.4 mm |
Tonnage Capacity: 60 Ton
Adjustable Stroke: 0.625" - 2.5" (7 Positions)
Stroke Speed: 100 - 1120 SPM
Ram Adjustment: 2.5"
Shut Height (w/ 0.625" Stroke Length): 13” - 15.6”
Shut Height (w/ 2" Stroke Length): 12.3” - 14.9”
Lower Clamping Plate (R-L x F-B): 37" x 25.6"
Upper Clamping Plate (R-L x F-B): 31.9" x 16.5"
Bed Opening (L-R x H): 35.8" x 7.9"
Max. Strip Width Clearance: 10"
Strip Running Height From Clamping Plate: 2.4" - 5.5"
Max. Tool Width Clearance Between Columns: 37.4"

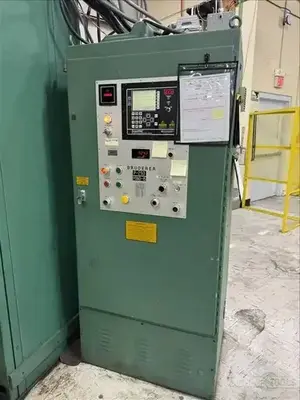

Bruderer Press Automation Control
Bruderer BBV 202/120 Feed
Stroke Change Tool

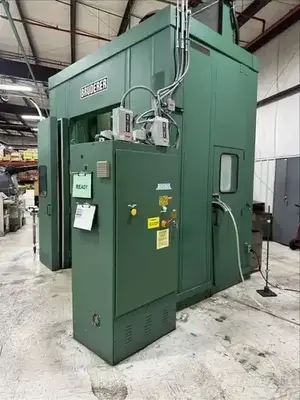

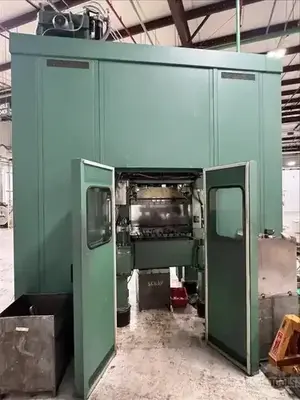

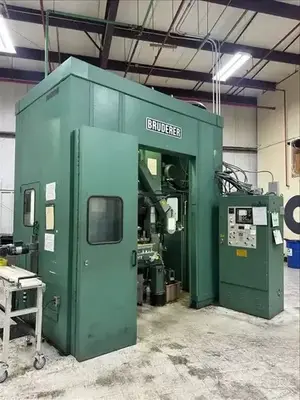

Sound Enclosure
4” Riser Block on Columns
