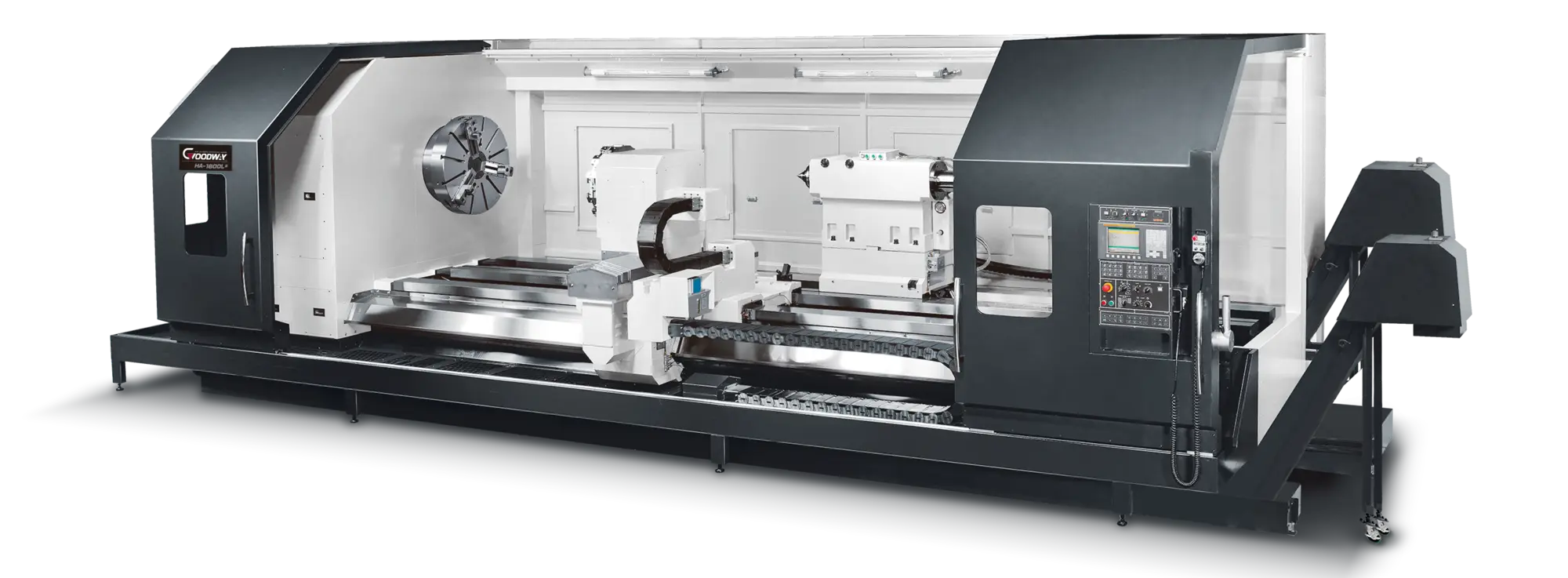

Meet the NEW GOODWAY HA-1400 Flat-bed CNC, built for uncompromising power and precision. With a maximum swing diameter of 1,400 mm and a turning length of 2,000 mm, this machine is engineered to handle super large-size workpiece applications with ease. Equipped with the reliable FANUC 0i-TF PLUS CNC controller, the HA-1400 delivers seamless operation and outstanding performance in the most demanding environments.
Designed specifically for industries such as oil & energy, aerospace, shipbuilding, and metallurgy, this heavy-duty CNC turning center combines rigid four box way bed construction, 3-step gear spindle, and a servo indexing turret to deliver superior torque, accuracy, and long-term durability.
Key Features:
• Massive Capacity: Swing diameter up to 1,400 mm and 2,000 mm turning length for oversized parts.
• Rigid Construction: One-piece flatbed casting with 4-box way design ensures maximum stability and support for heavy-duty operations.
• High Torque Output: 3-step gear spindle provides exceptional torque at low speeds—ideal for high-load cutting.
• Precision Engineering: Optimized X-axis saddle, turret, and tailstock design enhance structural integrity and machining accuracy.
• Smart Chip Management: Z-axis twin chip conveyors with a large separated coolant tank for clean, efficient performance.
• Versatile Options: Available with optional 4-way toolpost, live tooling center, C-axis, boring tooling, and high-rigidity steady rest for complex machining, including turning, milling, and drilling.
Upgrade your shop with the GOODWAY HA-1400 CNC lathe, a top choice for heavy-duty CNC machining, flat-bed turning centers, and large-scale industrial applications. Built to power through today’s toughest challenges—and ready for tomorrow.
Financing options available. Contact us today to learn more.
| Swing Over Saddle | 1,000 mm | 39.37" |
| Max Swing Diameter | 1,400 mm | 55.118" |
| Max Turning Diameter | 1,100 mm | 43.307" |
| Max Turning Length | 2,000 mm | 78.74" |
| Spindle Center Height (from ground) | 1,525 mm | 60.039" |
| Flat Bed Height | 815 mm | 32.087" |
| Flat Bed Width | 1,350 mm | 53.15" |
| Standard Spindle Nose | A2-15 | A2-15 |
| Table Load | 15,000 kg | 33,069.3 lb |
| Transverse Travel (X) | 595 mm | 23.425" |
| Longitudinal Travel (Z) | 2,000 mm | 78.74" |
| Standard Spindle Speed | 800 RPM | 800 RPM |
| CN Control | Fanuc 0i-TF PLUS | Fanuc 0i-TF PLUS |
FANUC 0i-TF PLUS WITH 10.4" LCD SCREEN
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
BOX GUIDWAYS ON ALL AXES
TAIWAN MADE HYDRAULIC CYLINDER (NONE HOLE THROUGH)
40" TAIWAN MADE 3 JAWS CHUCK WITH ONE SET OF SOFT JAW (NON-THROUGH HOLE)
12 STATION STANDARD TURRET WITH TOOL HOLDER PACKAGE (LS-PCBB)
CLAMPING PIECE (CA-3044/ CA-3045, (3 PCS OF EACH)
2 SETS x OD TOOL HOLDER (LE-4095
- 1 SET x FACING TOOL HOLDER (CA-3052)
- 6 SETS x ID TOOL HOLDER (CA-3070
- 1 SET x DRILL SOCKET(CA-3041A/B) MT4/ MT5
- 1 SET x BORING BAR SLEEVE (CA-3042A/B/C) DIA. 32/ 40/ 50
- 1 SET x BORING BAR SLEEVE (CA-3043A/B) DIA. 20/ 25
- 1 SET x THROW-AWAY DRILL SOCKET (CA-30A2A/B/C) DIA. 32/40/50
MAIN SPINDLE ALPAH 40 (37/45KW) MOTOR WITH 3 SPEED GEAR BOX
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
13 COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
14 ELECTRIC CABINET HEAT EXCHANGER
15 FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
MANUAL STEADY REST (CLAMPING RANGE 300-450MM) HALF MOON
TYPE LP3 PROGRAMMABLE TAIL STOCK (QUILL FOR DEAD CENTER MT6)
CHIP CART
OPERATION & MAINTENANCE MANUALS
