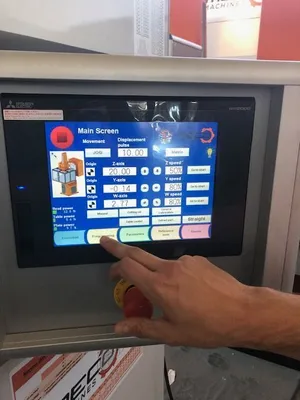

NEW 2025 MECO MECO MEC-70 AUTO

MECO MEC 70 AUTO, Max Workpiece Height 13.4", Blind Holes Yes, Manual index of Rotary Table
MECO MEC-1 was the first vertical keyseater with a tool-width length of cut. Twenty years later, MECO has set up more than 500 units in 30 countries and has improved its keyseaters to levels of efficiency, speed, and precision that place them at the forefront of the world, among the largest manufacturers of powerful multinational industrial groups.

Machine Dimensions
• A(Maximum Width with doors open): 1450mm 57.1"
• A' (Maximum width, doors closed): 975 mm 38.4"
• B (Maximum Depth of the machine): 1298 mm 51.1"
• C (Maximum Higher of the machine): 2140 mm 84.25"
• D (Maximum diameter of the sample): 600 mm 23.63"
• E (Total working area): 378 mm 14.88"
• (Machine Weight): 810 kg 1,786 lbs

Specifications of the Z Axis (automatic)
• Maximum Speed Z Axis 10 m/min
• Total Stroke Z Axis 378 mm 14.88"
• Total Engine Power Z axis 2 kW
• Maximum Working Force 34 kN
• Reduction ratio 40:1

Specifications of the Y Axis (automatic)
• Maximum Speed Y Axis 2 m/min
• Stroke in the Y Axis in + 76 mm
• Total Engine Power Y axis 400W
• Maximum Working Force 46kN
• Reduction ratio 10:1

Specifications of the W Axis (manual)
• Total degrees rotation w 360º
• Dimensions of rotary plate Ø 360 mm
• It has a calibrated Nonius and brake
for blocking the plate to the desired degree.
• Preset divisions for 2, 3, 4, 5, 6, 7, 8,
10, 12, 14, 16 slots.

WARRANTY
The factory warranty is 1 year for any manufacturing fault or defect
to CE standard.

Machine price Ex Factory $67,367.00
Adaptation of UL Certification $ 6,530.00
Inch Toolholders & Cutters $20,263.00
Metric Toolholders & Cutters $13,034.00
Packaging and Handling $ 2,137.00
Door-to-Door Shipping $12,255.00
Total $121.586.00

Terms: 50% down with P.O. $ 60,793.00
2nd Payment in 45 days of 20% $ 24,317.00
3rd Payment in 45 days of 20% $ 24.317.00
Final Payment when machine is ready for pick-up $12,159.00
