USED 2004 PALACE PACKAGING – ALL-FILL INC., EXTON PA MODEL P

Palace Bottle Unscrambler

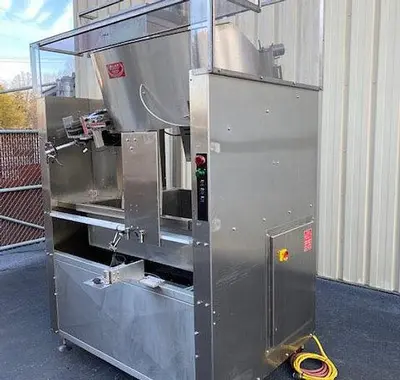

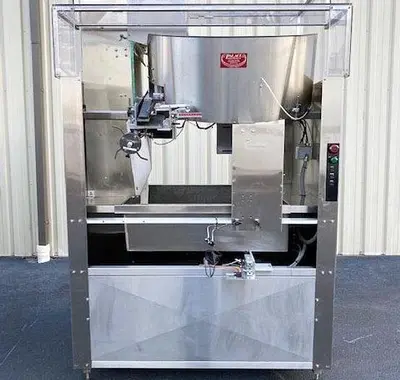

Palace Model P Bottle Unscrambler with Integrated Hopper-Elevator
Palace Packaging Model P Bottle Unscrambler is ideal for operations with limited space. It’s compact design feeds many shapes and sizes of bottles and has the smallest footprint of any unscrambling machine with an internal bulk hopper. Palace Model P uses a starwheel for consistent and accurate container orienting. Low profile system features quick, easy changeovers with fewer changeover adjustments than traditional ‘belt & hook’ unscrambler designs. Auto-reversing disc pre-sorter and multi-purpose sensors make for a trouble free and technician free operation. Bottle contact parts are constructed of FDA approved materials, primarily stainless steel.

Features
– Model P-4-H Compact Unscrambler

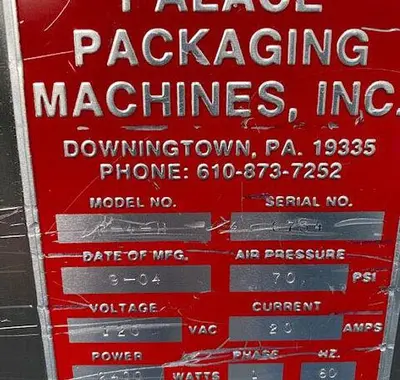

– Serial Number 6734
– Fully Automatic Empty Bottle Unscrambler
– Stainless Steel Construction
– 48” Diameter Orienting Disc Sorter Bowl

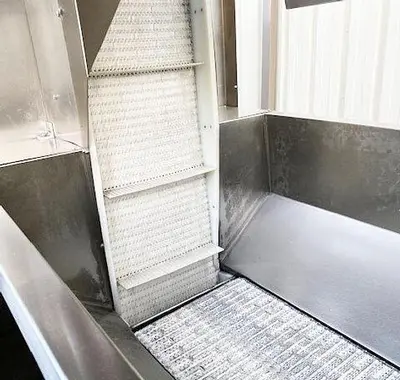

– Integrated Hopper Elevator with Live Bottom Pre-Feed, 24 Cubic Foot Capacity
– 16” Wide Cleated Hopper Elevator Belt, 3” Cleats, 15” On Center
– Container Discharge Elevation 35” (adjustable)
– Allen Bradley MicroLogix 1000 Controller
– Operator Controls with E-Stop
– Variable Speed
– Electrical 120 Volt, 1 Ph, 60 Hz, 20 Amps
– Pneumatic 50 PSI
– To include (1) new set change parts per customers sample bottles (Value $4,050.00)
– (4) Threaded Floor Leveler Legs
– Includes Operating, Maintenance & Electric Manual
– Overall Dimensions 70” L x 66” W x 110” H
