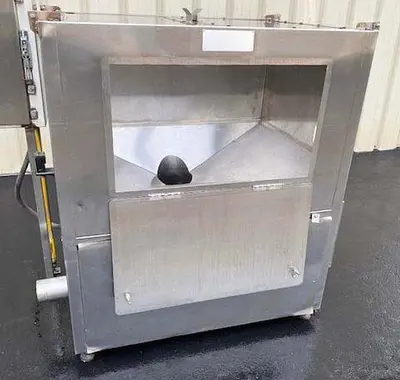

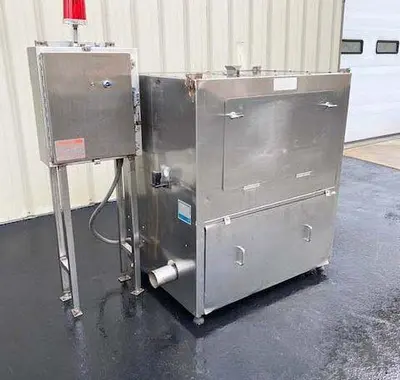

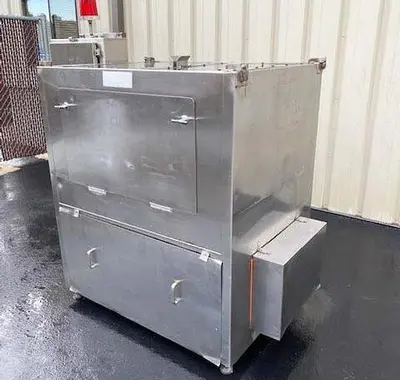

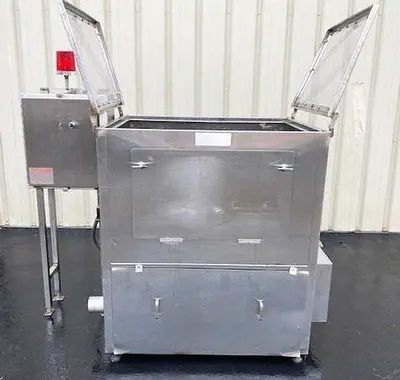

USED ALCOA JETFLOW B057380310

Alcoa Pneumatic Cap Feed System
Used Jetflow Pneumatic Cap Feeder – Cap Blower
The Alcoa Jetflow Pneumatic Cap Feed System, designed to safely convey closures to capping machines is also applicable for handling many other small parts including liners, fitments, corks, capsules, etc. The Pneumatic Parts Feeder is a compact, free standing unit with a powerful motor driven air blower to effectively transport parts through tubing at an adjustable rate to locations up to several hundred feet from the unit.

Features and Benefits:
– Stainless Steel Hopper Construction
– Cap Hopper ID 45” L x 35” W x 32” D
– Integrated Pneumatic Blower
– Lexan Hinged Top Covers
– Clean Out Door
– Uses 4” Diameter S/S Cap Discharge for Transfer Tubing
– Includes S/S 90 Degree Curve
– Stainless Steel Electric Operator Panel
– Low Cap Indicator Light

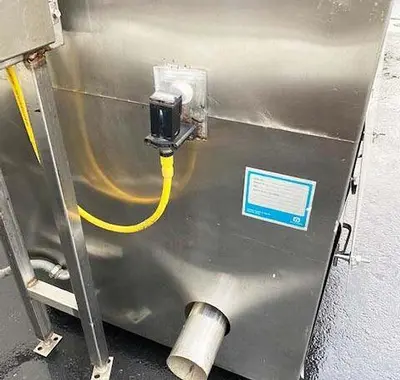

– Allen Bradley Photo Eye
– Electrical 220 Volt, 3 Ph, 60 Hz
– Threaded Leveler Legs
– Overall Dimensions 60” L x 36” W x 56” H
