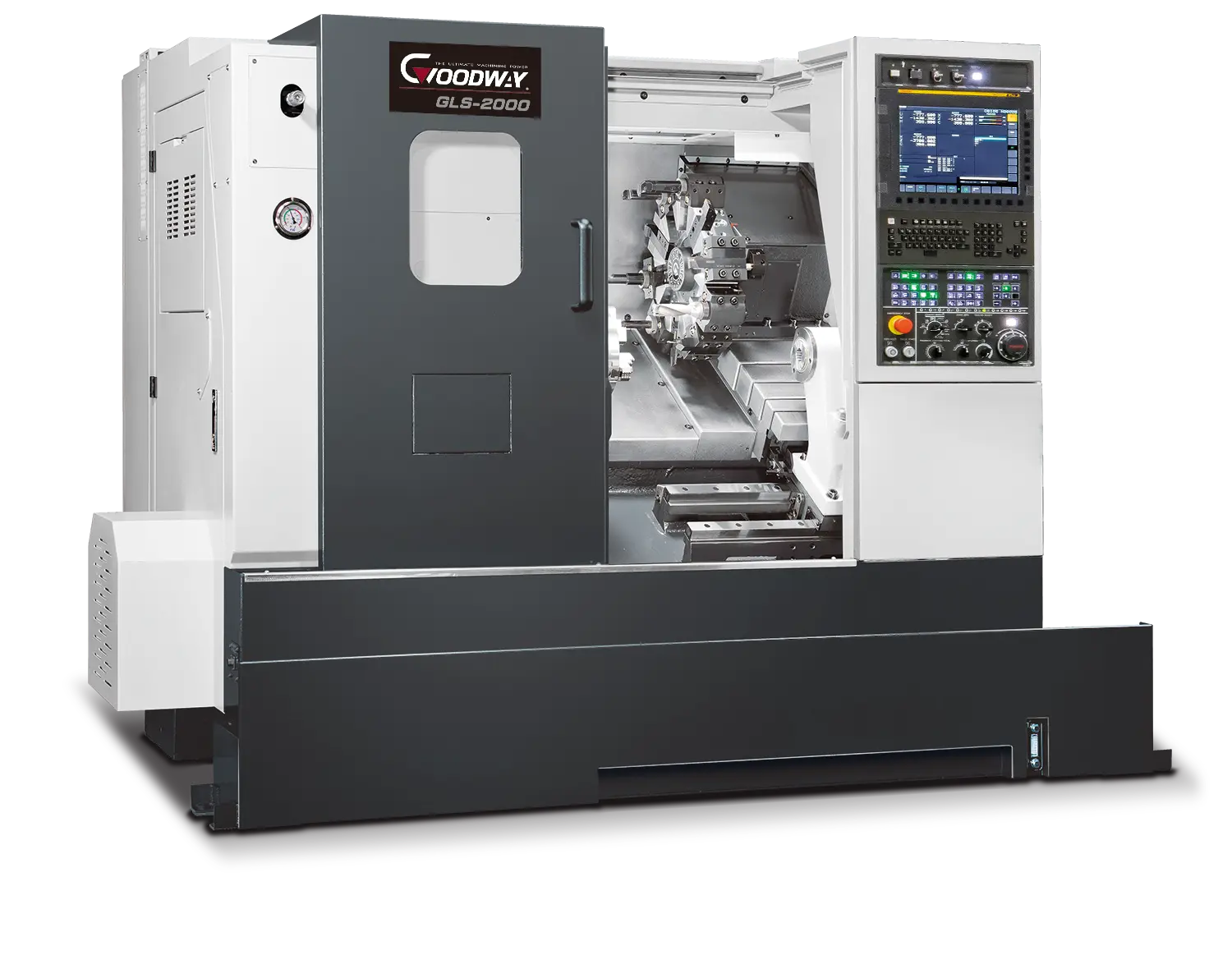

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
| Max Swing Diameter | 560 mm | 22.047" |
| Max Turning Diameter | 390 mm | 15.354" |
| Max Turning Length | 330 mm | 12.992" |
| Optional Max Turning Length | 630 | 630 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 65 mm | 2.5591" |
| Spindle Speed | 4,500 RPM | 4,500 RPM |
