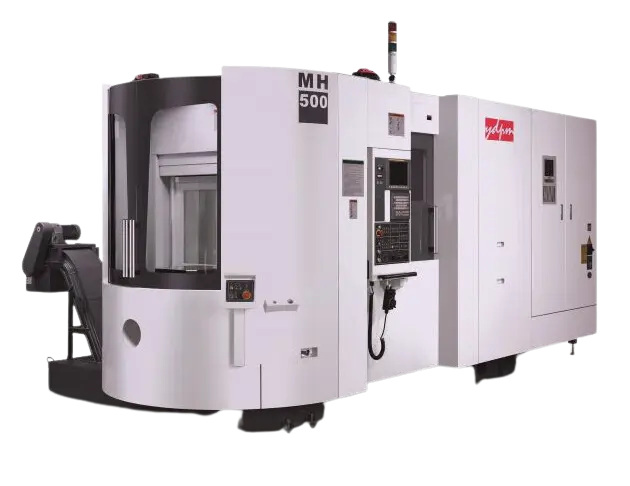

Yida's horizontal machining centers deliver exceptional precision and efficiency in manufacturing.
Explore our range of CNC horizontal machining center designed for diverse industries, offering advanced features and reliable performance.
| X | 610 mm | 24.016" |
| Y | 510 mm | 20.079" |
| Z | 610 mm | 24.016" |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | BT40 | BT40 |
Working Table Dimensions....................... STD: 500 x 500 mm
OPT: 400 x 400 mm
Max. Loading Capacity.......................... STD: 500 kg
OPT: 400 kg
B Minimum Indexing............................. STD: 0.001°
OPT: 1°
Pallet Capacity................................ 2 pcs
Max. Diameter of Workpiece..................... Ø570
Max. Height of Workpiece....................... 640 mm
Max. Travel of X/Y/Z-axis...................... 610 / 510 / 680 mm
Distance from Spindle Nose to Table Center..... 140-820 mm
Spindle Taper.................................. ISO No. 40
Spindle Speeds................................. STD: 10,000 rpm (belt-driven)
OPT: 12,000 rpm (belt-driven)
Tool Capacity.................................. STD: 40 pcs
OPT: 60
