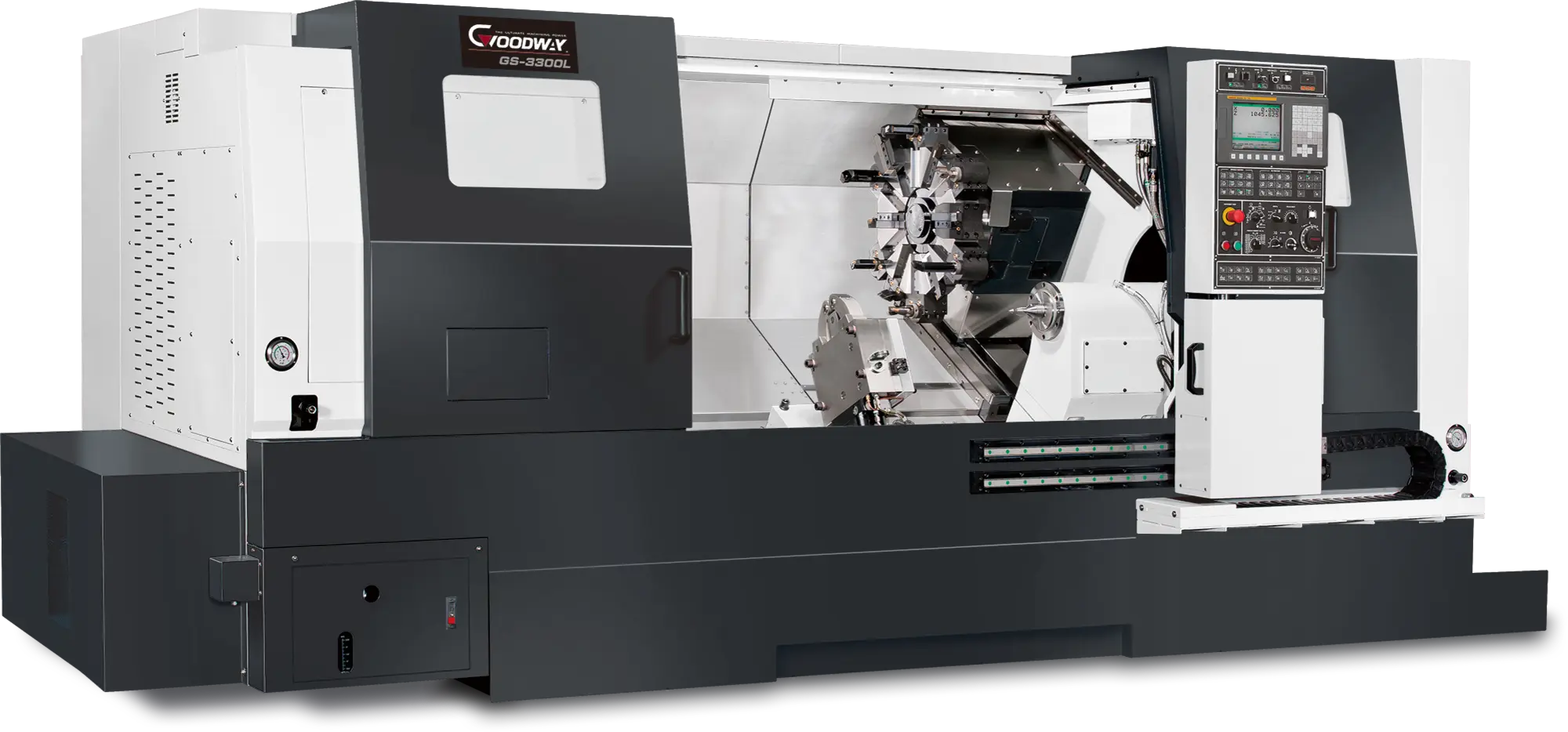

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GS Series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
* 30°low center gravity slant bed ensures high rigidity of GS-3000 series.
* X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
* Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
* X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
* 12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
* High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
| Max Swing Diameter | 630 mm | 24.803" |
| Swing Over Saddle | 800 mm | 31.496" |
| Max Turning Diameter | 570 mm | 22.441" |
| Max Turning Length | 746 mm | 29.37" |
| Standard Chuck Size | 12" | 304.8 mm |
| Standard Bar Capacity | 90 mm | 3.5433" |
| Hole through spindle | 101 mm | 3.9764" |
| Spindle Bearing Diameter | 140 mm | 5.5118" |
| Spindle Nose | A2-8 | A2-8 |
| Spindle Drive System | Direct Belt Drive | Direct Belt Drive |
| Spindle Speed | 3,000 RPM | 3,000 RPM |
| Motor Output | 18.5 kW | 24.8 hp |
| Z-Axis Travel | 780mm | 780mm |
| X-Axis Travel | 300mm | 300mm |
| X/Z Axis Rapids | 30 | 30 |
| O.D Tool Shank Size | 25 mm | 0.9843" |
| I.D Tool Shank Size | 50 mm | 1.9685" |
| CN Control | FANUC Oi -TF Plus | FANUC Oi -TF Plus |
**Please see attached brochure for the complete specification of the machine.
FANUC OI-TF PLUS
UPGRADED 12" KITAGAWA 3 JAWS CHUCK WITH ONE SET SOFT JAW
UPGRADED KITAGAWA 12" HYDRAULIC CYLINDER
FANUC ALPHA P40 SPINDLE MOTOR 18.55/22KW
BOX WAYS ON ALL AXES
RIGID TAPPING
SPINDLE ORIENTATION
FOOT SWITCH FOR CHUCK OPERATION
TOOL HOLDER & SLEEVE PACKAGE
CHIP CONVEYOR WITH AUTO TIMER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
IMPACT RESISTANT VIEWING WINDOW
LOW HYDRAULIC PRESSURE DETECTION
COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
ADVANCED AUTO LUBRICATION SYSTEM
OVER TRAVEL (SOFT LIMIT)
TRI-COLOR OPERATION STATUS SIGNAL LIGHT TOWER
HIGH INTENSITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
COMMUNICATION: RS-232 INTERFACE, ETHERNET, USB
ELECTRICAL CABINET / HEAT EXCHANGER
COMPLETE HYDRAULIC SYSTEM
FOUNDATION LEVELING & MAINTENANCE TOOL KIT
EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
