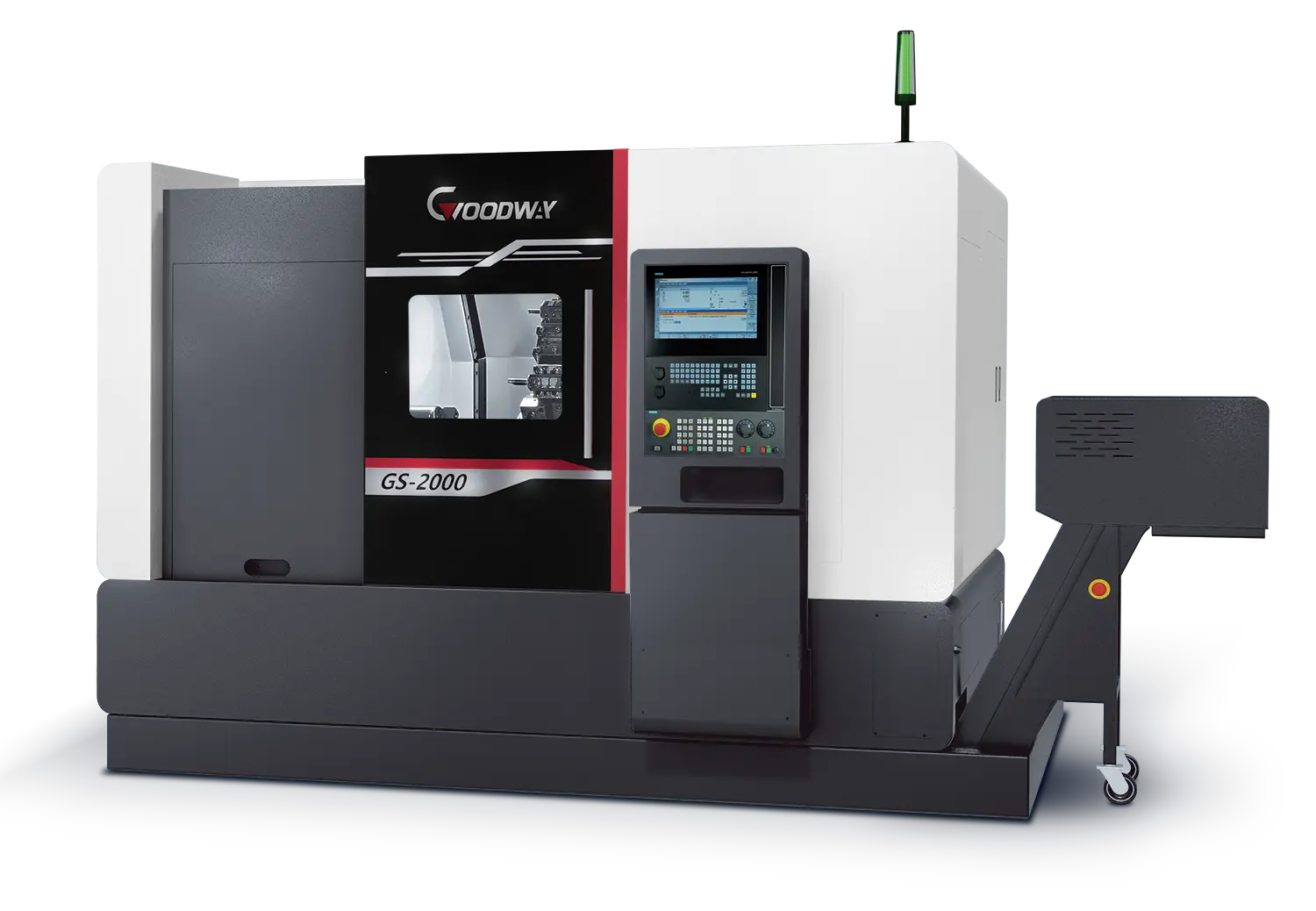

With the latest machine tools technology and powerful turning performance, GOODWAY brings you the new GS-2000 / GS-3000 series maximum performance CNC turning center. Using 2 different lengths of beds and 4 different sizes of bar capacities combined with a powerful spindle, high-speed servo indexing turret, and high-rigidity structure design, the GS-2000 / GS-3000 series becomes the best choice of machine tools for the new generation. Additionally, it can be equipped with an optional precision built-in type spindle, high torque gear type spindle, or a live tooling turret, Y-axis, and sub-spindle which can accomplish multi-tasking applications. With the perfect quality and complete tasking capabilities, the GS-2000 / GS-3000 series can easily various needs of today and tomorrow.
Key Features:
✔ 30°low center gravity slant bed ensures high rigidity of GS-3000 series.
✔ X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
✔ Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
✔ X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
✔ 12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
✔ High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
| Max Swing Diameter | 700 mm | 27.559" |
| Swing Over Saddle | 800" | 20,320 mm |
| Max Turning Diameter | 440 mm | 17.323" |
| Max Turning Length | 750 mm | 29.528" |
| Standard Chuck Size | 8" | 203.2 mm |
| Standard Bar Capacity | 51 mm | 2.0079" |
| Hole through spindle | 65 mm | 2.5591" |
| Spindle Bearing Diameter | 100 mm | 3.937" |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Speed | 4,800 RPM | 4,800 RPM |
| Live Tooling Station | 12 | 12 |
| O.D Tool Shank Size | 25 mm | 0.9843" |
| I.D Tool Shank Size | 40 mm | 1.5748" |
| Shank Size | ER 32 (Ø 20 mm) | ER 32 (Ø 20 mm) |
| Live Tooling RPM | 4,000 RPM | 4,000 RPM |
| CN Control | Fanuc 0I-TF PLUS | Fanuc 0I-TF PLUS |
FANUC OI-TF PLUS WITH 10.4" DYNAMIC GRAPHIC DISPLAY
FANUC MANUAL GUIDE-I
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
8" 3 JAWS CHUCK WITH ONE SET EACH SOFT & HARD JAWS
UPGRADED TO SPINDLE MOTOR 18.5/22KW (BELT TYPE)
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
GOODWAY 12 STATION LIVE TOOLING TURRET (4.5KW, ER32)
2 PCS X 0° LIVE TOOL HOLDER ER-32/EC- QUICKFLEX
2 PCS X 90° LIVE TOOL HOLDER ER-32/EC- QUICKFLEX
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAIL STOCK (BUILT IN CENTER: MT4)
AUTO RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPMA
RIGID TAPPING
SPINDLE ORIENTATION
BOX GUIDWAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
UPGRADED CHIP CONVEYOR HEIGHT 1200MM
AIR BLOW FOR MAIN SPINDLE CHUCK
COOLANT PISTOL WITH PIPE CONTROL BY M CODE
EXTRA 8 M CODE
UPGRADED TO 7 BARS COOLANT PUMP
OIL SKIMMER
COOLANT LEVEL SWITCH
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
