USED B&P BPA0281-101

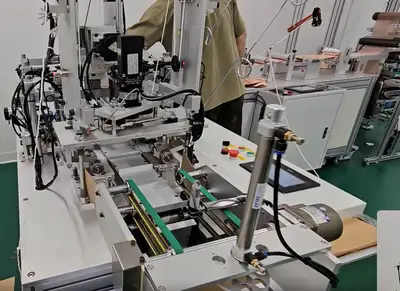

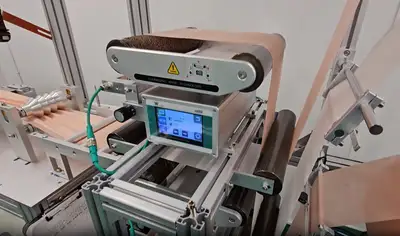

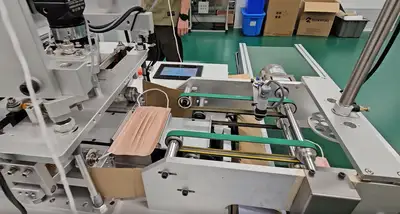

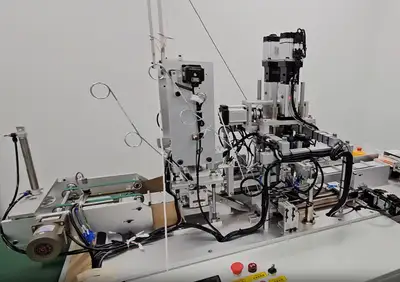

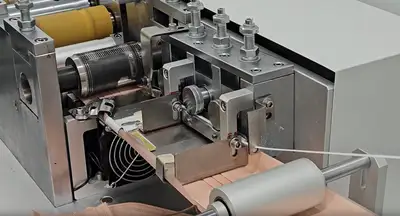

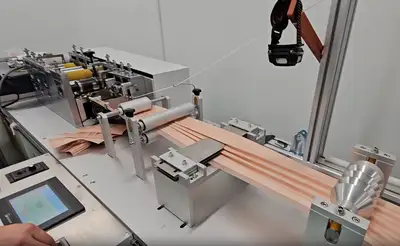

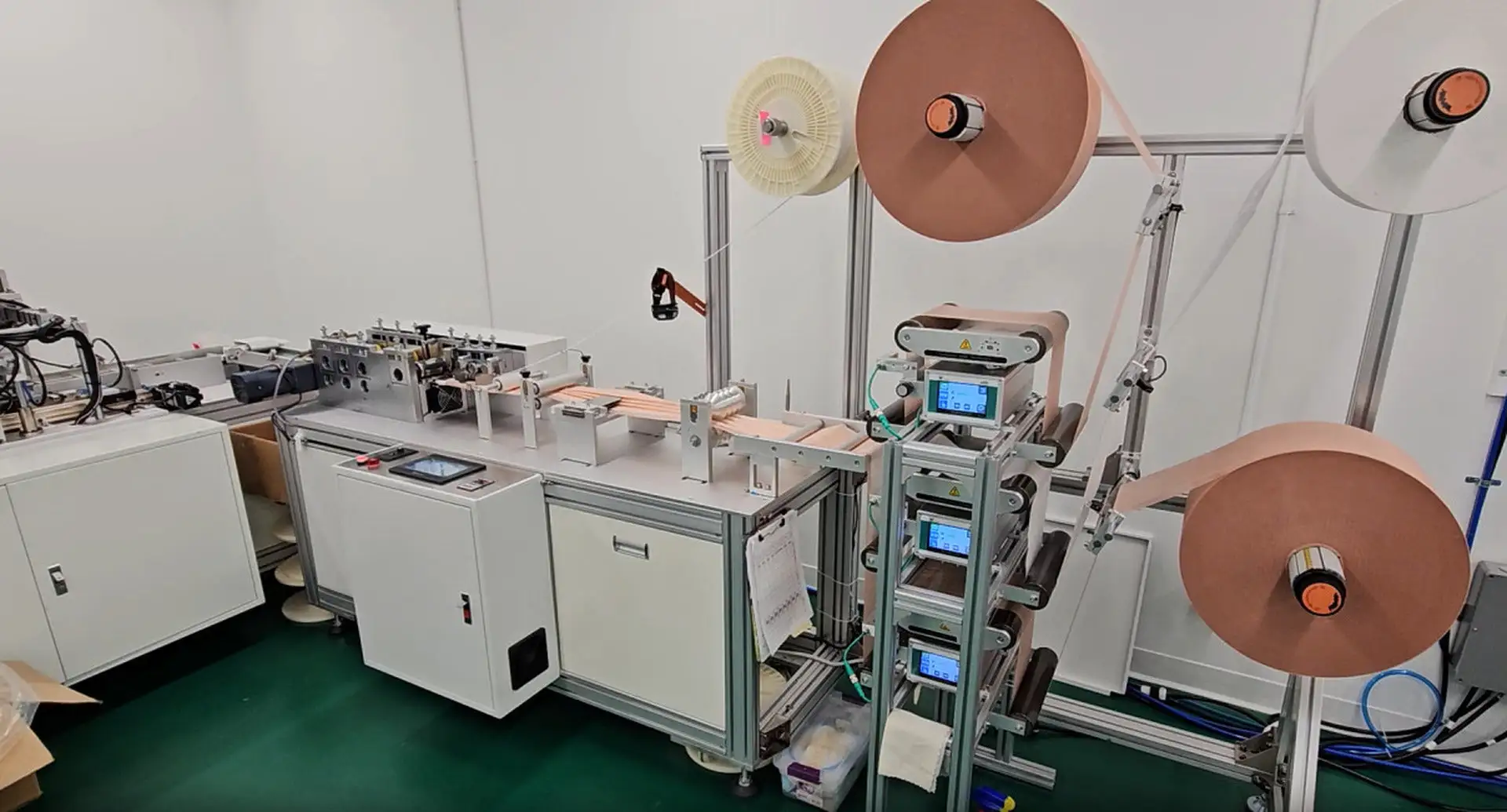

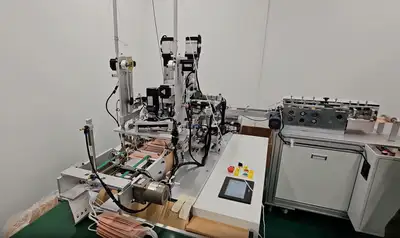

Mask Machine
Description

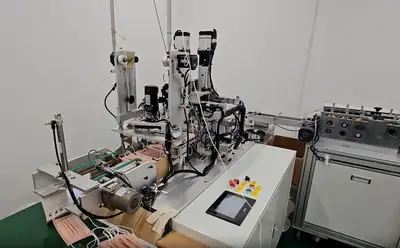

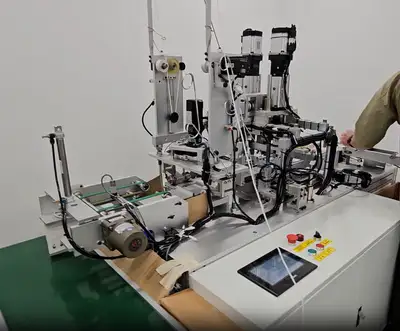

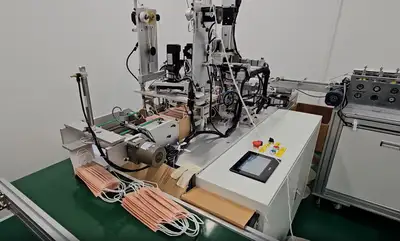

High-speed servo-controlled flat positioning mask machine designed for efficient production of flat masks.
Product Features
High-Speed and Stable Performance: The machine operates at high speed with consistent and reliable performance.
Ultrasonic Welding Technology: Produces aesthetically pleasing, hygienic, and environmentally friendly masks.

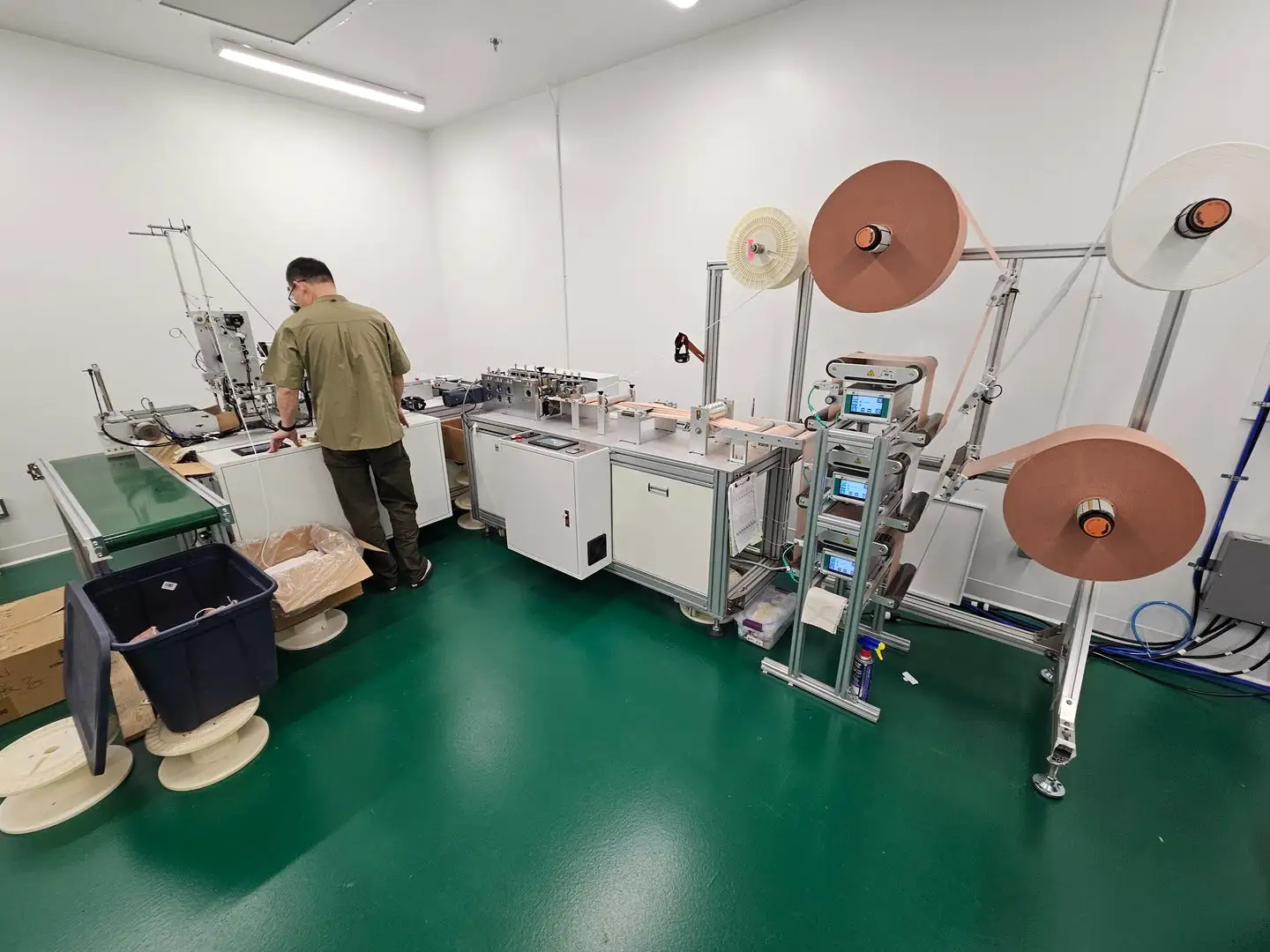

Fully Automated Production Line: Automates material feeding, nose wire insertion, edge sealing, and cutting, ensuring high efficiency and reduced labor costs.
Durable and Hygienic Construction: The frame is made of aluminum alloy, with critical components crafted from stainless steel, offering rust resistance, durability, easy cleaning, and an attractive appearance.
 Advanced Control System: Utilizes PLC programming and servo-driven technology for high automation, excellent stability, and low failure rates.
Technical Specifications
Dimensions: 4336 x 3268 x 1985 mm (L x W x H)
Weight: 1500 kg
Utility: compressed air required
Maximum System Operating Pressure: 0.7 MPa
Rated System Operating Pressure: 0.5 - 0.7 MPa
Input Voltage: 220V AC
Power: 10 kW
Operating Humidity: 20 - 80% RH (non-condensing)
Operating Temperature: 5 - 40°C
Production Speed: max.135 pieces per minute
The chip-cutting machine adopts one Huizhuan ultrasonic 15K2600W, and the earband machine is equipped with two Huizhuan ultrasonic 20K2000W.
Main Component Brands
Cylinder: Airta
Solenoid valve: Airta
Servo motor: HCFA
PLC: Siemens
Ultrasonic for chip machine: Conprofe15K2600W
Ultrasonic for earband welding: Conprofe 20K2600W
Slider: Hiwin
Sensor: Omron/ Sick
Touch screen: Weinview
Relay: Omron
Switch, Button: Schneider
Inverter: Siemens

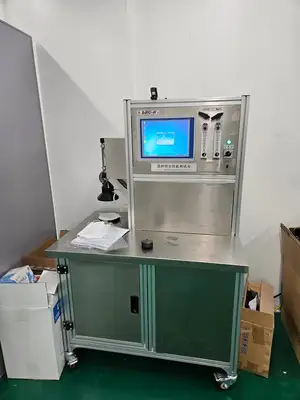

Particulate Filtration Efficiency Testing Machine
Brand: Changliu
Model: GL-CST-90
Basic Functions
Efficiency measurement (particle counting method)
Resistance measurement
Flow rate measurement (5.33 cm/s filtration velocity, 100 cm )
Air permeability measurement (adjustable between 100 Pa - 200 Pa)
Automatic storage of test data
Applicable filter media: (1) Glass fiber filter material (2) PP filter material
(3) Membrane filter material
Test particle sizes: 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 um (six channels)
Flow rate range: 0 - 100 L/min
Efficiency measurement range: 0 - 99.99%
Resistance measurement range: 0 - 1000 Pa
Aerosol source: (1) Aerosol (DEHS) (2) (2% NaCl solution)
Standard test area: 100 cm
PLC: Siemens
Power supply: 220V / 50Hz
System power consumption: < 1500 W
Dimensions: 1000 mm x 680 mm x 1520 mm // 39.37 in x 26.77 in x 59.84 in
