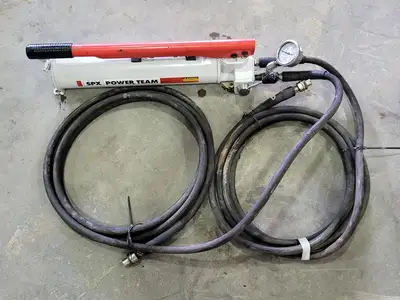

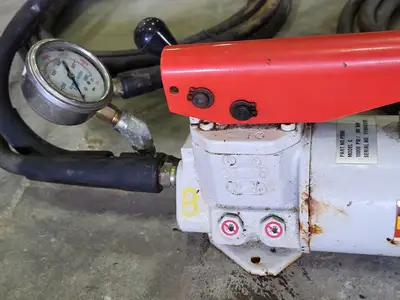

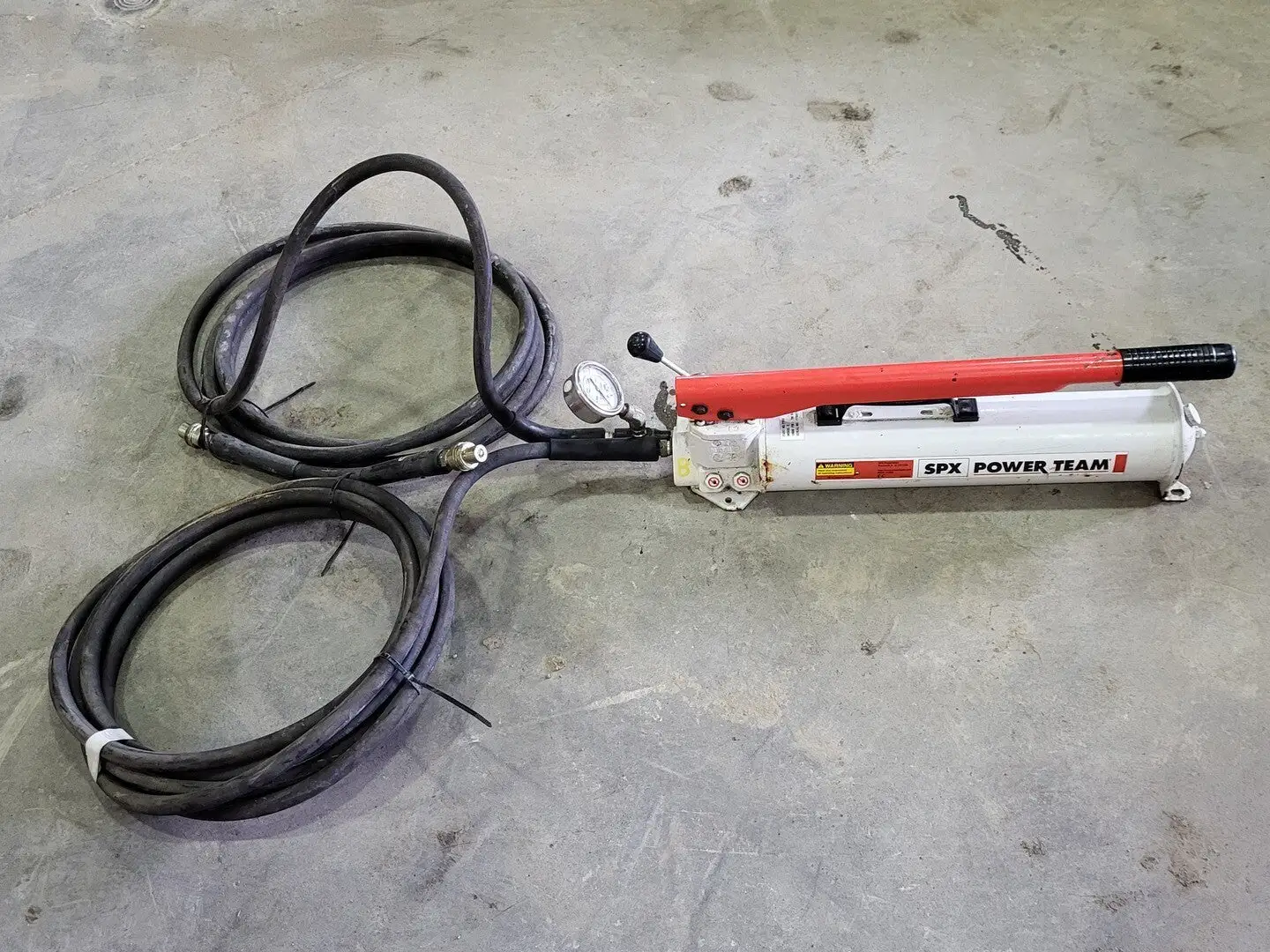

USED SPX P159D

Max. Pressure: 10000 psi
PSI: 10000
Pressure Rating (Low): 325 psi
Pressure Rating (High): 10,000 psi (700 bar)
Fluid Type: Oil
Speed (Stages): Two-Speed (low and high pressure stages)
Cylinder Type Compatibility: Double-Acting Cylinders (includes 4-way valve)
Volume per Stroke (Low Pressure): 2.6 cu-in
Volume per Stroke (High Pressure): 0.160 cu-in
Reservoir Capacity (Total): 152 cu-in
Reservoir Capacity (Usable): 137 cu-in
Oil Port Size: 3/8 in NPTF
Overall Dimensions (approx): Length 22.75 in; Width 3.88 in; Height 7.75 in
Weight: 27.9 lb
Construction/Features: Rugged all-metal construction; formed heavy-duty handle; fill-cap seal safety valve; inboard relief valve; large valve knob for fine control
