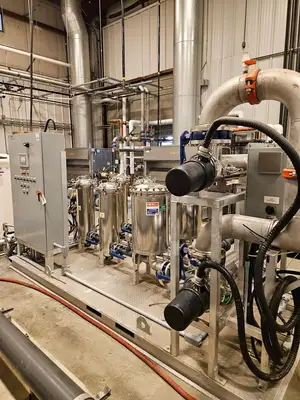

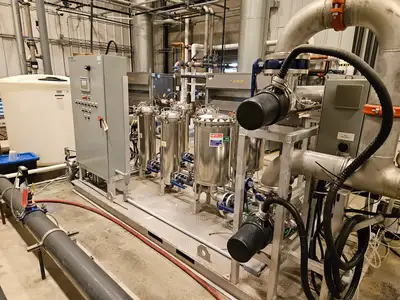

USED 2011 CORIX UV-200-2

The two Trojan UV reactor system uses UV to inactivate and neutralize disease-causing microorganisms like viruses, bacteria, and protozoa in water, preventing them from reproducing and causing illness Includes complete PLC panel.

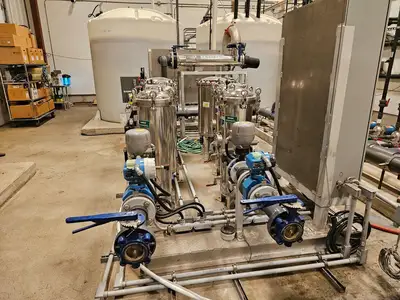

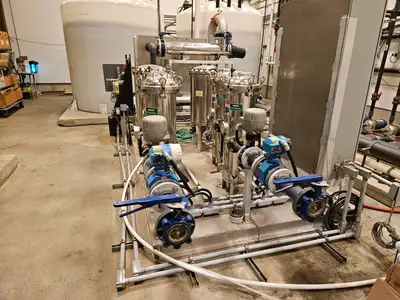

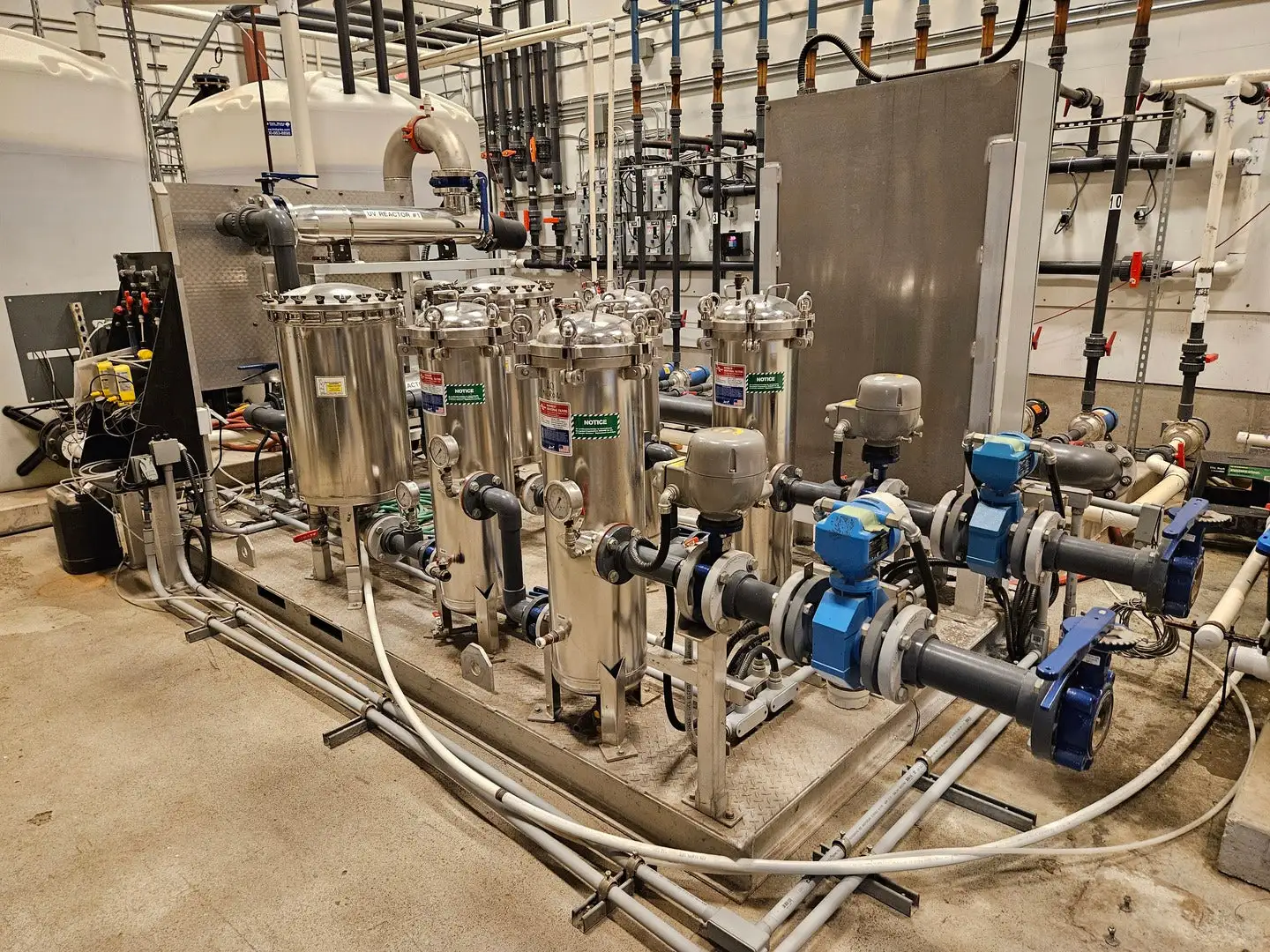

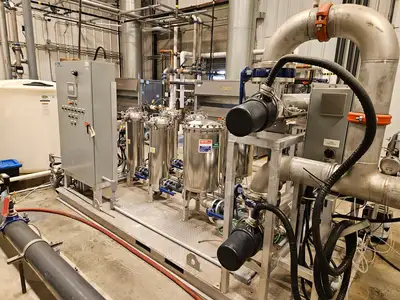

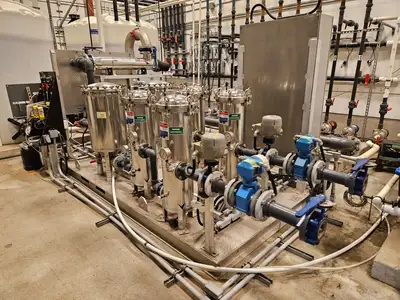

Corix UV Water Treatment Trains x 2
1 duty, 1 standby
Each train is rated for 100 US gpm
Each Train consists of the following:
Influent Flow Control
1 x 80 mm Keystone AR2-805 butterfly valve w/ EP12 electric modulating actuator

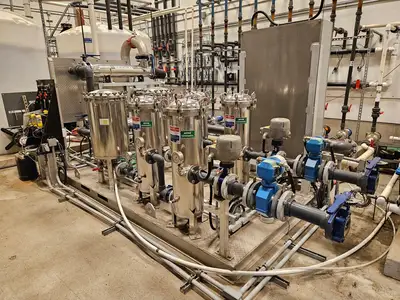

Cartridge Filters
Cartridge Filter Housing
2 x Harmsco Hurricane 1X170FL housing, for 20 and 10 micron cartridges
1 x Harmsco HIF 75 housing, for 5 micron cartridges
Filter Cartridge
1 x 20 micron, Harmsco HC/170-20 filter cartridge
1 x 10 micron, Harmsco HC/170-10 filter cartridge
75 x 5 micron, Harmsco 801-5 filter cartridge
Isolation Valves
2 x 50 mm Keystone AR2-805 butterfly valve with lever handle
1 x 80 mm Keystone AR2-805 butterfly valve with lever handle
UV System

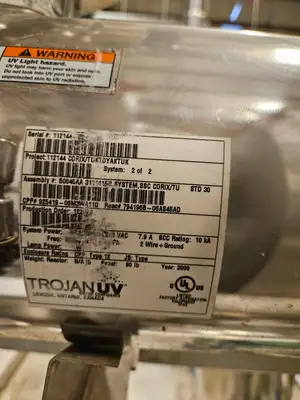

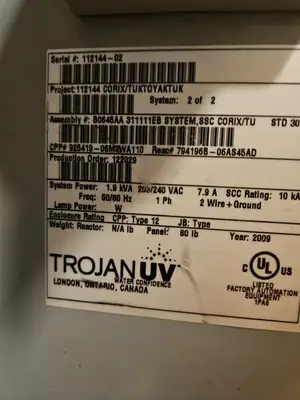

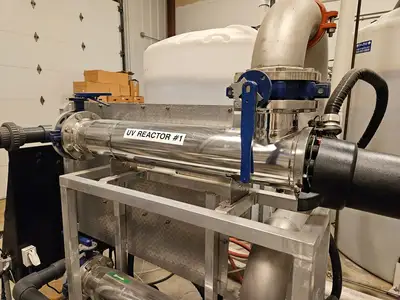

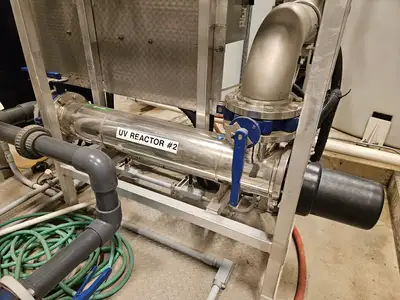

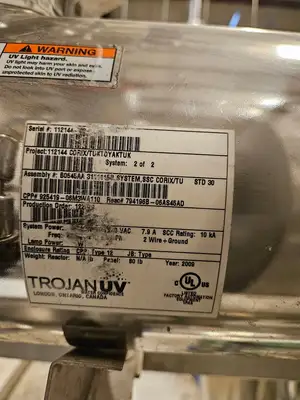

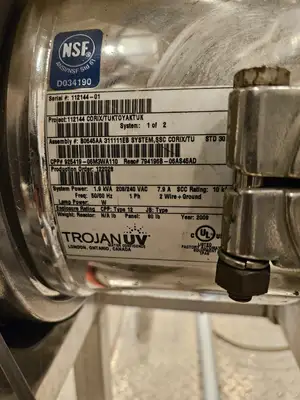

1 x Trojan Technologies UV Swift SC B06 reactor
Maximum operating pressure: 150 psig
Comes with:
Automatic quartz sleeve wiper

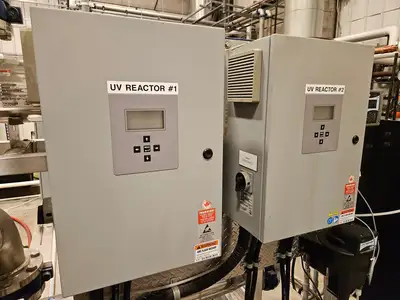

PLC control panel with display
Dry contacts & 4-20 mA output
Isolation Valves
2 x 150 mm Keystone 612-100 butterfly valve with lever handle
Instrumentation
Flow
2 x 80 mm E+H Promag 10W magnetic flow meter (integral mount, 4-20 mA output)
Chlorine Analyser

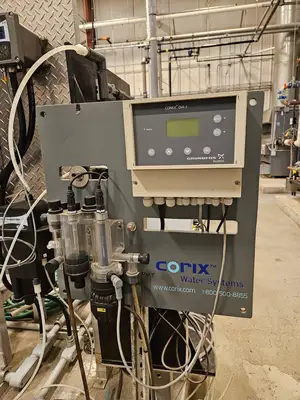

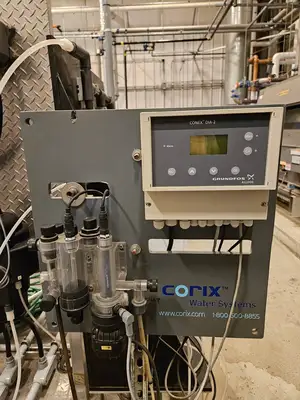

1 x Grundfos Alldos Conex DIA-2 two parameters controller w/ AquaCell chlorine measuring cell
Turbidity

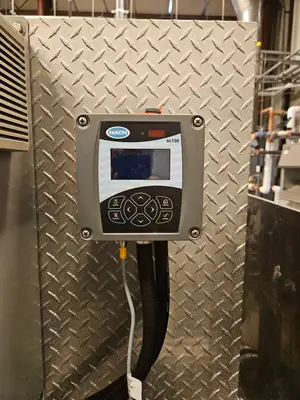

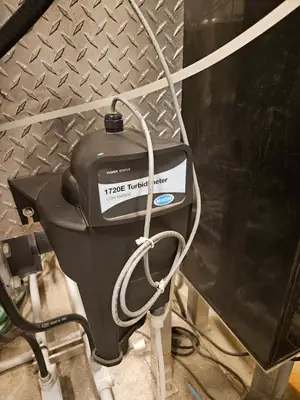

1 x Hach 1720 E turbidimeter with SC200 controller
1 x Hach Formazin turbidity calibration kit
1 x ASCO Series 8210 solenoid control valve
Pressure
3 x Wika A-10 pressure transmitter w/ 100 mm Wika Model 21X.53 bourdon tube, range: 0-60 psi
4 x Pressure gauge, 100 mm Wika Model 21X.53 bourdon tube, range: 0-60 psi
Level
1 x Siemens The Probe level transmitter (Equalization tank)
Sampling
2 x 6 mm Chemline PVC ball valve
Service Water
1 x ASCO Series 8210 solenoid control valve

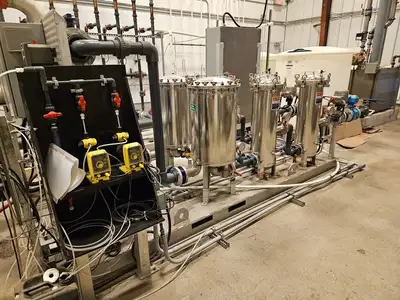

Chemical System - Calcium Hypochlorite

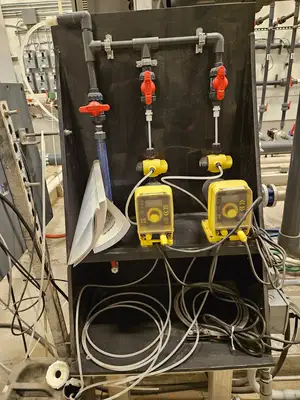

1 x LMI electronic metering pump, model AA941-358S1, 2.2 L/h @ 250 psi, 4-20 mA input (w/ multifunction valve)
1 x Primary Fluid Systems ACCUDRAW PVC calibration cylinder (100 mL, 6 L/h)
1 x 15 mm PVC ball valve
25 ft x 8 mm flexible chemical tubing
1 x Aluminum pump stand

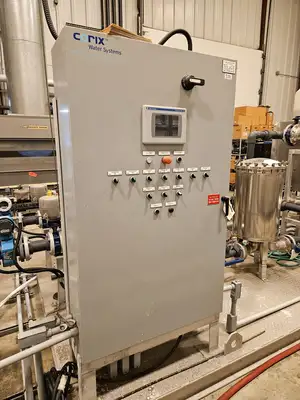

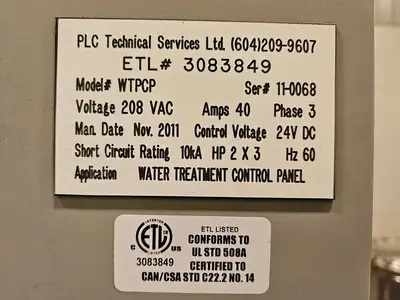

Control Panel
1 x Corix Standard Panel
Allen Bradley PLC
Nema 12 Enclosure
CSA approved
Local H/O/A controls
Piping
1 lot PVC sch. 80 piping
