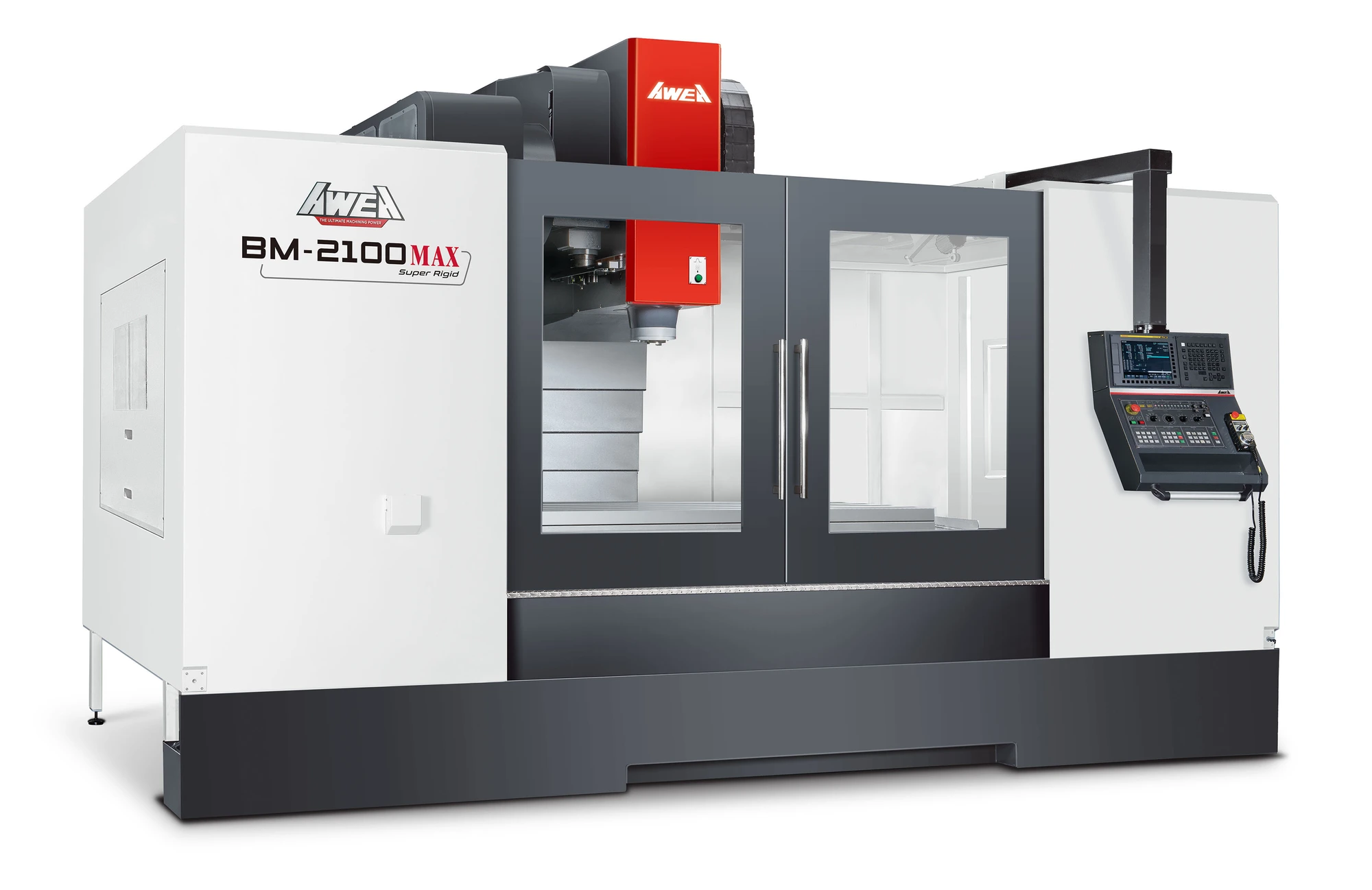

With the advanced R&D technology and strict quality control, BM series is specially made for heavy cutting machining needs, which have rigid and stable machine structure for extensive application.
• Depends on the different machining requirements. We provide various modular spindle combinations to achieve optimal cutting performance.
• 3 axes are equipped with box ways, which is precisely grinded and thoroughly heat treated, especially suitable for heavy cutting.
• The Finite Element Method (FEM) provides optimal machine design and lightweight structure advantage while ensuring high rigidity of machine.
• Delta Wide span column construction provides superior cutting stability. The headstock remains stable even under high-speed movement.
• Working table with double ribbed design to enhance the structure strength, while securing the table will not deform even load heavily for a long time.
• All the sliding or fix surface of machine, bed, column, saddle, headstock, and ball-screw holder are hand scraped to provide excellent assembly precision and load distribution, ensuring long term, accuracy.
• All series are equipped with 1 - 5 screw type chip auger according to the machine size, thus, to provide high chip clearing efficiency.
| X-Axis Travel | 2,100 mm | 82.677" |
| Y-Axis Travel | 1,000 mm | 39.37" |
| Z-Axis Travel | 1,000 mm | 39.37" |
| Table Size-X | 2,300 mm | 90.551" |
| Table Size-Y | 1,000 mm | 39.37" |
| Table Load Capacity | 3,000 kg | 6,613.9 lb |
| Spindle Center to Column | 1,100 mm | 43.307" |
| Max Spindle Nose to Table | 1,200 mm | 47.244" |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | CAT50 | CAT50 |
| X/Y Axis Rapid Feed Rate | 15 m/min. | 590.6 in/min. |
| Z-Axis Rapid Feed Rate | 12 m/min. | 472.4 in/min. |
| ATC | 40 | 40 |
| Max. Tool Length | 250 mm | 9.8425" |
| Max. Tool Weight | 15 kg | 33.1 lb |
| CN Control | Fanuc 0i-MF | Fanuc 0i-MF |
| # Axis | 3 | 3 |
FANUC 0I-MF PLUS WITH 10.4” LCD SCREEN
FANUC AICCII (400 BLOCK LOOK-AHEAD) + 2GB DATA SERVER
6,000 RPM GEAR DRIVEN SPINDLE, CAT50 DUAL CONTACT
SPINDLE MOTOR 30/35 HP (FANUC ALPHA 22 MOTOR)
40 TOOL ATC MAGAZINE (ARM TYPE)
COOLANT THROUGH SPINDLE 1000 PSI
AIR THROUGH SPINDLE
CATERPILLAR TYPE CHIP CONVEYOR
CHIP WASH DOWN COOLANT
3-AXIS AUTO LUBRICATION SYSTEM
3-AXIS BALL SCREW PRETENSION
SPINDLE AIR CURTAIN
SPINDLE OIL CHILLER
COOLANT NOZZLES AROUND SPINDLE
FRONT SIDE CHIP AUGER
Y-AXIS CHIP AUGERS
ROOF ENCLOSED SPLASH GUARD
AIR BLOW SYSTEM
CENTRALIZED AUTOMATIC LUBRICATION ( X / Y / Z )
AIR TANK FOR TOOL MAGAZINE
LUBRICANT RECOVERING SYSTEM
OIL SKIMMER
HEAT EXCHANGER FOR ELECTRIC CABINET
COOLANT EQUIPMENT
AIR GUN & COOLANT GUN
ALARM LIGHT & WORK LIGHT
2 EXTRA LED LIGHT INSIDE WORKING AREA
AUTOMATIC POWER-OFF SYSTEM
TOOL BOX & FOUNDATION BOLT KIT
