New | Build-to-Order

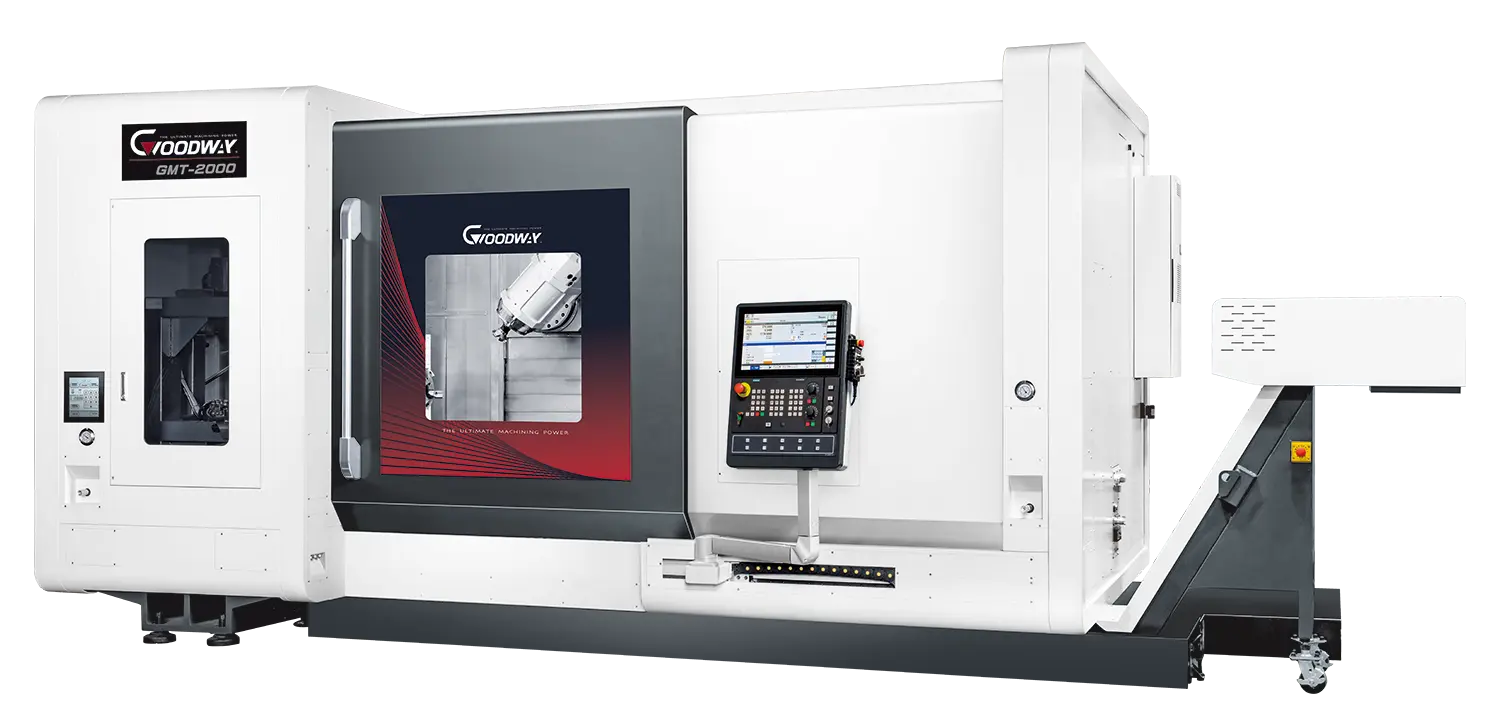

NEW GOODWAY GMT-2000 C

Ontario, Canada
444Listings|8Followers
Overview
CNC Lathes

Explore the new GOODWAY GMT-2000 A Mill-Turn Center for precise machining with a max turning diameter of 660mm and lengths up to 2500mm. Advanced capabilities for your production needs.

Looking for advanced processing equipment, with both high productivity and processing capacity for complex workpieces, as well as excellent cost performance. The seemingly impossible task will be fully achieved by GOODWAY GMT-2000 series.

The GMT-2000 series integrates the functional characteristics of turning centers and machining centers into one. It has the highest 9-axis control and 5-axis simultaneous machining capabilities. It can not only efficiently complete various complex shapes of workpieces, but also easily overcome the need for heavy cutting. This is a versatile model that can be used in all industries.

Specs
Max Swing Diameter
660 mm
25.984"
Max Turning Diameter (Milling Spindle)
660 mm
25.984"
Max Turning Length
1,020 mm
40.158"
Optional Max Turning Length
1,520 | 2,500 mm
1,520 | 2,500 mm
Main Turning Spindle Chuck Size
12"
304.8 mm
Bar Capacity
102 mm
4.0158"
Main Turning Spindle Speed
3,200 RPM
3,200 RPM
Milling Spindle
Taper: HSK T63 | Speed: 12,000 RPM
Taper: HSK T63 | Speed: 12,000 RPM
Standard ATC
40
40
Optional ATC
80 | 120
80 | 120
CN Control
Fanuc | Mitsubishi | Siemens | Fagor
Fanuc | Mitsubishi | Siemens | Fagor
