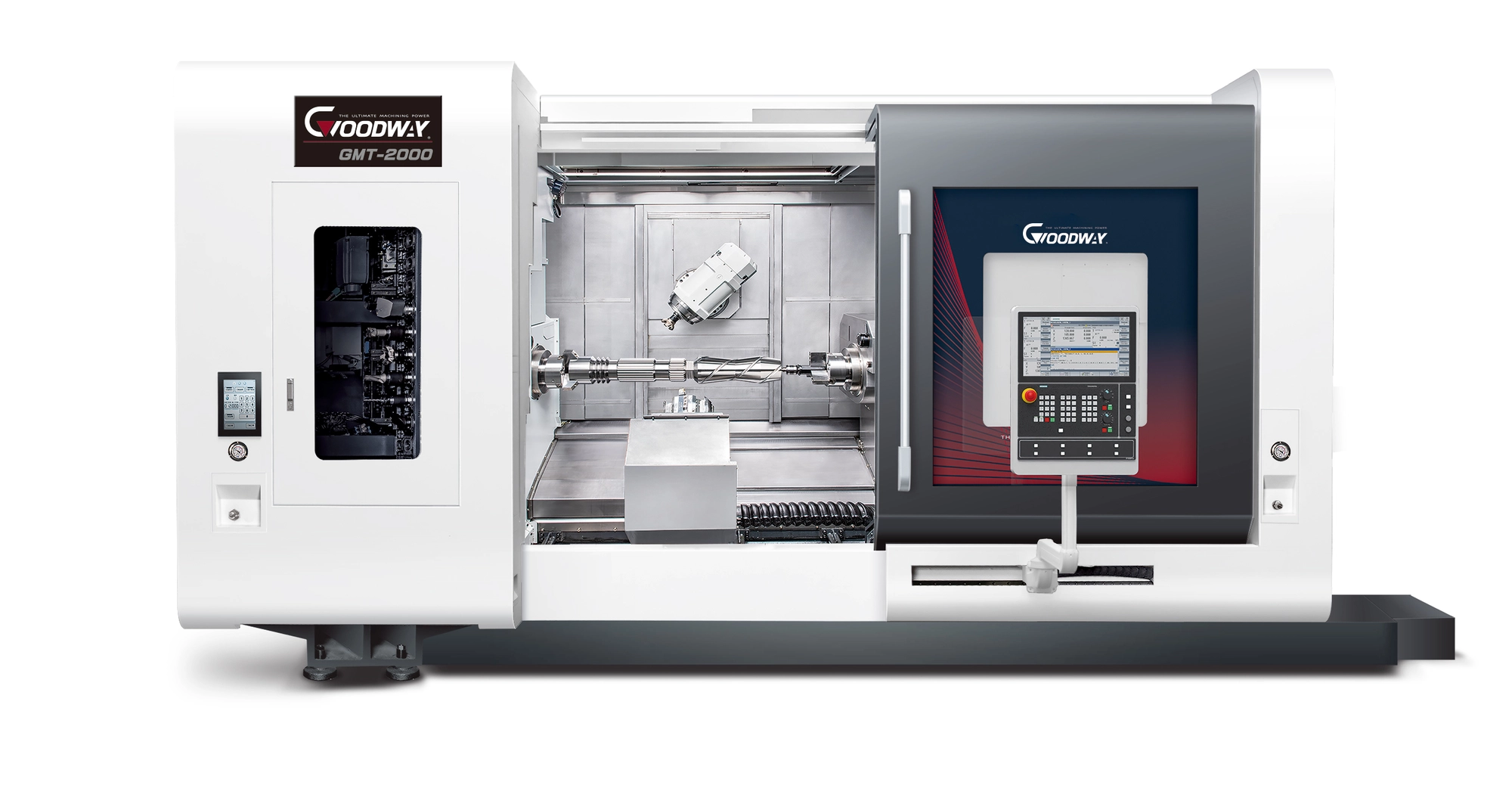

Explore the new GOODWAY GMT-2000 A Mill-Turn Center for precise machining with a max turning diameter of 660mm and lengths up to 2500mm. Advanced capabilities for your production needs.
Looking for advanced processing equipment, with both high productivity and processing capacity for complex workpieces, as well as excellent cost performance. The seemingly impossible task will be fully achieved by GOODWAY GMT-2000 series.
The GMT-2000 series integrates the functional characteristics of turning centers and machining centers into one. It has the highest 9-axis control and 5-axis simultaneous machining capabilities. It can not only efficiently complete various complex shapes of workpieces, but also easily overcome the need for heavy cutting. This is a versatile model that can be used in all industries.
| Max Swing Diameter | 660 mm | 25.984" |
| Max Turning Diameter (Milling Spindle) | 660 mm | 25.984" |
| Max Turning Length | 1,020 mm | 40.158" |
| Optional Max Turning Length | 1,520 | 2,500 mm | 1,520 | 2,500 mm |
| Main Turning Spindle Chuck Size | 10" | 254 mm |
| Bar Capacity | 80 mm | 3.1496" |
| Main Turning Spindle Speed | 3,800 RPM | 3,800 RPM |
| Milling Spindle | Taper: HSK T63 | Speed: 12,000 RPM | Taper: HSK T63 | Speed: 12,000 RPM |
| Standard ATC | 40 | 40 |
| Optional ATC | 80 | 120 | 80 | 120 |
| CN Control | Fanuc | Mitsubishi | Siemens | Fagor | Fanuc | Mitsubishi | Siemens | Fagor |
