New | Build-to-Order

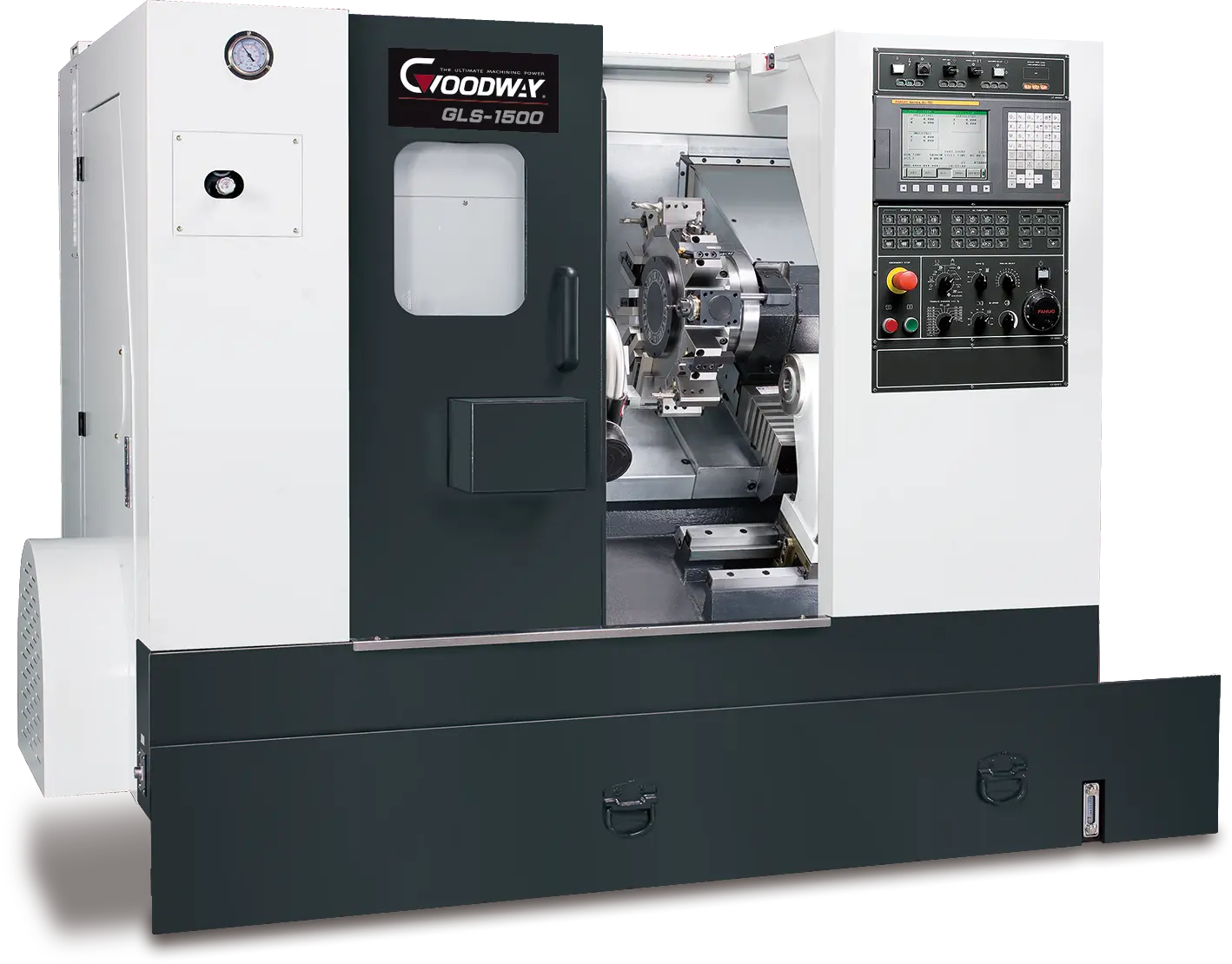

NEW GOODWAY GLS-1500

Ontario, Canada
430Listings|7Followers
Overview
CNC Lathes

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS-1500 series high-speed CNC turning center. Using 2 types of bed combined with super rigidity, high-speed turning capability and compact size provides you with super efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis and sub-spindle can work on turning, milling, drilling tasks at the same time to increase the output capacity with high end value to meet your needs of today and tomorrow.

• 30˚ slant-bed design provides smooth chip disposal and easier operator access.

• Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.

• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.

• The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.

Specs
Max Swing Diameter
560 mm
22.047"
Max Turning Diameter
390 mm
15.354"
Max Turning Length
330 mm
12.992"
Optional Max Turning Length
630
630
Chuck Size
6"
152.4 mm
Bar Capacity
51 mm
2.0079"
Spindle Speed
6,000 RPM
6,000 RPM
