New | Build-to-Order

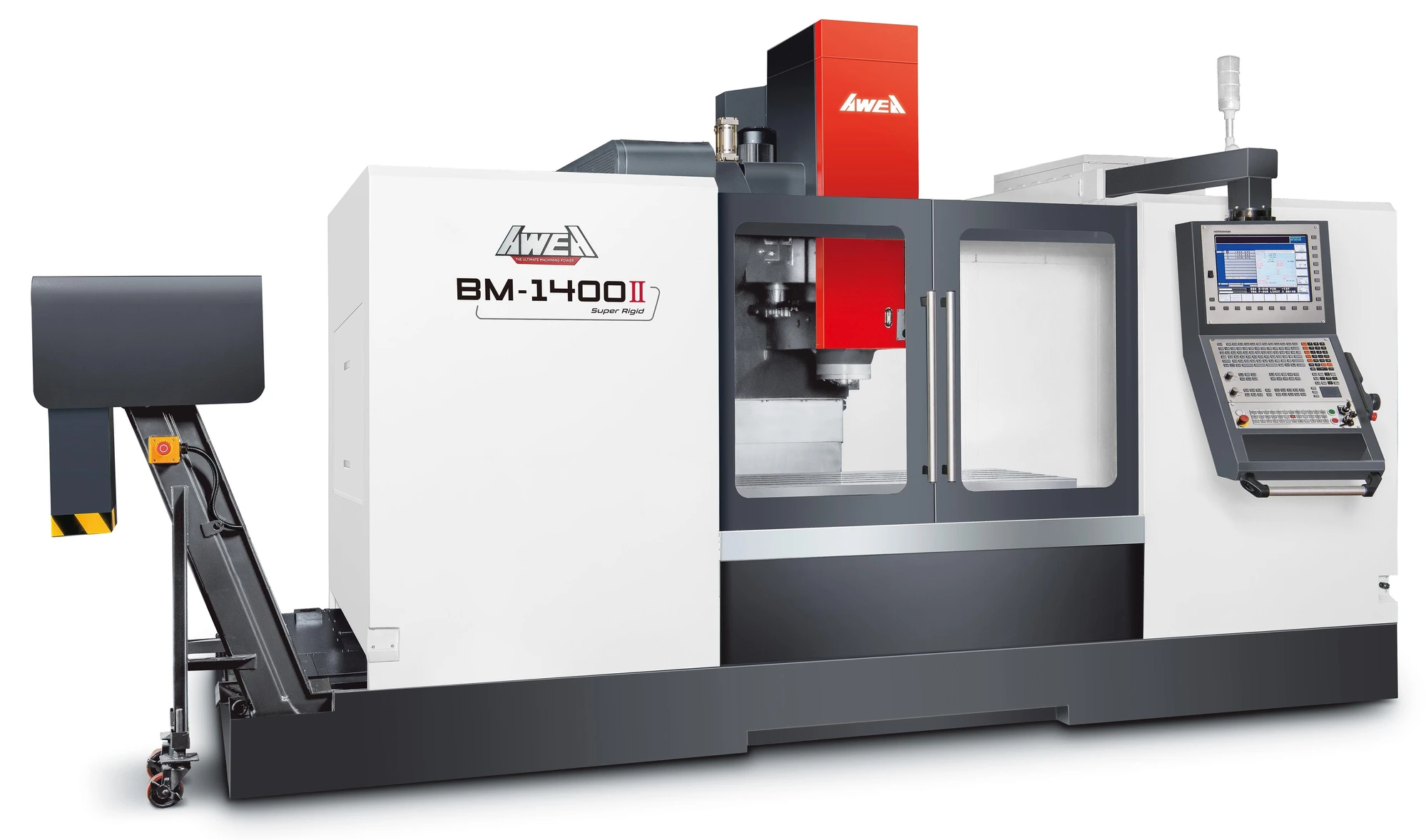

NEW AWEA BM-1400II

Ontario, Canada
504Listings|10Followers
Overview
Vertical Machining Centers

Discover precision with the new AWEA BM-1400II C-Frame Vertical Milling Center – top-tier manufacturing for your sophisticated machining needs.

Specs
X-Axis Travel
55.118"
1,400 mm
Y-Axis Travel
25.591"
650 mm
Z-Axis Travel
24.016"
610 mm
Table Size-X
59.055"
1,500 mm
Table Size-Y
25.591"
650 mm
Table Load Capacity
3,086.5 lb
1,400 kg
Spindle Center to Column
27.953"
710 mm
Max Spindle Nose to Table
28.937"
735 mm
Spindle Speed
10,000 RPM
10,000 RPM
Optional Spindles Speed
6,000 | 8,000 | 12,000 | 15,000 RPM
6,000 | 8,000 | 12,000 | 15,000 RPM
Spindle Taper
CAT40
CAT40
Optional Spindle Taper
CAT50
CAT50
ATC
24
24
Optional ATC
30 | 40 | 60
30 | 40 | 60
CN Control
Fanuc | Mitsubishi | Heidenhain | Fagor
Fanuc | Mitsubishi | Heidenhain | Fagor
# Axis
3
3
